SI number

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

01 11 99 (438)

Consisting of:

8 = 0494397 Ring

NOTE: (insert ring) For use with repair instructions only. For insertion in spring retainer ring 31 3 354. Model series: E87

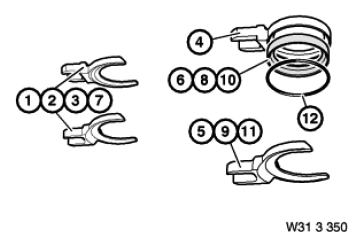

Fig 1: Identifying Holder (313350)

Courtesy of BMW OF NORTH AMERICA, INC.

9 = 0494624 Ring

NOTE: (spring retainer ring) For use with repair instructions only.

4 = 0493568 Ring

NOTE: (spring retainer ring) For use with repair instructions only.

6 = 0493570 Ring

NOTE: (centering ring) For use with repair instructions only.

7 = 0494053 Holder

NOTE: (spring retainer (2 pieces)) For use with repair instructions only.

10 = 0494625 Holder

NOTE: (spring retainer) For use with repair instructions only.

= 0494804

11 = 0494804 Holder

NOTE: (spring retainer) For use with repair instructions only.

1 = 0493561 Holder

NOTE: (spring retainer (2 pieces)) For use with repair instructions only.

2 = 0493566 Holder

NOTE: (spring retainer (2 pieces)) For use with repair instructions only.

3 = 0493567 Holder

NOTE: (spring retainer (2 pieces)) For use with repair instructions only.

5 = 0493569 Holder

NOTE: (spring retainer) For use with repair instructions only.
