SI number

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

01 14 96 (105)

Consisting of:

6 = 0494208 Bush

NOTE: For fitting the radial shaft seal on the selector shaft (emergency release) Transmission: GA6 HP26Z

1 = 0491782 Bush

NOTE: (Threaded bush)

2 = 0491783 Nut

NOTE: (Union nut)

3 = 0491784 Bush

NOTE: For transmission without positioning switch Transmission: A4S 310R

4 = 0491785 Nut

5 = 0491786 Sleeve

NOTE: (Sliding sleeve (5 pieces)) Transmission: A4S 310R

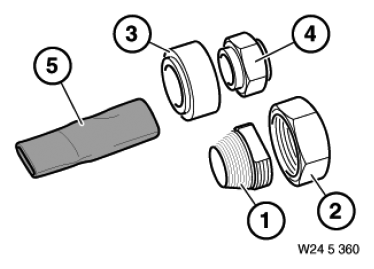

Fig 1: Identifying Device (245360)

Courtesy of BMW OF NORTH AMERICA, INC.
