SI number

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

01 05 97 (181)

Consisting of:

7 = 0493804 Blade

NOTE: Transmission: A5S 360R

1 = 0491732 Basic body

NOTE: (basic body)

2 = 0491733 Blade

NOTE: Transmission: A5S 440Z, GA6HP26Z (N62)

3 = 0491734 Blade

NOTE: (Blade) Gearbox: A4S 310R and A5S 390G

4 = 0491735 Blade

NOTE: Transmission: A5S 310Z, A5S 560Z, A5S 300J and A5S 325Z

5 = 0491736 Blade

NOTE: Transmission: A5S 560Z, GA6 HP26Z (M67), GA6 HP32Z (N73)

6 = 0493180 Plate

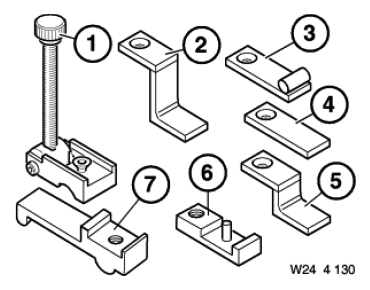

Fig 1: Identifying Tool (244130)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: (Counter-support plate)

8 = 0496742 Blade

NOTE: For securing converter during removal and installation of transmission.

In conjunction with: 24 4 131
