SI number

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

01 22 97 (239)

Consisting of:

1 = 0493157 Plate

NOTE: (Pressure plate) For removing and installing the spring cup

2 = 0493158 Spindle

NOTE: (Spindle with pressure plate) Spindle M14x1.5, nut M14, pressure plate and washer/For removing and installing the spring cup

3 = 0493159 Pin

NOTE: (Guide pin (2 pieces)) For fixing the gaskets and the intermediate plate on the intermediate case

4 = 0493160 Bush

NOTE: (Slip bush) For installing the piston in the cylinder of the intermediate plate

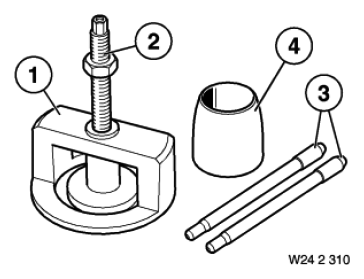

Fig 1: Identifying Device (242310)

Courtesy of BMW OF NORTH AMERICA, INC.
