SI number

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

01 06 92 (509)

Consisting of:

5 = 0495439 Adapter

NOTE: Replaced by 24 0 205 (0 495 492)

3 = 0491655 Spindle

NOTE: Replaced by 24 0 184 (0 491 656)

1 = 0491653 Frame

NOTE: (Main frame)

2 = 0491654 Spindle

NOTE: (Pressure spindle with star handle)

4 = 0491656 Spindle

NOTE: (spindle, long (2 pieces))

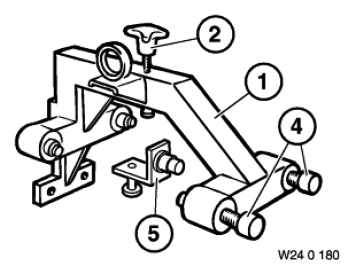

Fig 1: Identifying Fixture (240180)

Courtesy of BMW OF NORTH AMERICA, INC.
