0491644 240150 Clip MW

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Note: (Mounting bracket) For mounting the transmission on the assembly stand

Consisting of:

6 = 0493913 Spindle

NOTE: With synchronizing key, transmission: All

3 = 0491645 Shaped part

NOTE: (Shaped part) For mounting the transmission/transmissions: A5S 310Z

2 = 0491646 Frame

NOTE: (Main frame)

3 = 0491647 Spindle

NOTE: (Spindle with rotary handle)

3 = 0491648 Bolt

NOTE: (Mounting bolts)

3 = 0491649 Bush

NOTE: (Spacer bush for spindle) Transmissions: A4S 310R

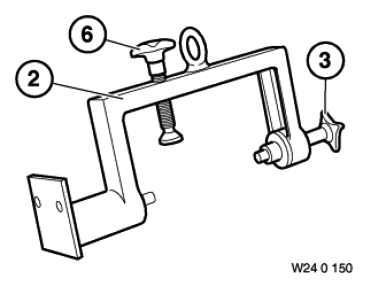

Fig 1: Identifying Clip (240150)

Courtesy of BMW OF NORTH AMERICA, INC.
