Storage Location

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

B24

B23

Individual

Consisting of:

1 = 0491619 Hose

NOTE: (Line) Pressure hose 1.7 m, connection M12x1.5 - M14x1.5 outer thread/For checking the different converter pressures/transmission: A4S 310R, A4S 270R

2 = 0491620 Connection

NOTE: (Connection) For checking the main pressure (3 HP 22, A5S 310Z) and clutch A (ZF transmission)/transmission: 3 HP 22, A5S 310Z, A5S 560Z and all ZF transmissions

3 = 0491621 Connection

NOTE: (Connection) Pipe bend, 145 mm, stretched length 145 mm/transmission: 4 HP 22, 4 HP 24

4 = 0491622 Connection

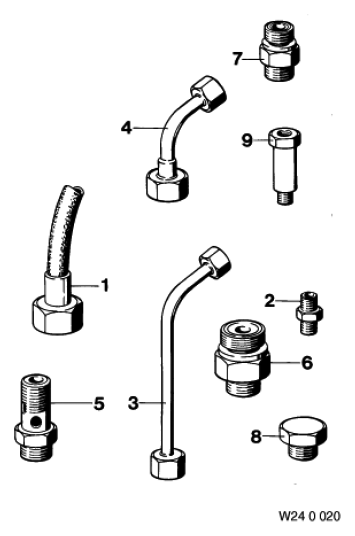

Fig 1: Identifying Connection (240020)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: (Connection) Pipe bend, 90 mm, stretched length 90 mm

5 = 0491623 Screw

NOTE: (Connection) Banjo bolt M20x1. - M18x1./For checking the converter pressure/transmission: 3 HP 12

6 = 0491624 Connection

NOTE: (Connection) Reducer M24x1.5 - 20x1.5/For checking the main pressure/transmission: 3 HP 20

7 = 0491625 Connection

NOTE: (Connection) Reducer M20x1.5 - M18x1.5/For checking the main pressure (3 HP 12) an converter pressure (3 HP 20)/Transmission: 3 HP 12, 3 HP 20

8 = 0491626 Screw

NOTE: (Screw) M18x1./For closing the engine oil feed pipe when checking the converter pressure/transmission: 3 HP 20

9 = 0491627 Adapter

NOTE: For closing the feed and return lines when checking the main pressure/transmission: 3 HP 22
