SI number

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

01 07 06 (256)

Consisting of:

4 = 0495550 Belt

NOTE: (Tensioning strap)

5 = 0496018 Fixture

NOTE: (Fixture for foam material insert)

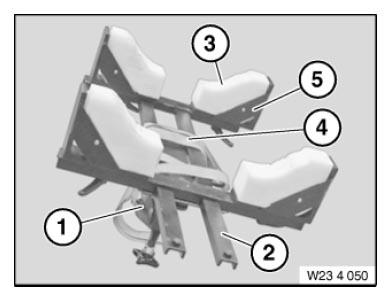

Fig 1: Identifying Fixture (234050)

Courtesy of BMW OF NORTH AMERICA, INC.

1 = 0495547 Joint

2 = 0495548 Frame

NOTE: (Main frame)

3 = 0495549 Insert

NOTE: (Foam inserts (1 set = 4 pieces))
