0491536 232000 Puller MW

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Note: (Rillex ball-bearing extractor 6206) 9 ball bearings with steel cage - For pulling out the grooved ball bearing of the transmission drive shaft

Consisting of:

1 = 0491537 Claw

NOTE: (Claw for Rillex 6206 (9 x))

2 = 0491538 Holding sleeve

NOTE: (Union sleeve)

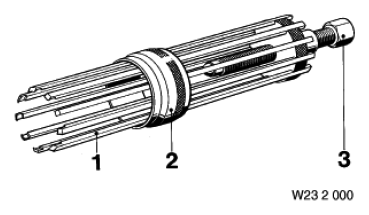

Fig 1: Identifying Puller (232000)

Courtesy of BMW OF NORTH AMERICA, INC.

3 = 0491539 Spindle

NOTE: (pressure spindle)
