Storage Location

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

C15

C16

Consisting of:

1 = 0491458 Holding sleeve

2 = 0491459 Pin

NOTE: (Dowel pin (2 x))

3 = 0491460 Synchronizing key

NOTE: (Synchronizing key, long)

4 = 0491461 Synchronizing key

NOTE: (Synchronizing key, short)

5 = 0491462 Handle

5 = 0491463 Pin

NOTE: (Dowel pins for Getrag transmission)

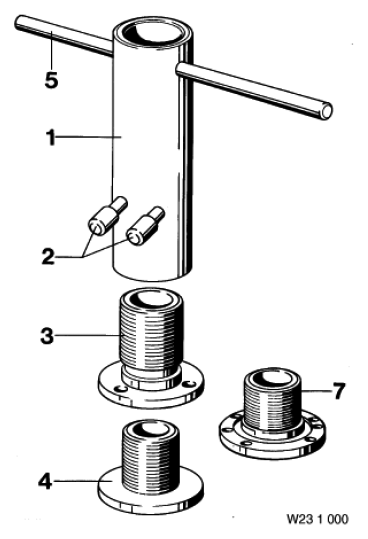

Fig 1: Identifying Device (231000)

Courtesy of BMW OF NORTH AMERICA, INC.

7 = 0491464 Synchronizing key

NOTE: (Synchronizing key for Getrag transmission)

C15

C16
