Rear Lid:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove insert in lower rear lid section panel. Refer to 63 21 183 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR LIGHT (IN REAR LID LOWER SECTION) .

Fold back insulating mat (3).

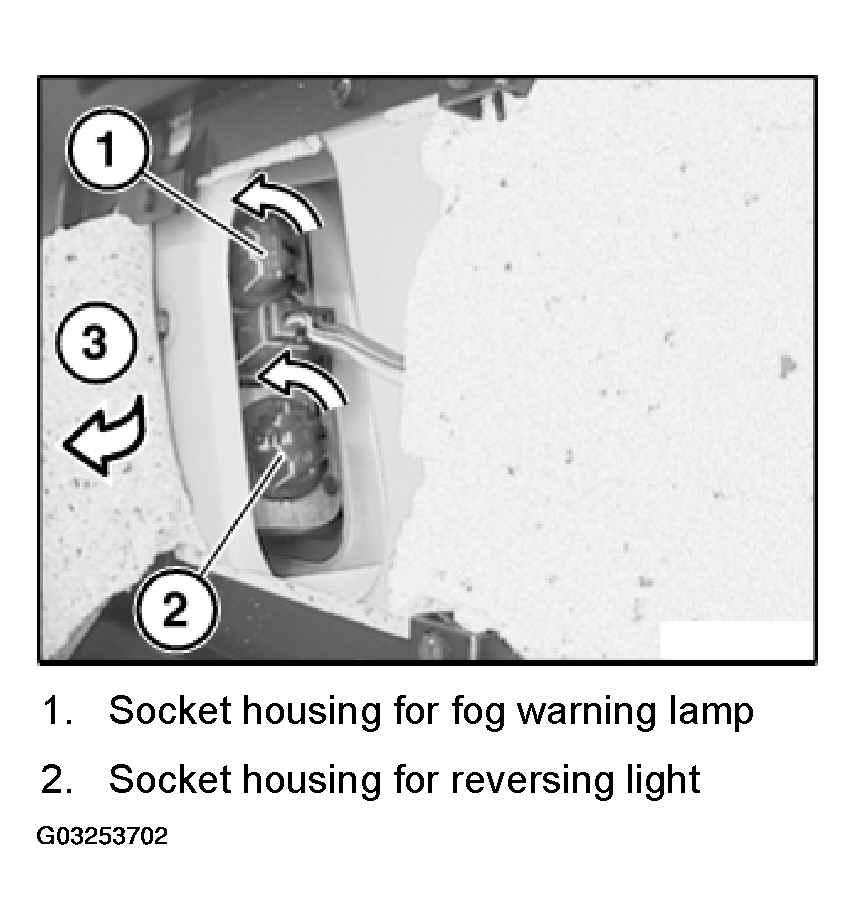

Fig 1: Removing Socket Housing For Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

Turn socket housing for rear light to be replaced counterclockwise and remove.

Convert bulb, replace if necessary. Refer to 63 99 315 REPLACING LIGHT BULB(S) FOR LEFT OR RIGHT REAR LIGHT .

NOTE:

Socket housing for fog warning lamp
Socket housing for reversing light
