Storage Location

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2014 BMW Alpina B7L. However, it is still accessible from the selected car via links, so may be relevant.

A14

Consisting of:

1 = 0490467 Claw

NOTE: (extractor claw (3 pieces required))

2 = 0490468 Spindle

NOTE: (guide spindle)

3 = 0490469 Spindle

NOTE: (Pressure spindle)

4 = 0490470 Fixture

NOTE: (Locating star) For accommodating extractor claws

5 = 0490471 Synchronizing key

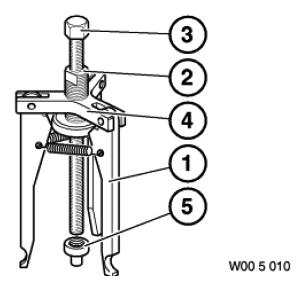

Fig 1: Identifying Puller (005010)
G06875912Courtesy of BMW OF NORTH AMERICA, INC.
