64 11 324 Replacing button caps of heater controls (E60/E61 to 02/2007, E63/E64 to 08/2007)

WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, and 2008 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required: 00 9 341

Turn temperature selector wheel (1) to stop (arrow).

NOTE: Air volume control (2) has no limit position.

Fig 1: Identifying Temperature Selector Wheels And Air Volume Control

G00528599

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip the protective cap (1) of the temperature selector wheels and air flow controller with button cap (2) in direction of arrow.

Fig 2: Identifying Protective Cap And Button Cap

G00528600

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note: Mark (1) must be aligned with mark (2) of the protective cap of the air flow controller (3).

Fig 3: Ensure Protective Cap And Air Flow Marks Are Aligned

G00528586

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note: Clip protective cap (1) of the left temperature selector wheel in with mark pointing to the left (arrow). Clip the protective cap of the right temperature selector wheel in with mark pointing to the right. Protective caps must audibly snap into place.

Fig 4: Clip Protective Cap Of Left Temperature Sensor

G00528602

Courtesy of BMW OF NORTH AMERICA, INC.

Mask button caps as shown with adhesive tape (1).

Fig 5: Masking Button Caps With Tape

G00528603

Courtesy of BMW OF NORTH AMERICA, INC.

Lever off button caps (1) with special tool 00 9 341.

Fig 6: Levering Off Button Caps

G00528604

Courtesy of BMW OF NORTH AMERICA, INC.

Remove adhesive tape (1). Pull light piece (2) out of the fixture of the operating facility using a suitable tool.

Fig 7: Removing Light Piece Out Of Fixture

G00528605

Courtesy of BMW OF NORTH AMERICA, INC.

Detach the button caps (1) from the die cast tree (2). Carefully deburr the button caps, if applicable.

Fig 8: Detaching Button Caps From Die Cast Tree

G00528597

Courtesy of BMW OF NORTH AMERICA, INC.

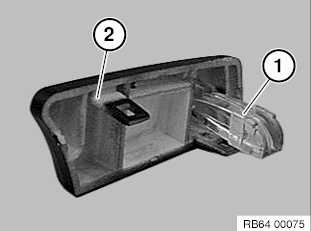

Clip light elements (1) into the button caps (2) as shown. Clip button caps into the operating unit.

Installation note: The button cap for air recirculation function has two light elements.

Fig 9: Clipping Light Elements Into Button Caps

G00528598

Courtesy of BMW OF NORTH AMERICA, INC.

Check function of the air conditioning.
