64 11 323 Replace the button caps for the heater controls (from 03/2007)

WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, and 2008 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks: Remove control panel for heating and air conditioning .

Set included special tool (2) onto the switch block (1) as shown. Press the special tool to the stop onto the switch block. Carefully pull both switch blocks (1) out with special tool (2).

NOTE: If applicable, the switch springs located behind the switch block will fall out when pulling out the switch block.

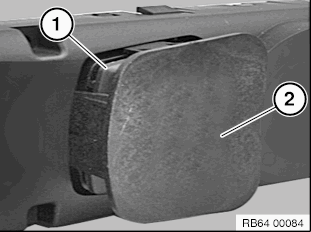

Fig 1: Setting Special Tool Onto Switch Block

G00528591

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully insert the switch springs (1) into the inlet (2) of the switch block (3) as shown.

Installation note: The repair kit includes 7 switch springs. However, only 5 switch springs will be installed. The switch spring positions may not be changed during installation. Check buttons and switch springs for function.

Fig 2: Clipping Switch Blocks Into Operating Unit

G00528588

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note: The springs must be inserted in the left switch block as shown.

Fig 3: Inserting Springs In Left Switch Block

G00528589

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note: The springs must be inserted in the right switch block as shown.

Fig 4: Inserting Springs In Right Switch Block

G00528590

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully clip the switch blocks (2) into the control panel (2).

Installation note: The switch spring positions may thereby not be changed. Check buttons and switch springs for function.

Fig 5: Clipping Switch Blocks Into Control Panel

G00528595

Courtesy of BMW OF NORTH AMERICA, INC.

Check function of the air conditioning.
