3.1 BMW Kinematic Diagnosis System 1, based on the Beissbarth ML4000

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

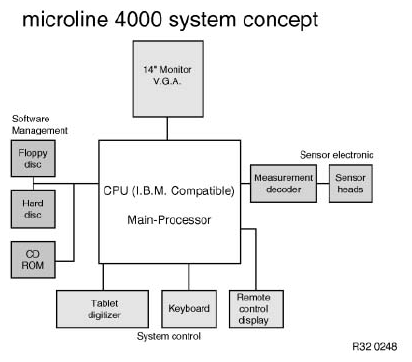

Fig 1: CPU Communication Diagram

Courtesy of BMW OF NORTH AMERICA, INC.

The KDS 1 is available in two different designs at no extra charge:

Mobile workstation

Fig 2: Identifying Mobile Workstation
Courtesy of BMW OF NORTH AMERICA, INC.
Mobile compact cabinet

Fig 3: Identifying Mobile Compact Cabinet
Courtesy of BMW OF NORTH AMERICA, INC.

The larger workstation offers a small storage area for accessories, whilst the compact cabinet is mobile and ideal for restricted working areas. Both variants can be supplied as a cableless measuring system (infrared).

From the point of view of measuring technology, there is only a difference in the handling and equipping of the system.

For both designs, the four measuring sensors are stored in integrated inserts with rechargeable battery charging points.

When automatically charged over night, the measuring sensor batteries provide enough power for 10 hours of continuous use.
