54 10 050 Removing and installing/replacing mechanism for floating roofliner

Necessary preliminary tasks:

• Remove glass slide/tilt sunroof, refer to 54 13 080 REMOVING AND INSTALLING COMPLETE GLASS SLIDE/TILT SUNROOF
• Remove slider set for floating roofliner, refer to 54 10 070 REMOVING AND INSTALLING/REPLACING SLIDER SET FOR FLOATING ROOFLINER
• Remove rear cross-member, refer to 54 13 150 REMOVING AND INSTALLING REAR CROSSMEMBER

Unclip end stops (1) on left and right from guide channel.

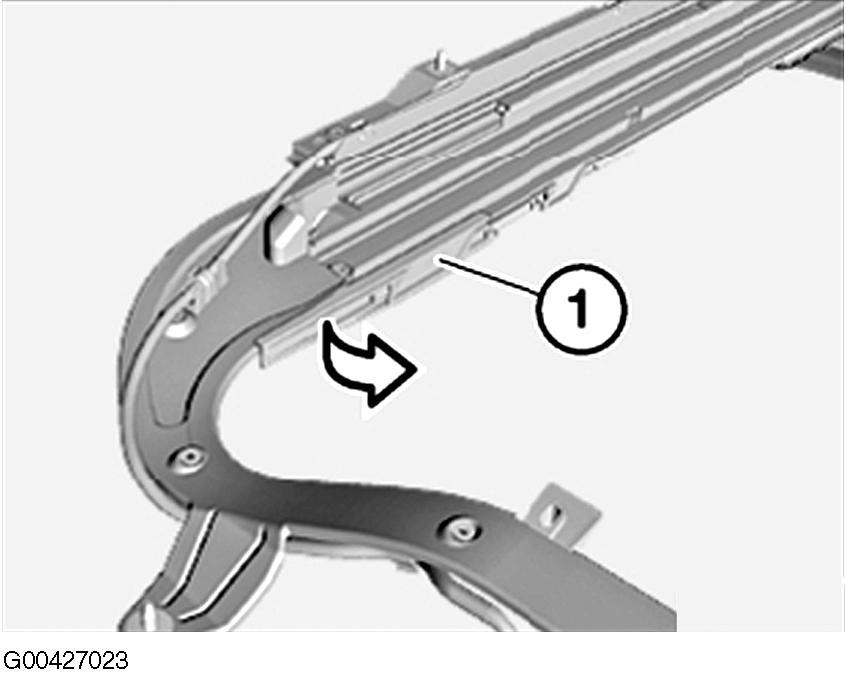

Fig 1: Locating End Stops

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip floating roofliner cover plate (1) from slider for front sun shield. Remove floating roofliner cover plate (1) upwards from locking lever (2).

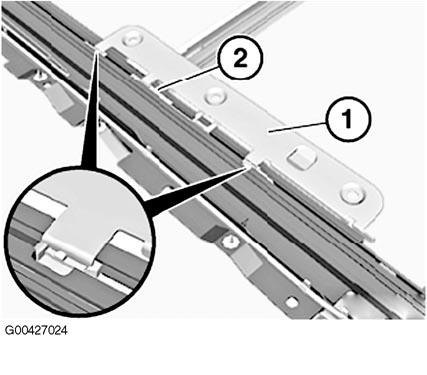

Fig 2: Removing Floating Roofliner Cover Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Pull mechanism for floating roofliner towards rear out of guide channel:

1. Sliders for floating roofliner
2. Locking lever for floating roofliner
3. Rear drive cable plate with drive cable

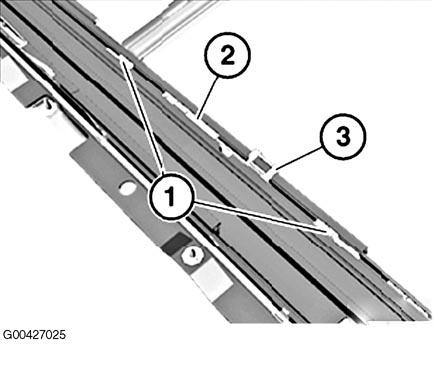

Fig 3: Removing Mechanism For Floating Roofliner

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure correct installation sequence:

1. Sliders for floating roofliner
2. Locking lever for floating roofliner
3. Rear drive cable plate with drive cable

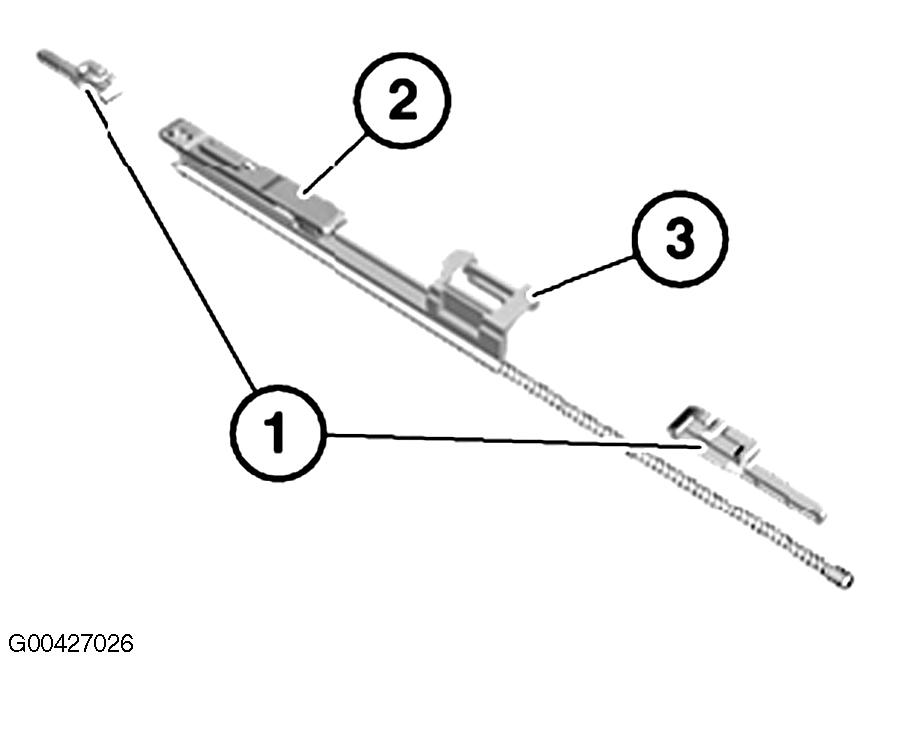

Fig 4: Installing Roofliner Components

Courtesy of BMW OF NORTH AMERICA, INC.

Slide in locking lever for floating roofliner (3) and slide up to recess in guide frame. Open locking lever (1) with screwdriver. Slide rear drive cable plate (2) into locking lever.

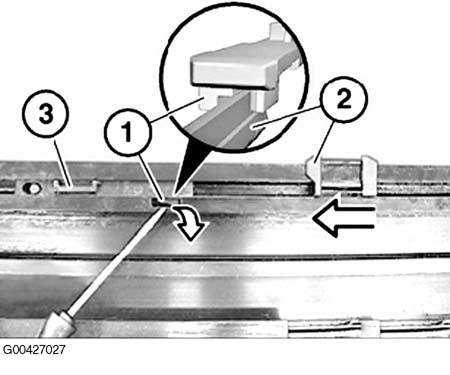

Fig 5: Sliding In Locking Lever

Courtesy of BMW OF NORTH AMERICA, INC.
