54 12 265 Adjusting both drive cables for actuation of glass slide/tilt sunroof

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Removing and installing glass slide/tilt sunroof, refer to 54 12 115 REMOVING AND INSTALLING GLASS SLIDING/TILTING SUNROOF LID .

Remove drive unit with transmission for slide/tilt sunroof actuation, refer to DRIVE, SLIDE-TILT SUNROOF .

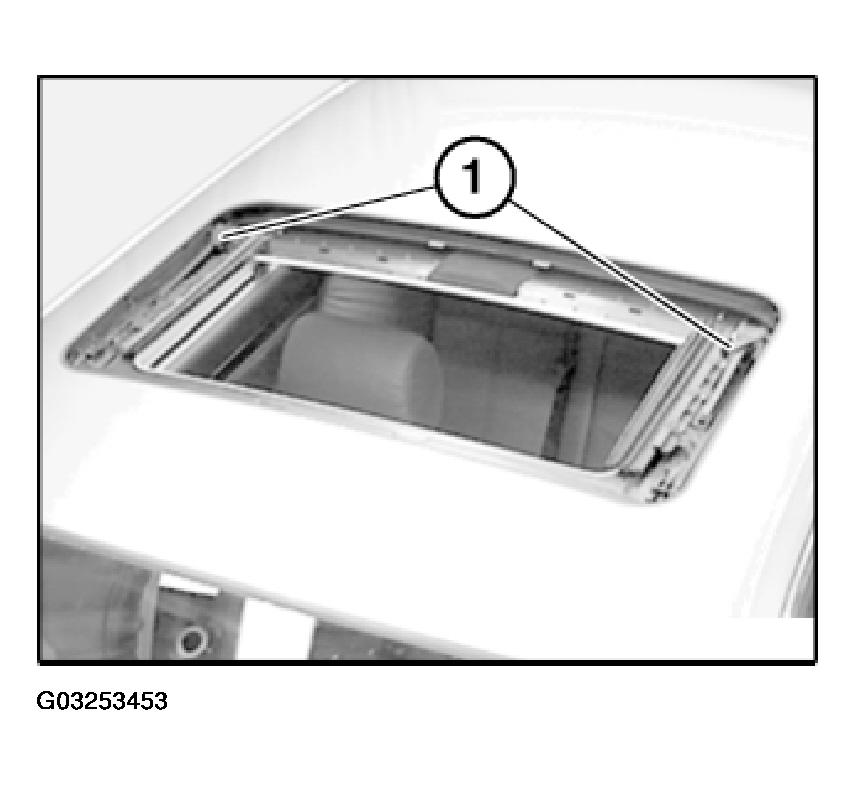

Slide mechanism (1) into zero setting.

Fig 1: Sliding Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

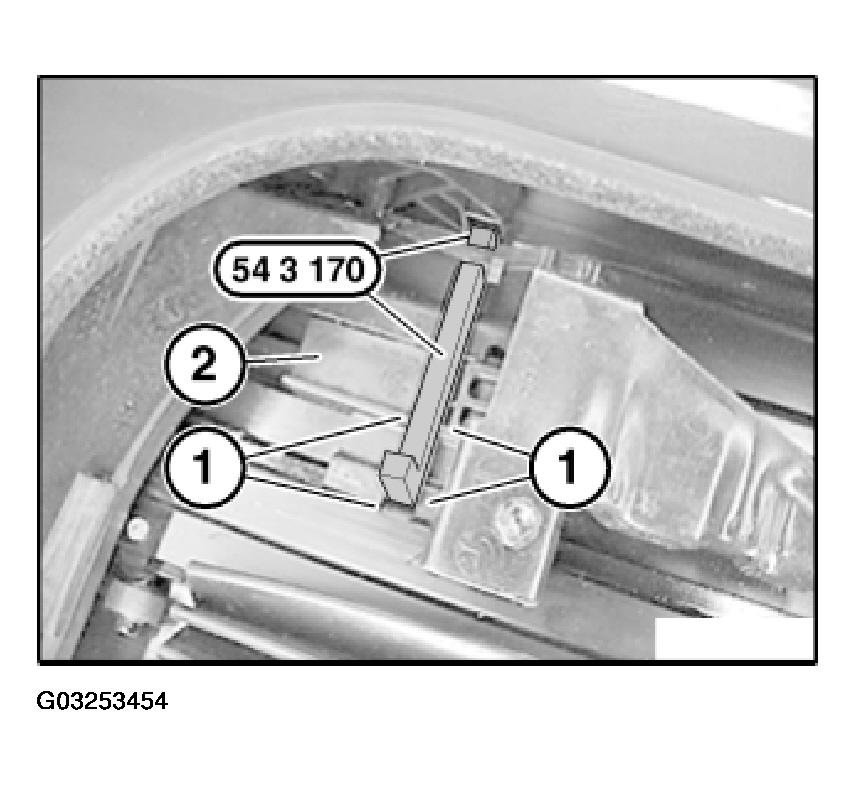

Insert special tool 54 3 170 left/right between the guides (1) in the lifting device (2).

Fig 2: Inserting Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

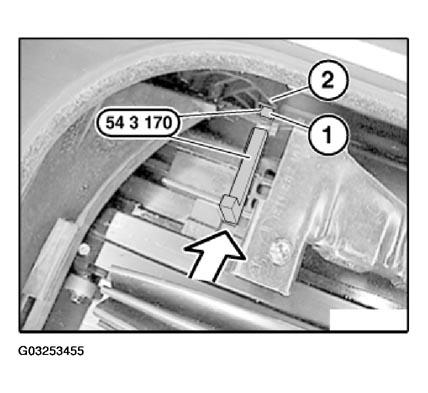

Lift front of special tool 54 3 170 (1) slightly and insert in control gate (2) (both drive cables are now secured in their zero setting).

Fig 3: Securing Drive Cables

Courtesy of BMW OF NORTH AMERICA, INC.

Install drive unit with transmission for slide/tilt sunroof actuation.

CAUTION: Remove special tool 54 3 170 left/right (risk of damage).

Check function.
