52 16 400 Replacing seat cover for left or right front seat (sports/electric)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Removing carrier for actuation:

Remove outer cover with switch combination, refer to 52 16 040 REMOVING AND INSTALLING/REPLACING OUTER COVER ON FRONT LEFT OR RIGHT SEAT (SPORTS/ELECTRIC)  .

Version with seat heating:

Disconnect plug connection (1) if necessary.

Fig 1: Detaching Cable From Holder
G03253266Courtesy of BMW OF NORTH AMERICA, INC.

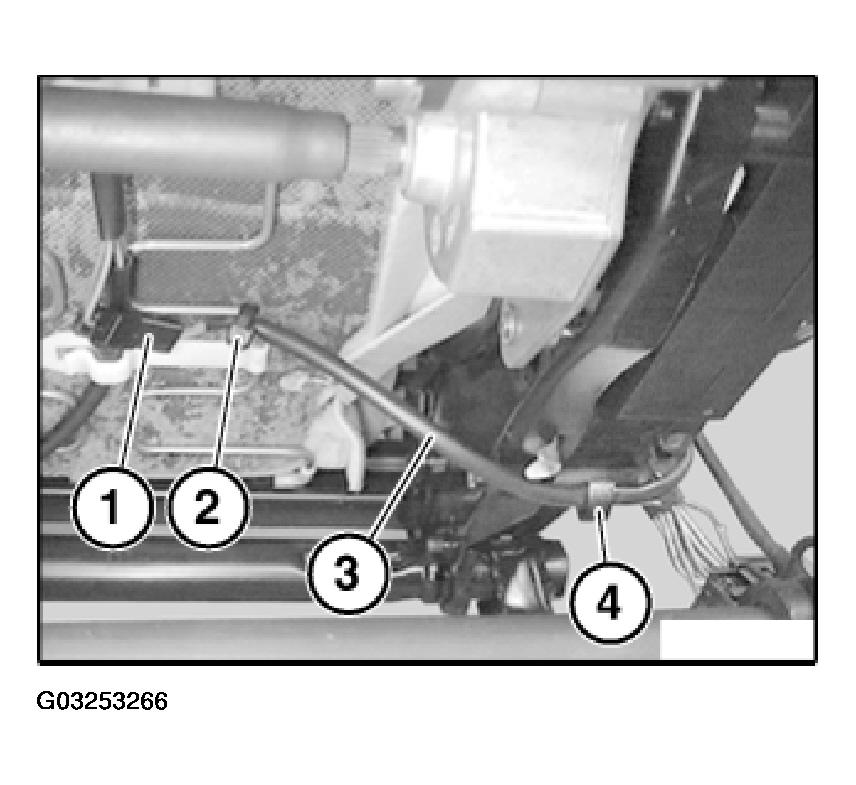

Unfasten cable clip (2).

Detach cable (3) from holder (4).

Version with seat heating:

Detach cable (1) from holder (2).

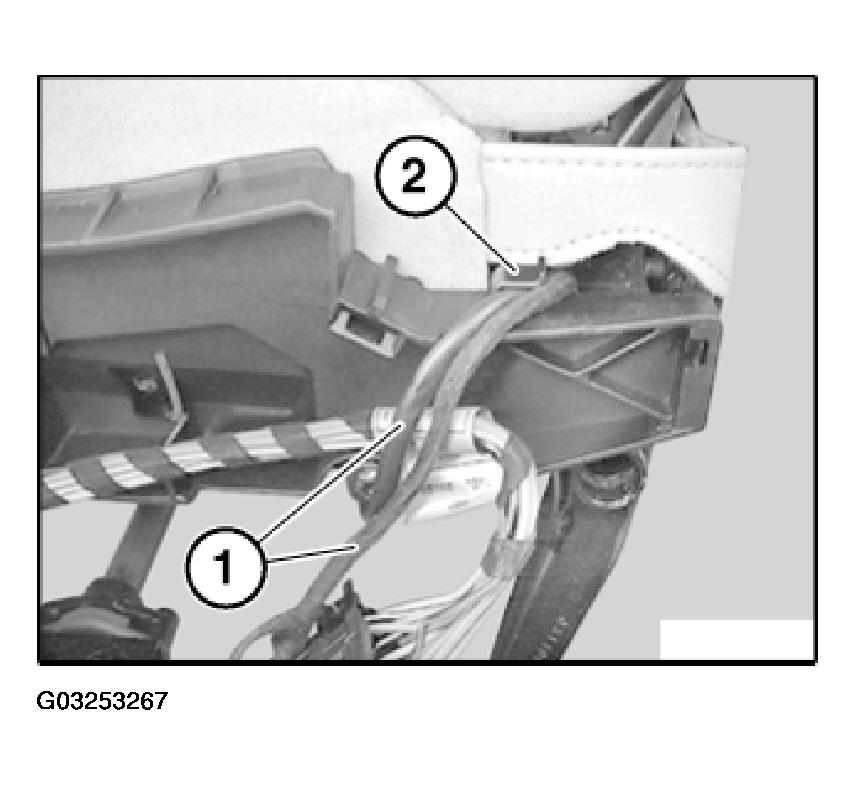

Fig 2: Detaching Cable From Holder
G03253267Courtesy of BMW OF NORTH AMERICA, INC.

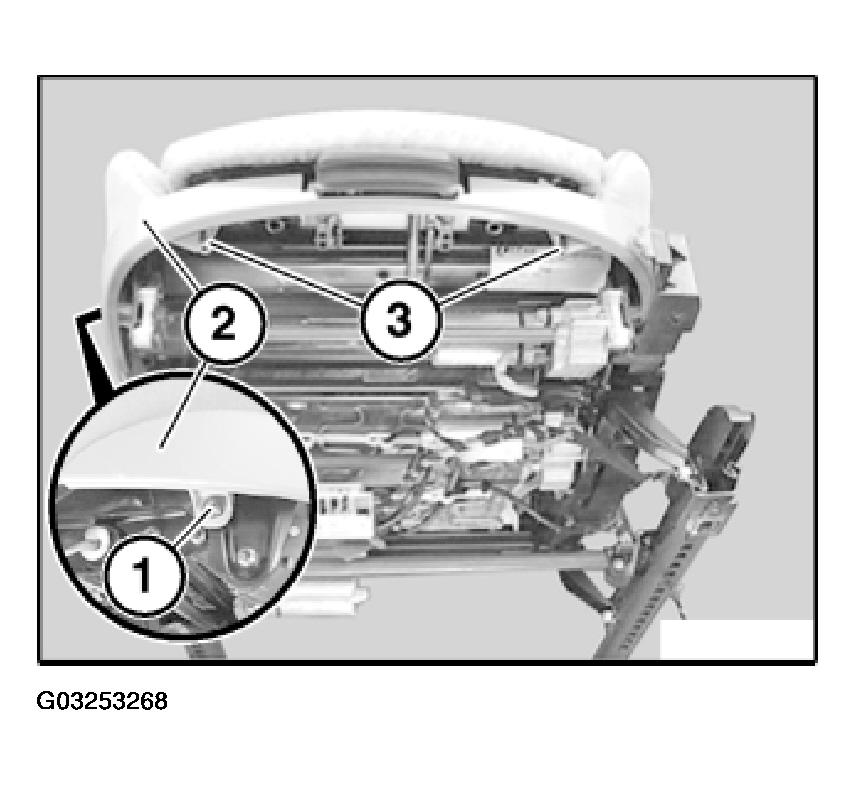

Release screw (1) on inside/outside.

Fig 3: Releasing Screw On Inside/Outside
G03253268Courtesy of BMW OF NORTH AMERICA, INC.

Unclip clips (3) towards bottom and pull trim (2) out a little.

Release screws (1).

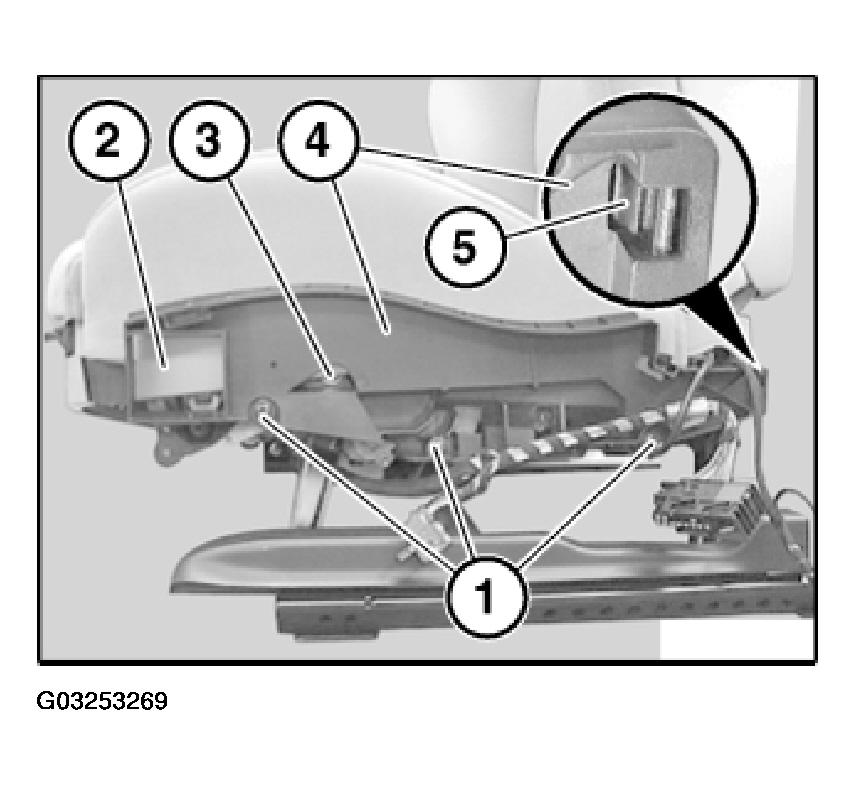

Fig 4: Removing Trim And Holder
G03253269Courtesy of BMW OF NORTH AMERICA, INC.

Pull trim (2) out a little and release screw (3).

Unclip clip (5) from holder (4).

Remove trim (2) and holder (4).

Installation:

Cable holders (1) on holder (2) must not be damaged.

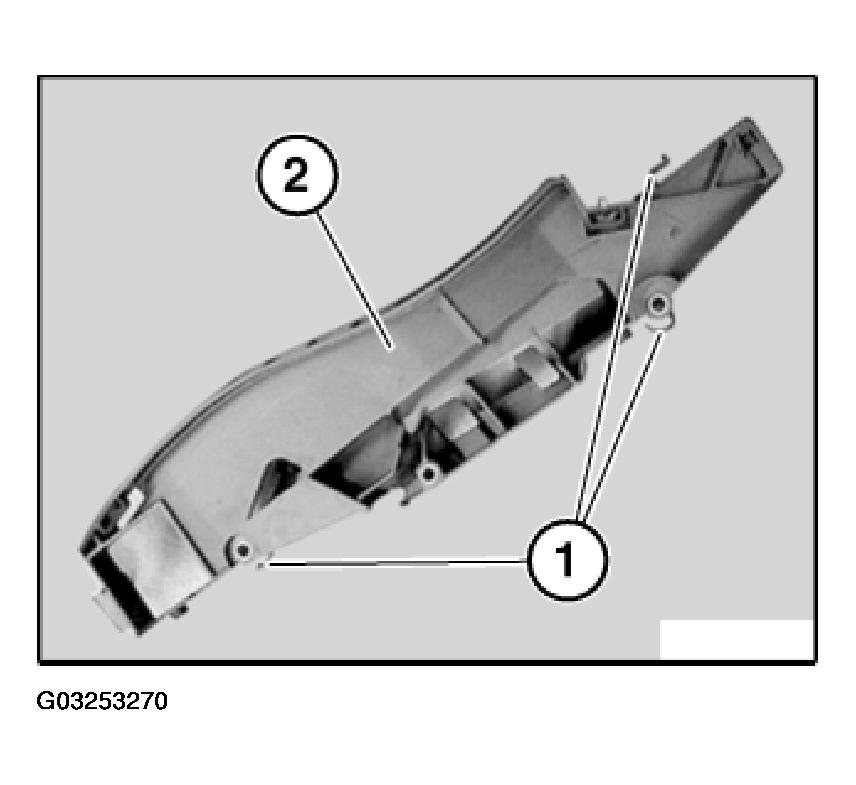

Fig 5: Identifying Cable Holders On Holder
G03253270Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

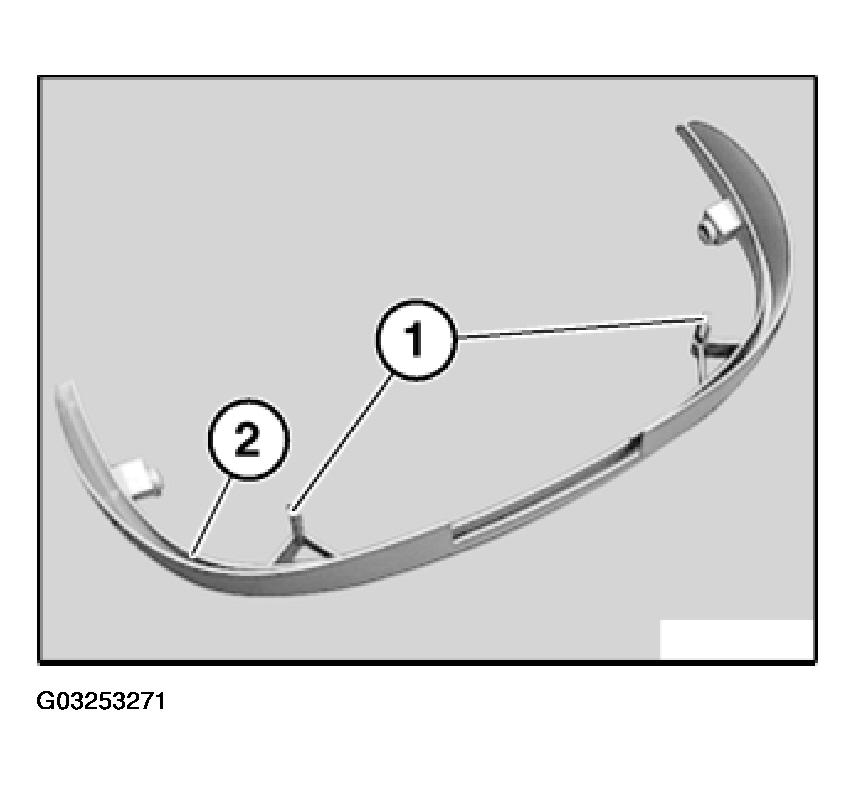

Clips (1) on sports seat trim (2) must not be damaged.

Fig 6: Identifying Clips On Sports Seat Trim
G03253271Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The operation "Removing holder for actuation" ends here.

Removing complete seat cover:

Remove inner cover, refer to 52 13 041 REMOVING AND INSTALLING / REPLACING INNER COVER ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL/ MANUAL)  .

Remove front seat, refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL / ELECTRIC)  .

Version with seat occupancy detector:

If necessary, disconnect plug connection (1) from control unit (2).

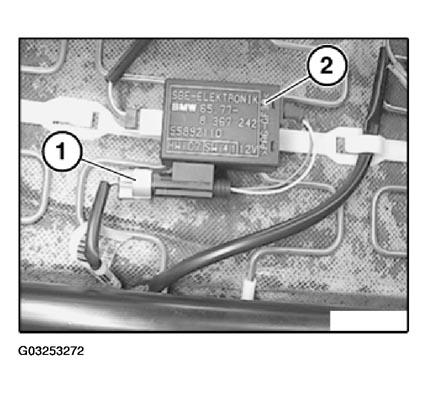

Fig 7: Disconnecting Plug Connection From Control Unit
G03253272Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heating:

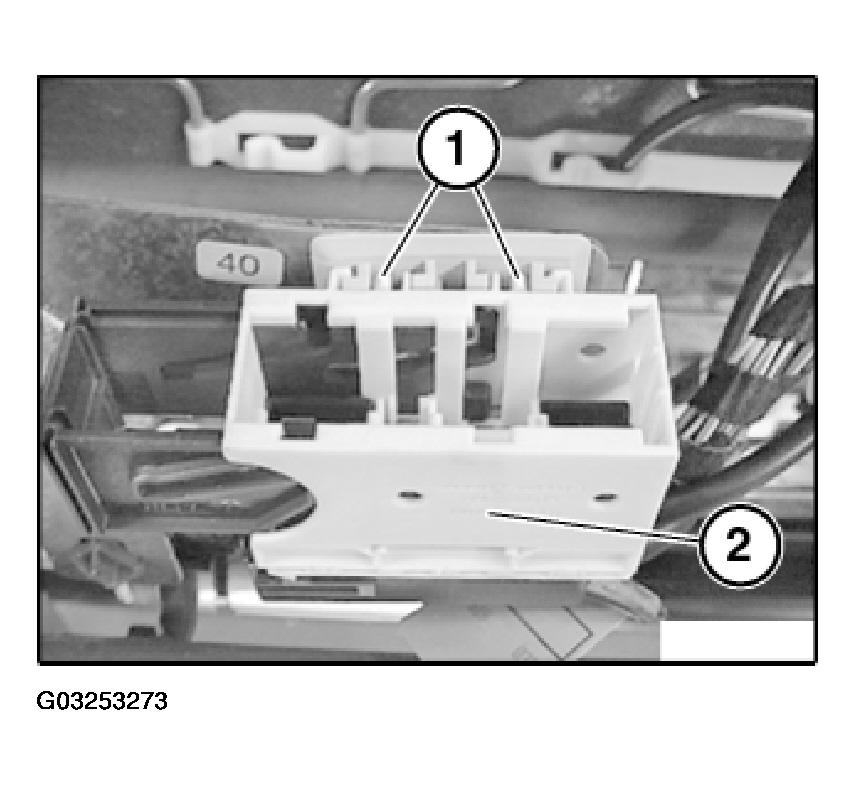

If necessary, unlock catches (1) and detach plug housing (2).

Fig 8: Detaching Plug Housing
G03253273Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heating:

If necessary, press catch (1) downwards and detach cover (2).

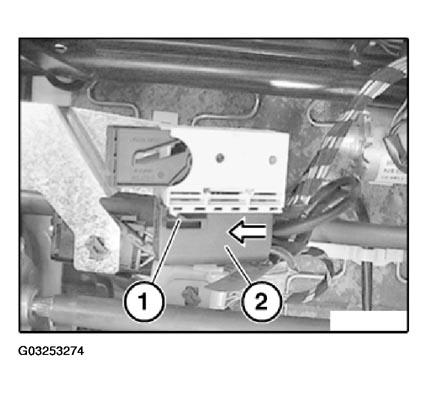

Fig 9: Detaching Cover
G03253274Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heating:

Disconnect plug connection (1) of seat heater from plug housing (2).

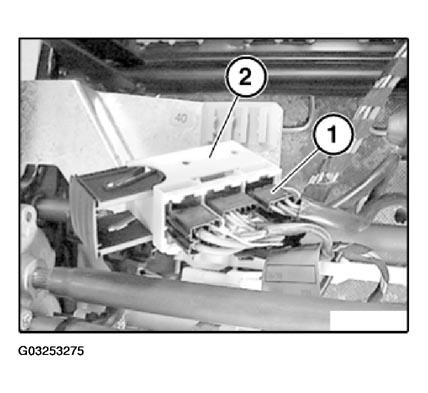

Fig 10: Disconnecting Plug Connection Of Seat Heater
G03253275Courtesy of BMW OF NORTH AMERICA, INC.

Press backrest cover (1) to one side and release screw (2) on left and right.

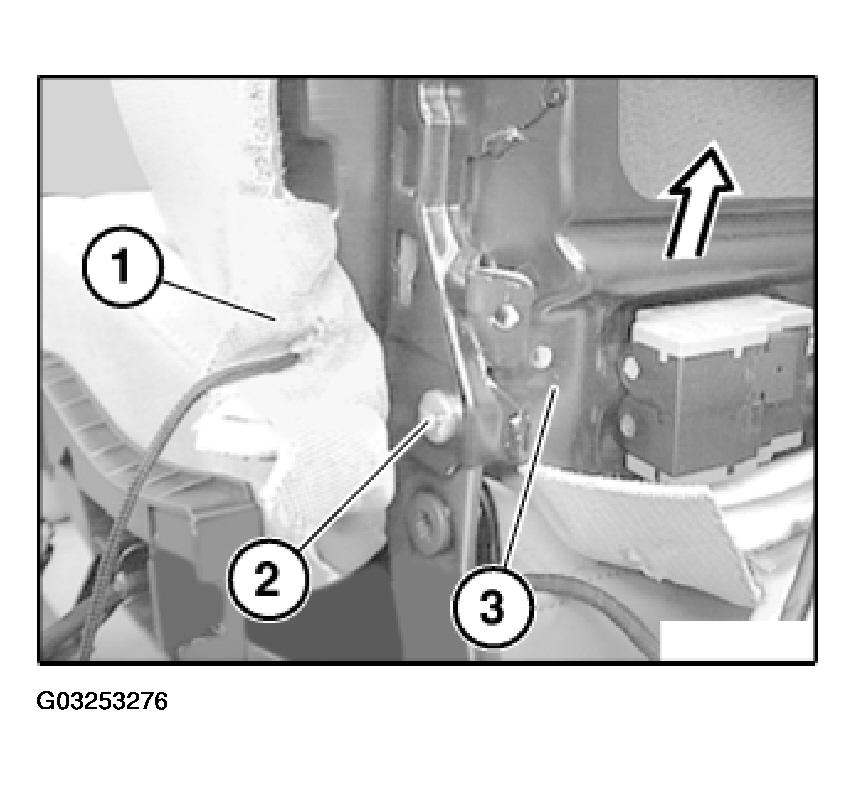

Fig 11: Removing Complete Backrest
G03253276Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace screw (2) (microencapsulation) and observe tightening torque 52 10 2AZ. Refer to SEATS - TIGHTENING TORQUES .

CAUTION: Do not turn screw underneath screw (2) (risk of damage).

Remove complete backrest (3) in direction of arrow.

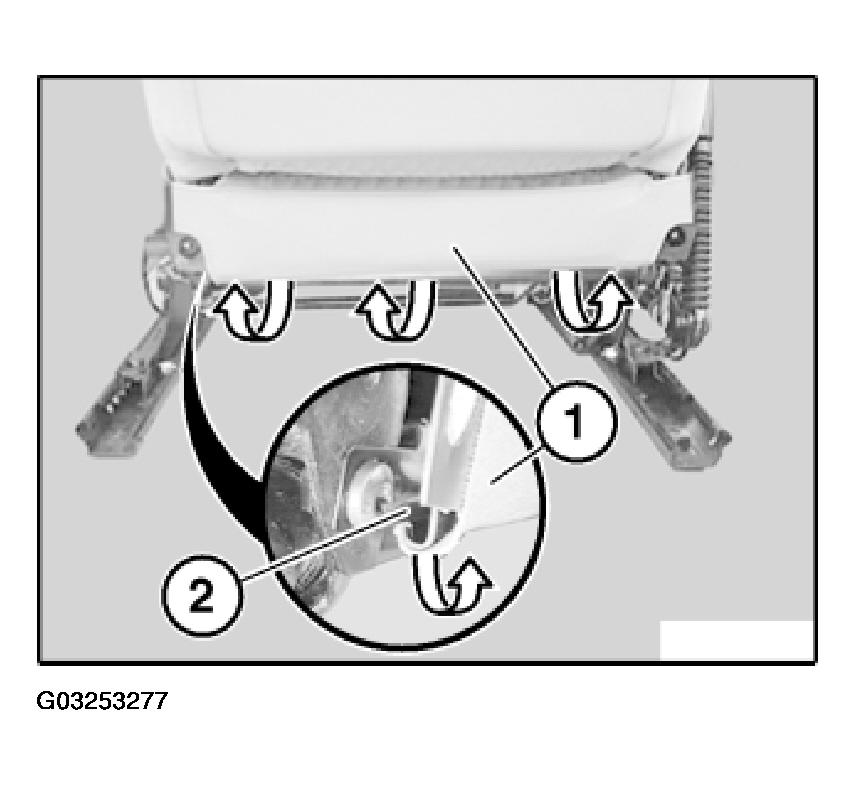

Detach seat cover (1) from seat frame (2).

Fig 12: Detaching Seat Cover From Seat Frame
G03253277Courtesy of BMW OF NORTH AMERICA, INC.

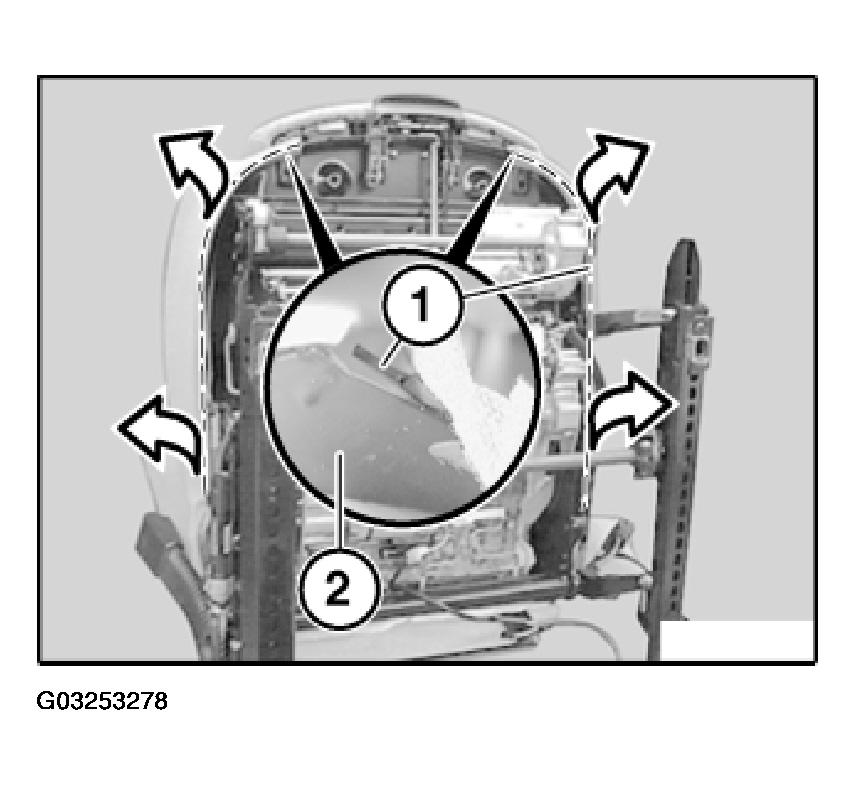

Pull out cover piping (1) completely from seat frame (2).

Fig 13: Pulling Out Cover Piping
G03253278Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten thigh support and pull completely towards front.

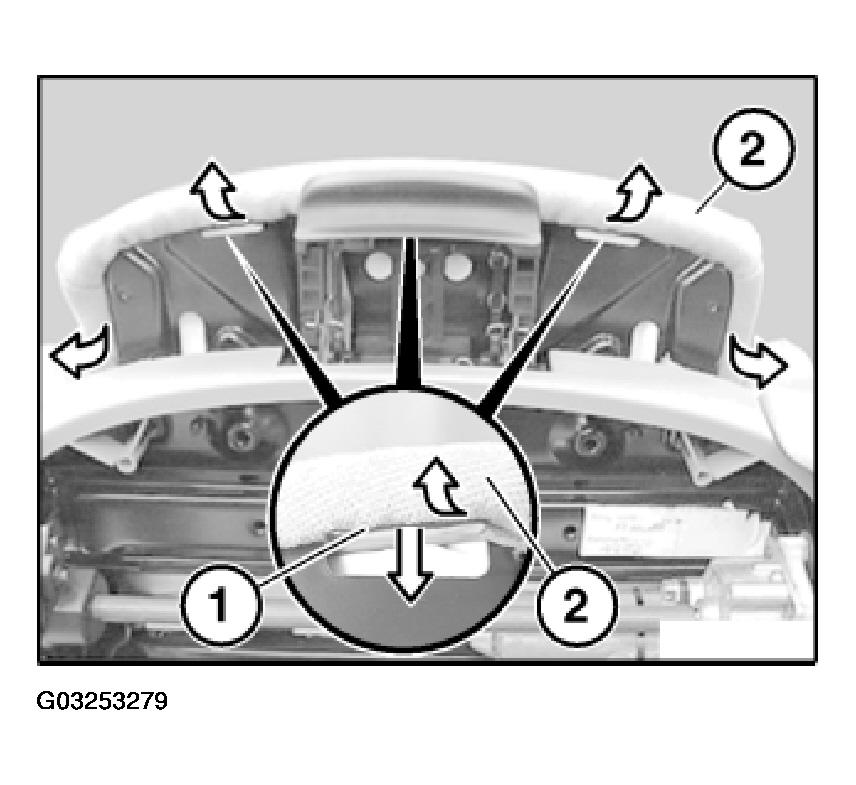

Fig 14: Removing Cover Piping
G03253279Courtesy of BMW OF NORTH AMERICA, INC.

Bend open retaining plates (1) and remove cover piping (2).

NOTE: Cushion (1) is secured at front with double-sided adhesive tape (3) to holder (2).

Pull cushion (1) towards top off holder (2).

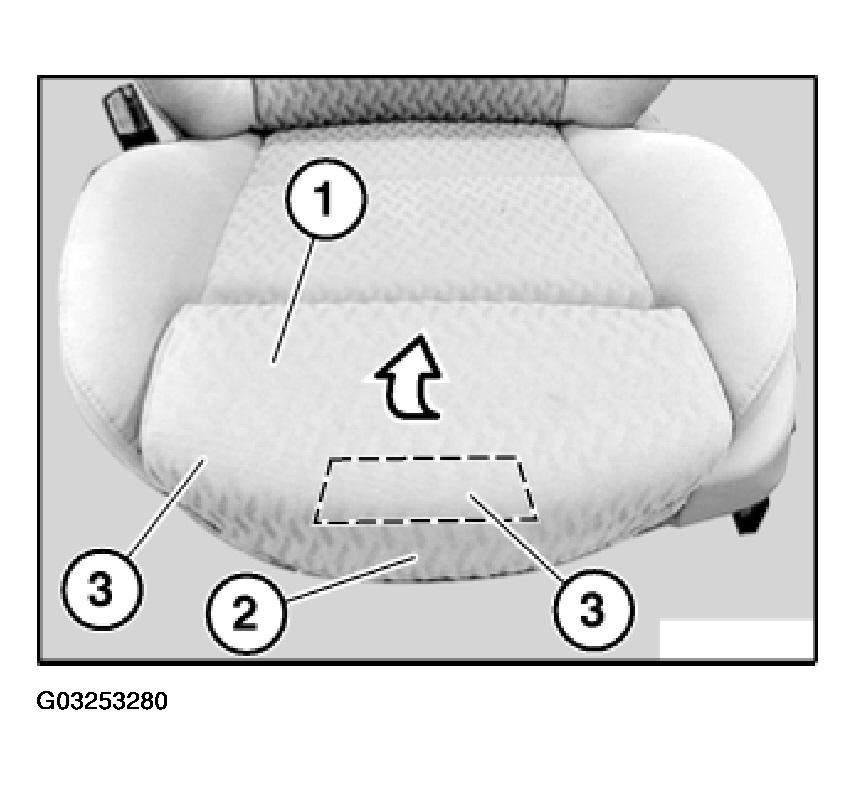

Fig 15: Pulling Cushion Off Holder
G03253280Courtesy of BMW OF NORTH AMERICA, INC.

Lever trim wire (1) out of mounts (2).

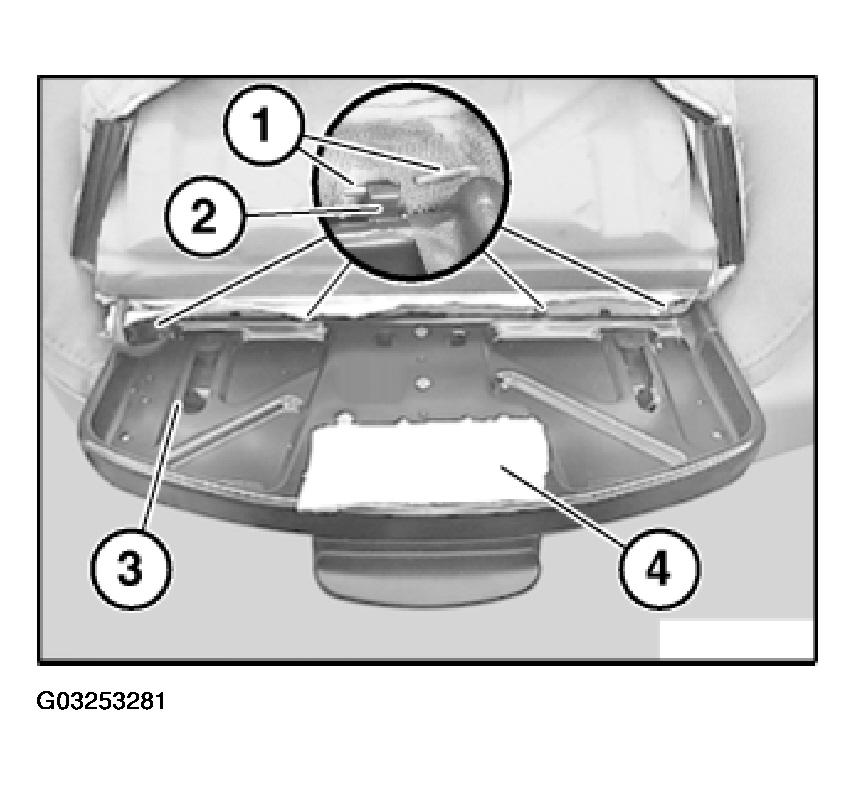

Fig 16: Locating Trim Wire
G03253281Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Stick new double-sided adhesive tape (4) to holder (3) or attach mount with spray adhesive.

Model without seat heating and without seat occupancy detector:

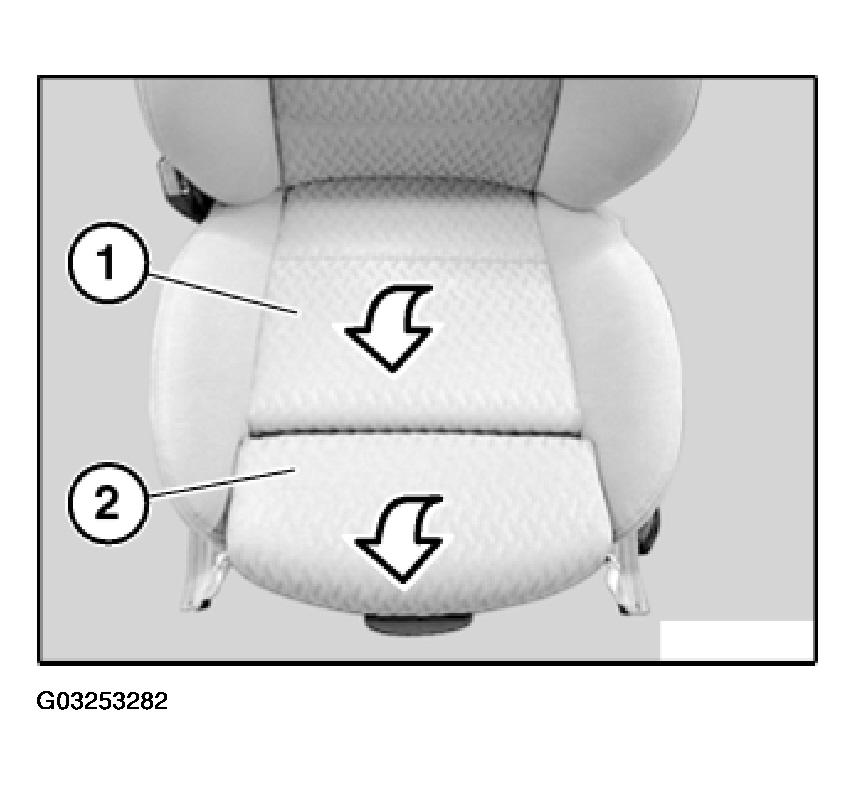

Remove seat cover (1) with thigh support (2) towards front/top.

Fig 17: Removing Seat Cover With Thigh Support
G03253282Courtesy of BMW OF NORTH AMERICA, INC.

Model with seat heating and/or with seat occupancy detector:

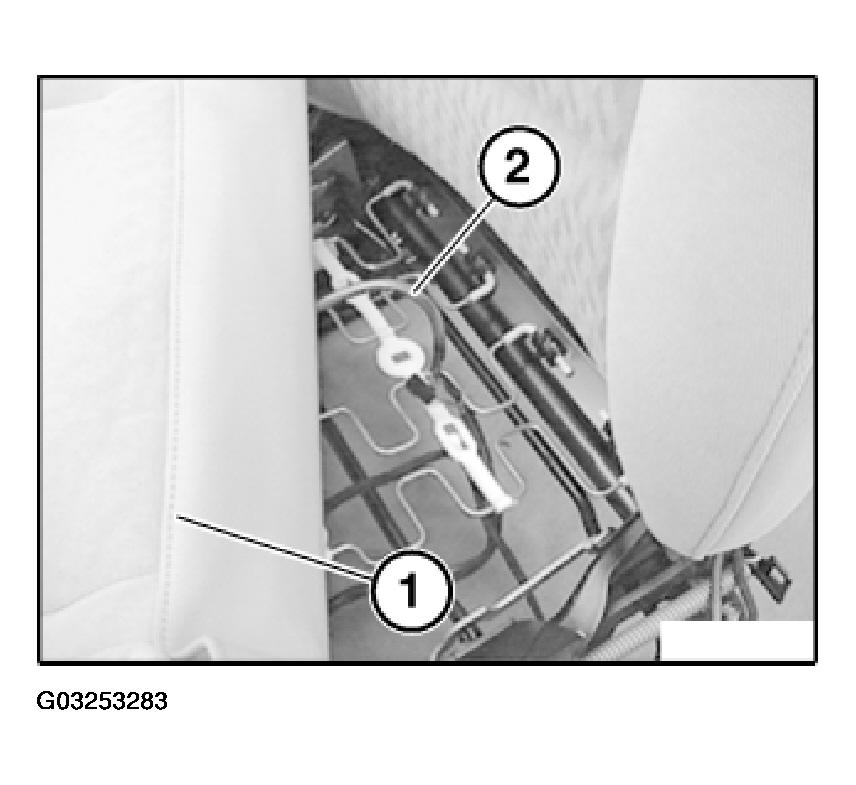

Pull seat cover (1) forward a little and feed cable (2) out.

Fig 18: Removing Seat Cover
G03253283Courtesy of BMW OF NORTH AMERICA, INC.

Remove seat cover (1) with thigh support towards front/top.

NOTE: The operation "Removing complete seat cushion" ends here.

Replacing padding or sensor mat:

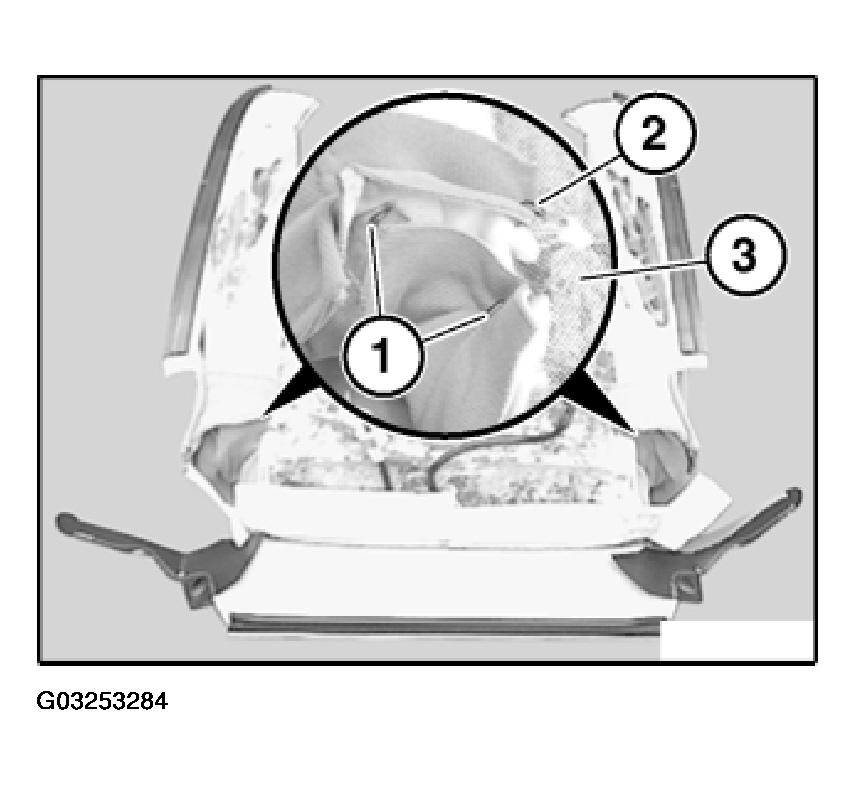

Release clips (1) and (2) at rear left/right from padding (3).

Fig 19: Releasing Clips At Rear
G03253284Courtesy of BMW OF NORTH AMERICA, INC.

Release all clips (1) on left/right and (2) center from padding (3).

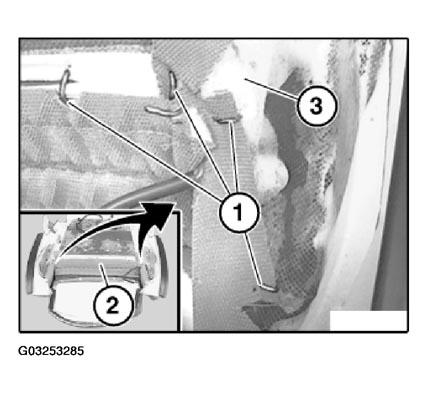

Fig 20: Releasing Clips On Left/Right And Center
G03253285Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heating:

Installation:

Note routing of seat heater cable (1).

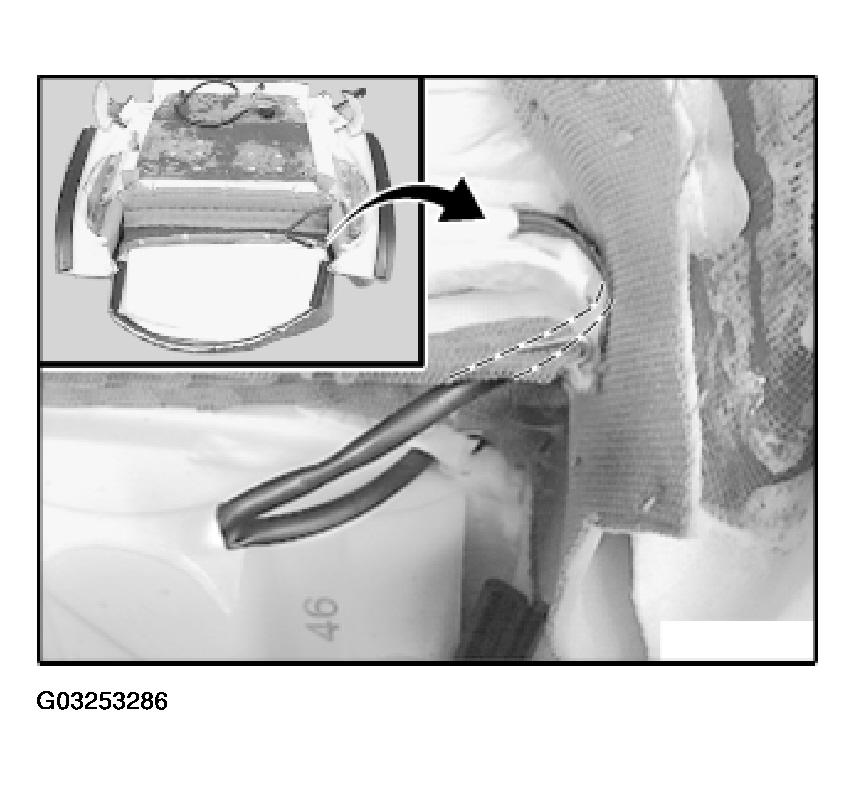

Fig 21: Identifying Routing Of Seat Heater Cable
G03253286Courtesy of BMW OF NORTH AMERICA, INC.

Do not damage with clips.

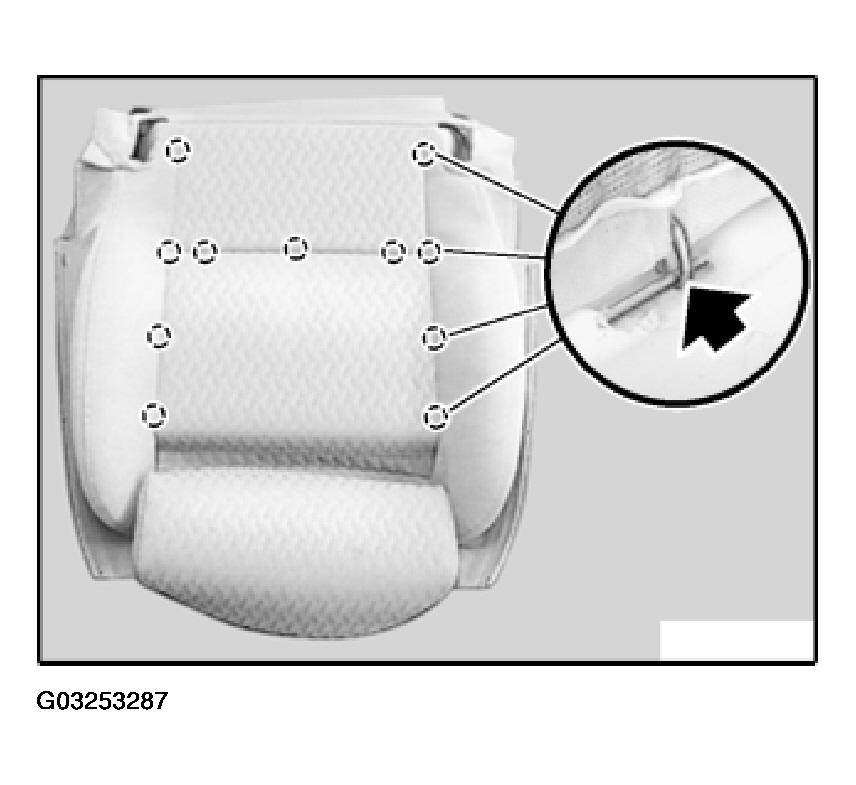

Release all retainers.

Fig 22: Removing Seat Cover
G03253287Courtesy of BMW OF NORTH AMERICA, INC.

Remove seat cover from support (foam rubber section).

Remove all remnants of retainers from seat cover and support.

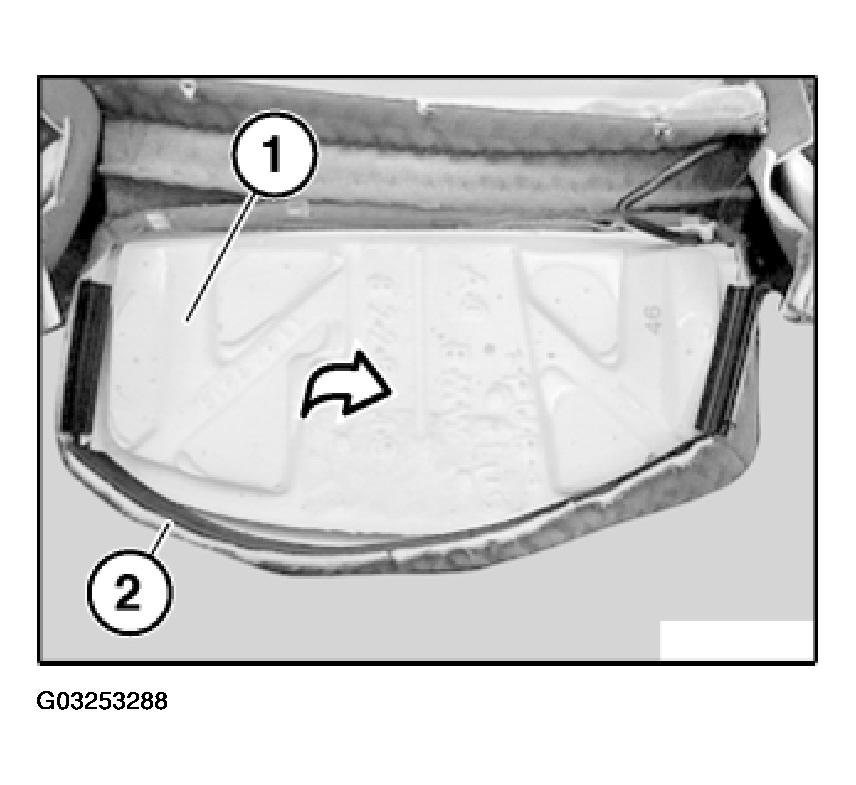

Remove padding (1) from seat cover (2).

Fig 23: Removing Padding From Seat Cover
G03253288Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heating:

Installation:

If necessary, detach heating mat (1) from adhesive tape (2) of thigh support.

  1. 3 Seat heater cable

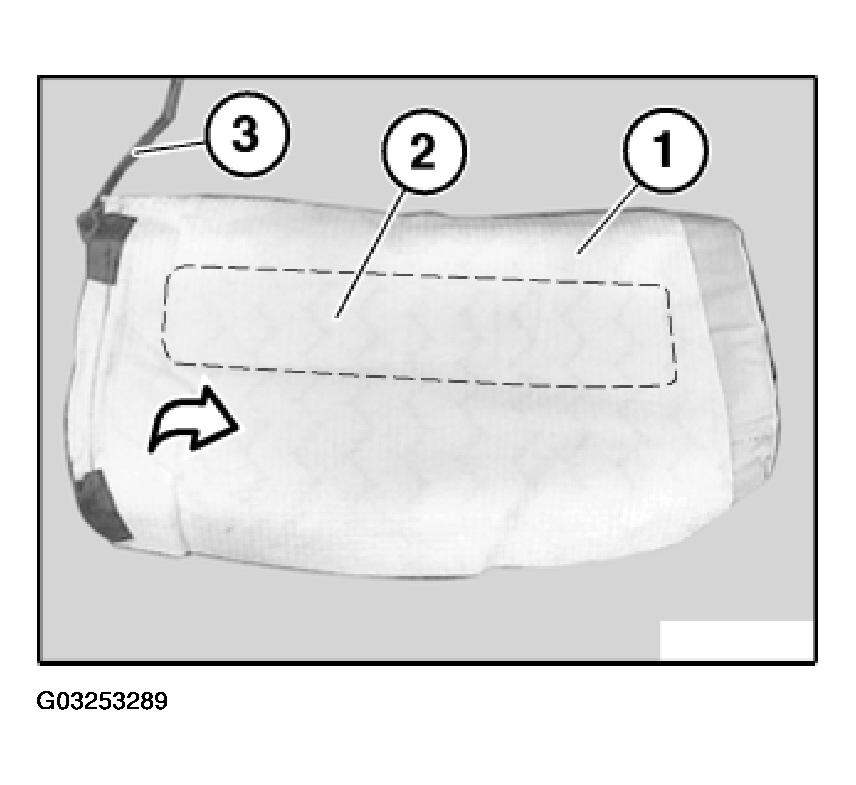

    Fig 24: Detaching Heating Mat
    G03253289Courtesy of BMW OF NORTH AMERICA, INC.

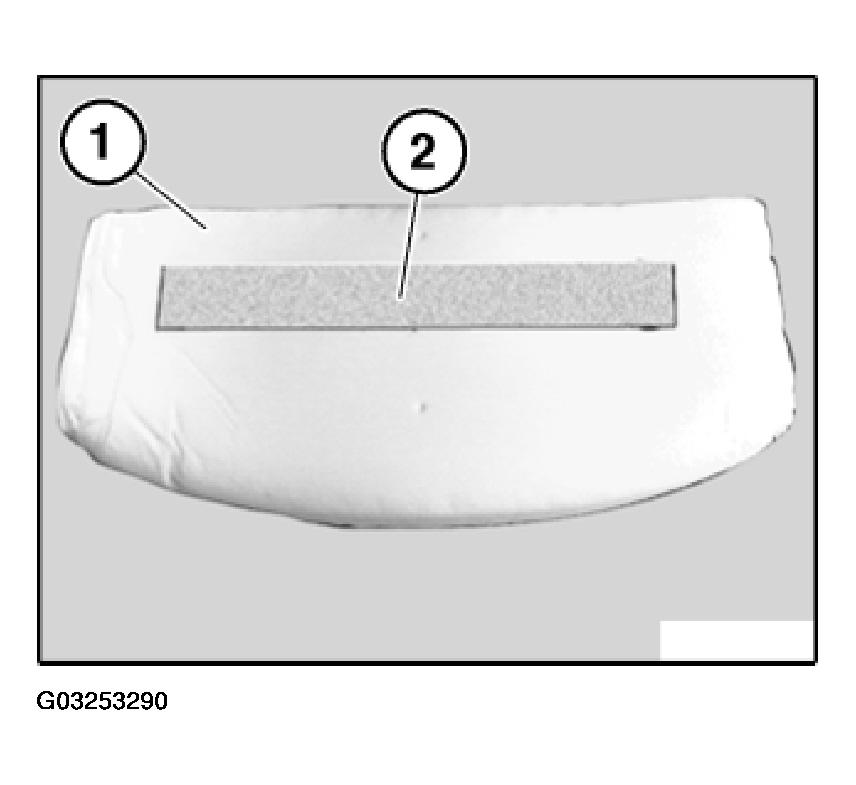

Stick double-sided adhesive tape (2) to padding (1) or coat with spray adhesive.

Fig 25: Applying Double-Sided Adhesive Tape To Padding
G03253290Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heater and/or with seat occupancy detector:

Installation:

Feed seat heater cable (1) through bore (3).

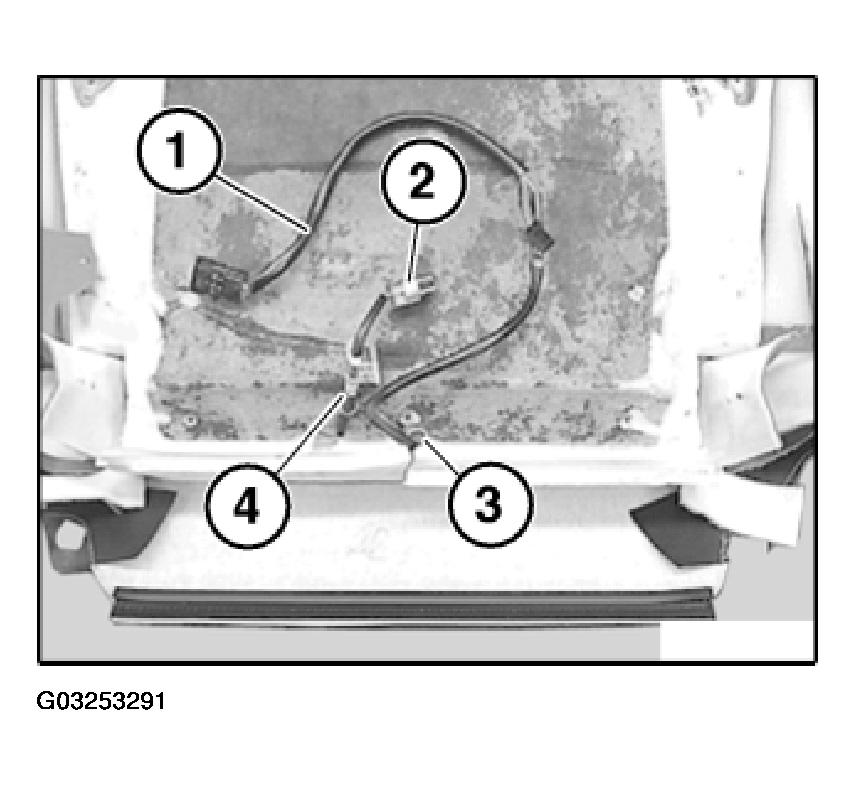

Fig 26: Feeding Seat Heater Cable
G03253291Courtesy of BMW OF NORTH AMERICA, INC.

Feed seat heater cable (2) through bore (4).

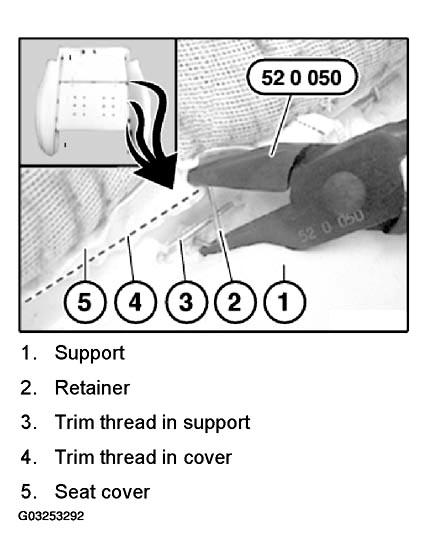

Installation:

Bend new clips (2) closed with special tool 52 0 050.

  1. Support
  2. Retainer
  3. Trim thread in support
  4. Trim thread in cover
  5. Seat cover
    Fig 27: Installing New Clips
    G03253292Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

The padding (2) is coated with wax (1) to prevent grinding noises.

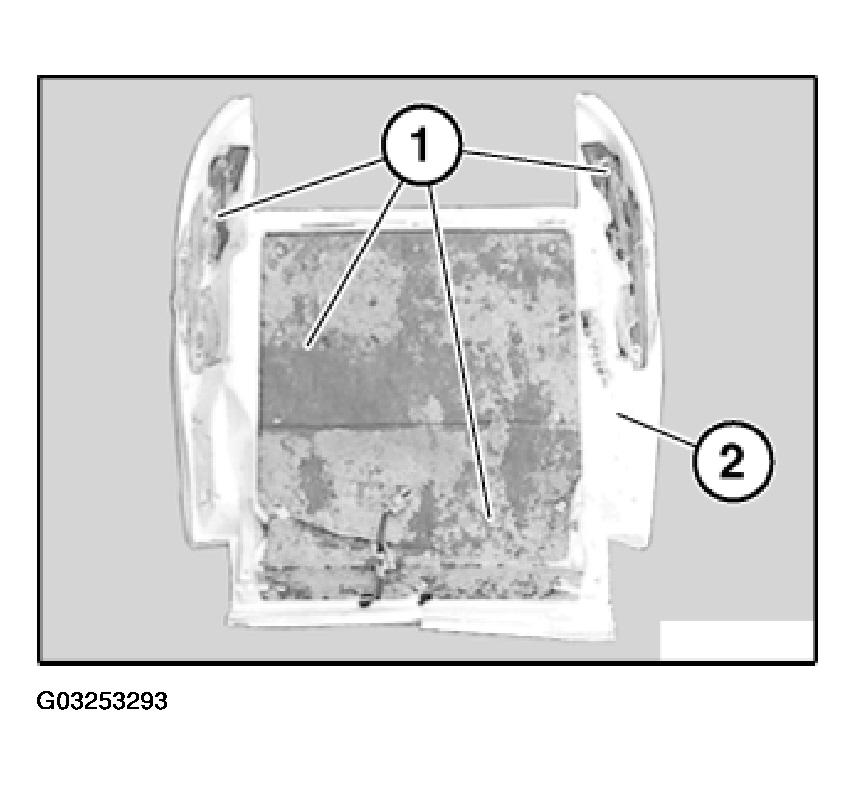

Fig 28: Locating Wax On Support
G03253293Courtesy of BMW OF NORTH AMERICA, INC.

Do not remove wax (1) on support (2).

Passenger seat only (replacing support):

Installation:

Make sure foam is not extensively damaged (malfunction of passenger seat occupancy detector).

Lay sensor mat connection without creasing into groove on padding.

Fit new sensor mat (1) for passenger seat occupancy detector.

Fig 29: Aligning New Sensor Mat On Foam
G03253294Courtesy of BMW OF NORTH AMERICA, INC.

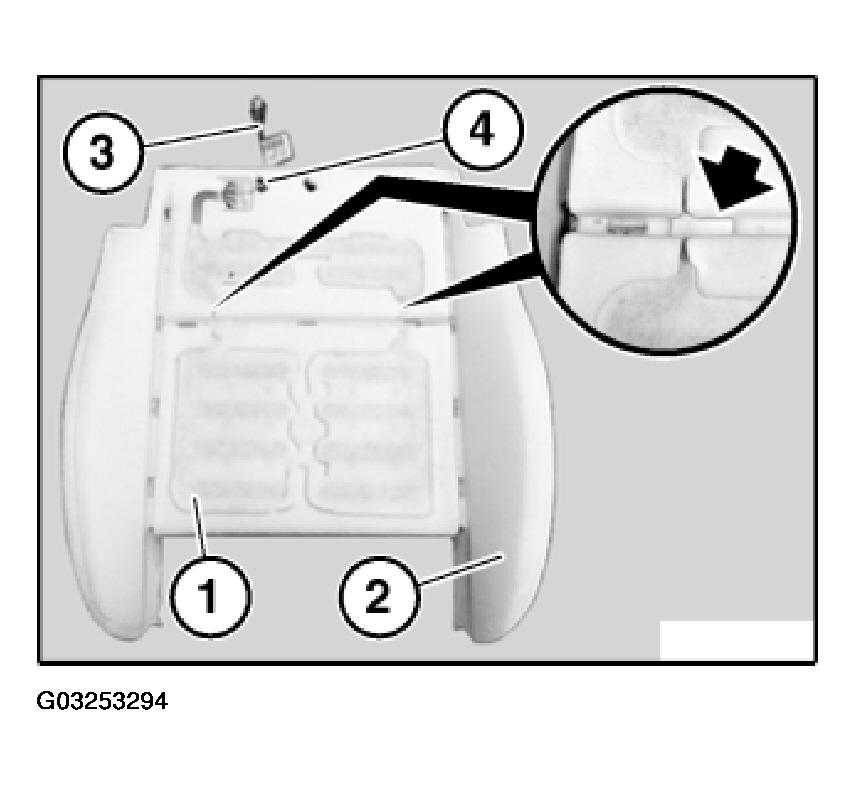

Align new sensor mat (1) on foam (2).

Feed plug (3) through hole (4).

Installation:

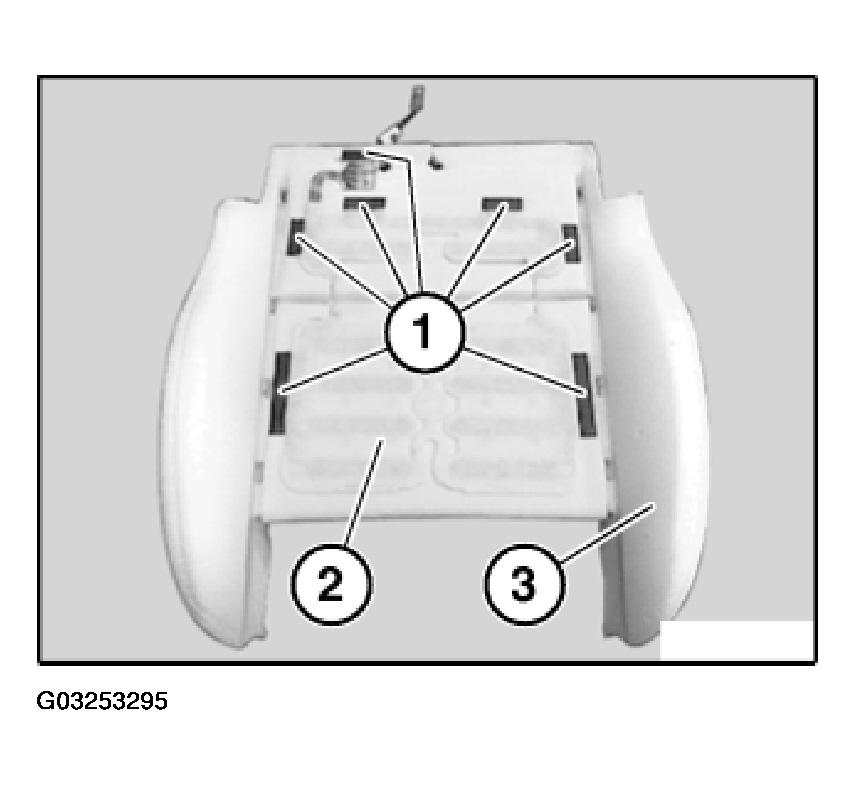

Detach liner (1) at individual points and stick sensor mat (2) onto foam (3).

Fig 30: Sticking Sensor Mat Onto Foam
G03253295Courtesy of BMW OF NORTH AMERICA, INC.

Liner is the protective film on adhesive area.

NOTE: The operation "Replacing padding or sensor mat" ends here.

Replacing seat cover:

Pull trim threads (1) out of seat cover (2).

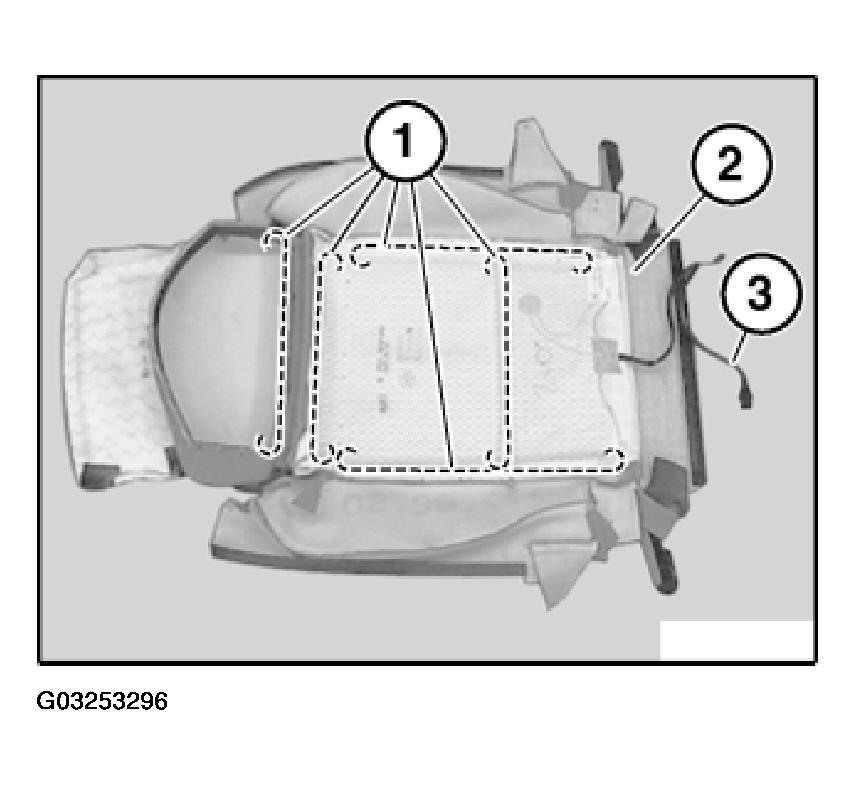

Fig 31: Pulling Trim Threads Out Of Seat Cover
G03253296Courtesy of BMW OF NORTH AMERICA, INC.

Cut new seat cover (2) to size and insert trim threads (1).

  1. 3 Seat heater cable
