51 24 110 Removing and installing/replacing lock for rear lid upper section

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear window wiper motor. 61 61 270 REMOVING AND INSTALLING MOUNTING BRACKET WITH WIPER MOTOR .

Disconnect plug connection (2).

Release screws (1) and remove rear lid lock (3).

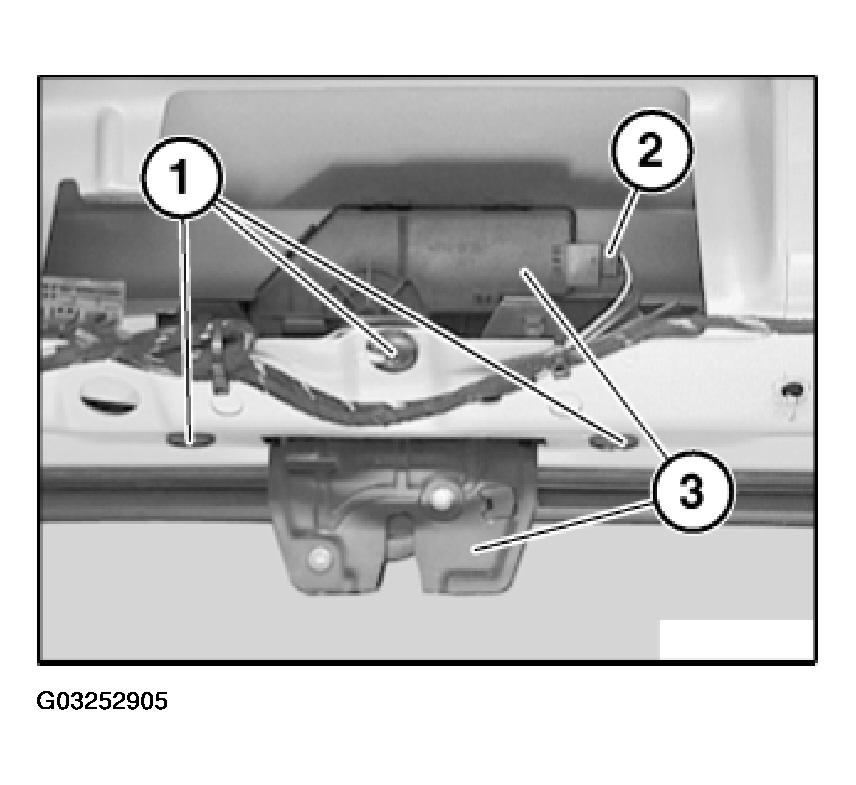

Fig 1: Removing Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip emergency actuating mechanism (1) from rear lid lock (2).

Installation:

Adjust rear lid latch (striker) for upper section of rear lid lock.

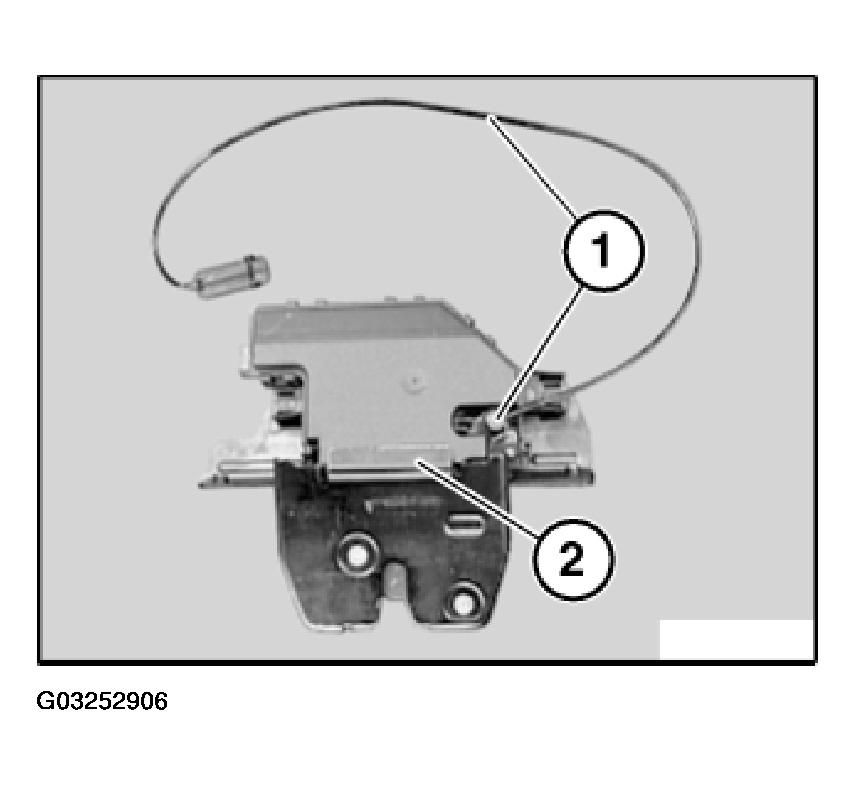

Fig 2: Uncliping Emergency Actuating Mechanism From Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Closing bracket and rear lid lock must not be greased.
