Handle Strip After 09/01 On Rear Lid Before 09/01:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Use repair kit.

Fit new (closed) expansion nuts (1).

Clean area of handle strip (grease-free).

Pull off round film (2) from liner (4) and seal left bore hole.

Pull off long film (3) from liner (4), seal right bore hole and both elongated holes.

The liner is the protective film on the bonding area.

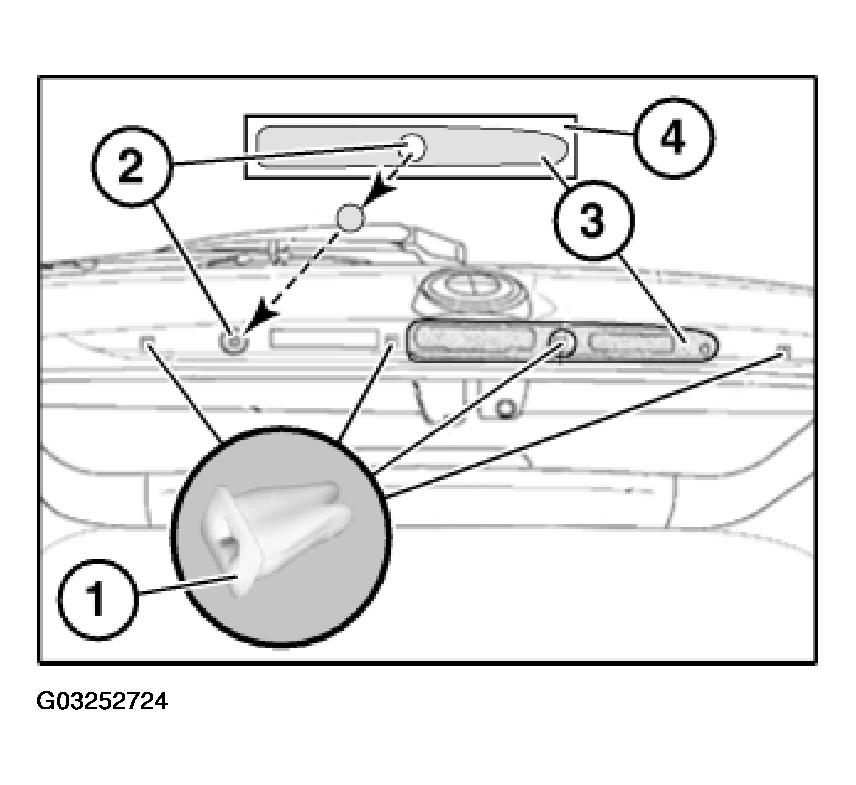

Fig 1: Installing Expansion Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Attach seal (1) over plug connection (2) of new handle strip (3).

Seal (4) must not be damaged.

Use only new screws (3.5 x 13 mm).

Installation:

Perform function check with trunk lid open.

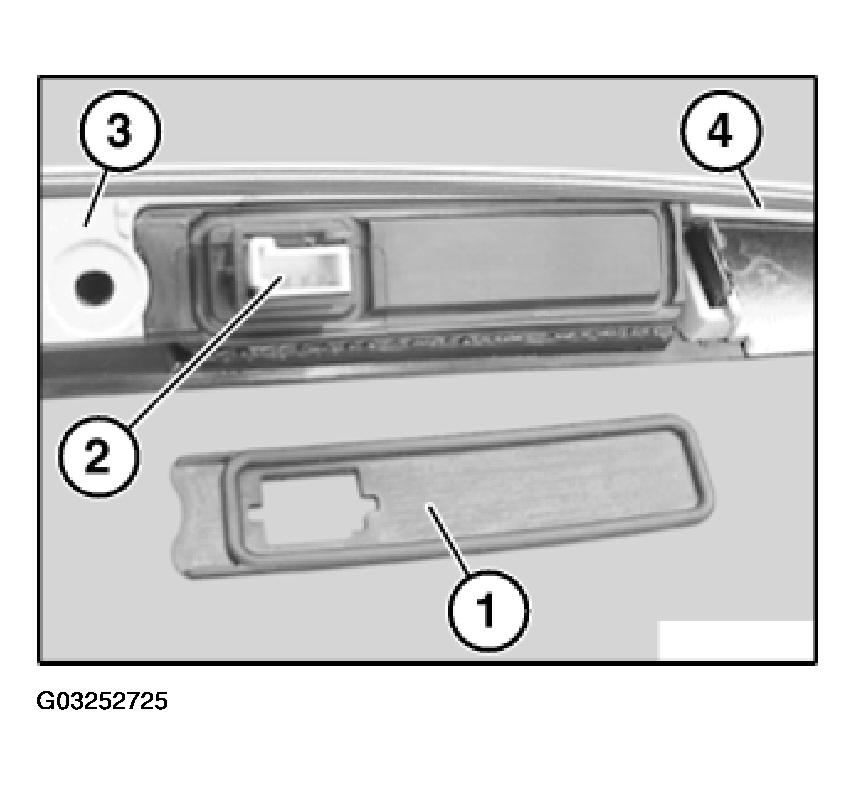

Fig 2: Attaching Seal Over Plug Connection Of Handle Strip

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Scope of work for "Replacing handle strip after 09/01 on rear lid before 09/01" ends here.
