Difference Between Versions Before And After 09/01:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Version before 09/01
- 1) Wide seal over entire handle strip.
- 2) Open microswitch.
- 3) Plug connection.
Version after 09/01
- 4) Narrow seal only at top over entire handle strip.
- 5) Plug connection.
- 6) Small seal around plug connection (5).

  Fig 1: Identifying Components
  Courtesy of BMW OF NORTH AMERICA, INC.

Lever light strip (1) on left/right out of recess (2) and remove.

Detach bulb (3) on left/right.

Installation:

Perform function check with trunk lid open.

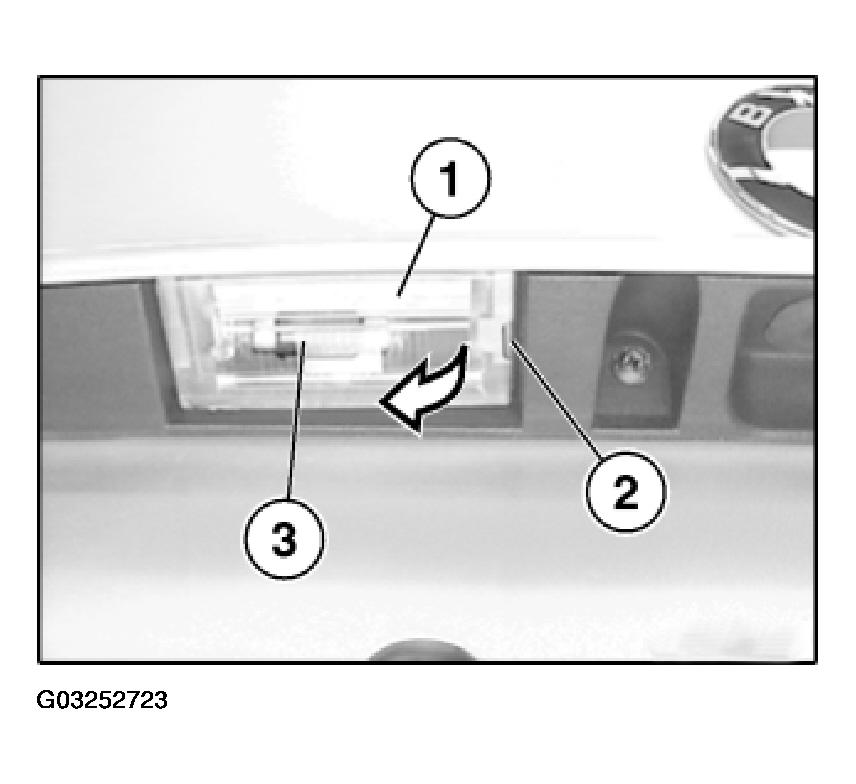

Fig 2: Detaching Bulb On Left/Right

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Scope of work for "Replacing handle strip (on rear lid after 09/01)" ends here.
