51 13 402 Removing and installing handle strip (on trunk lid)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

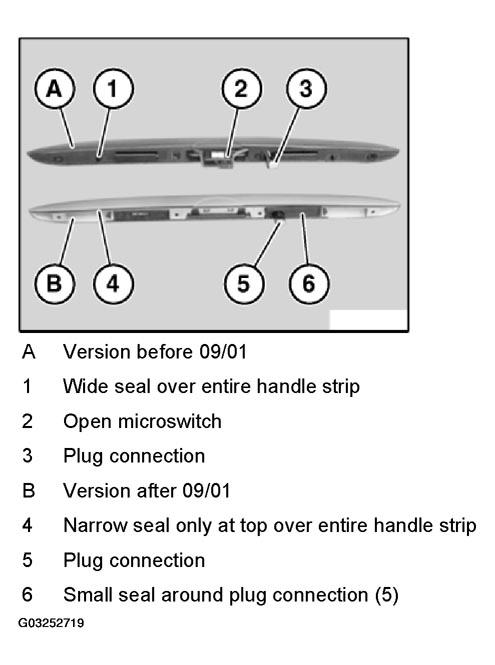

Difference between versions before and after 09/01:

Version before 09/01
- 1) Wide seal over entire handle strip
- 2) Open microswitch
- 3) Plug connection
Version after 09/01
- 4) Narrow seal only at top over entire handle strip
- 5) Plug connection
- 6) Small seal around plug connection (5)

  Fig 1: Identifying Components
  Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

In version (B), closed expansion nuts and shorter screws (3.5 x 13 mm) must be used.

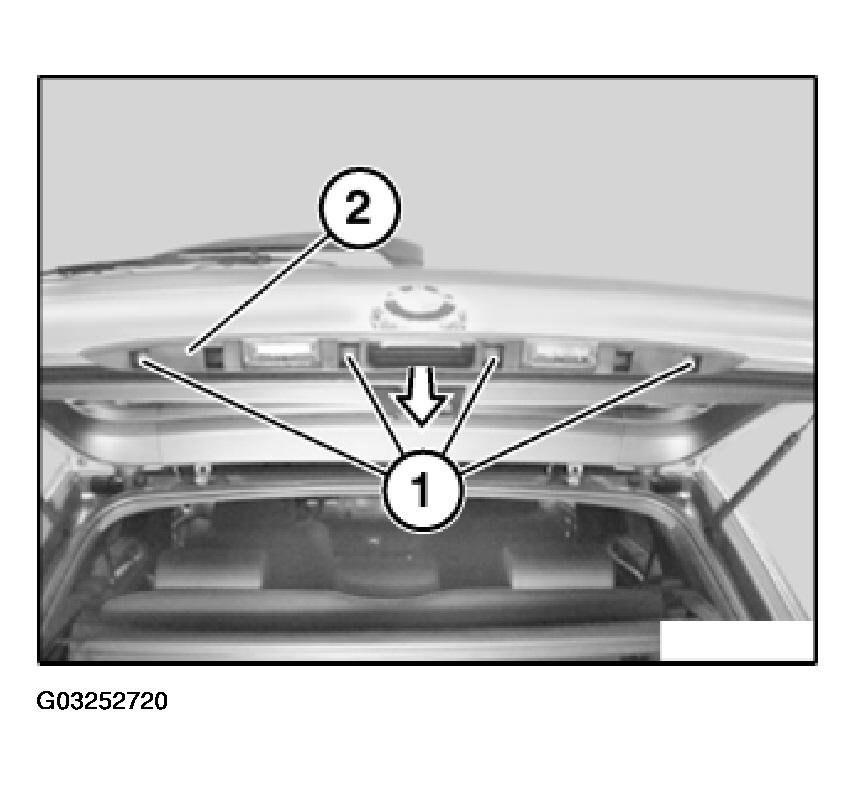

Release screws (1) and withdraw handle strip (2) somewhat.

Fig 2: Releasing Screws And Withdraw Handle Strip Somewhat

Courtesy of BMW OF NORTH AMERICA, INC.

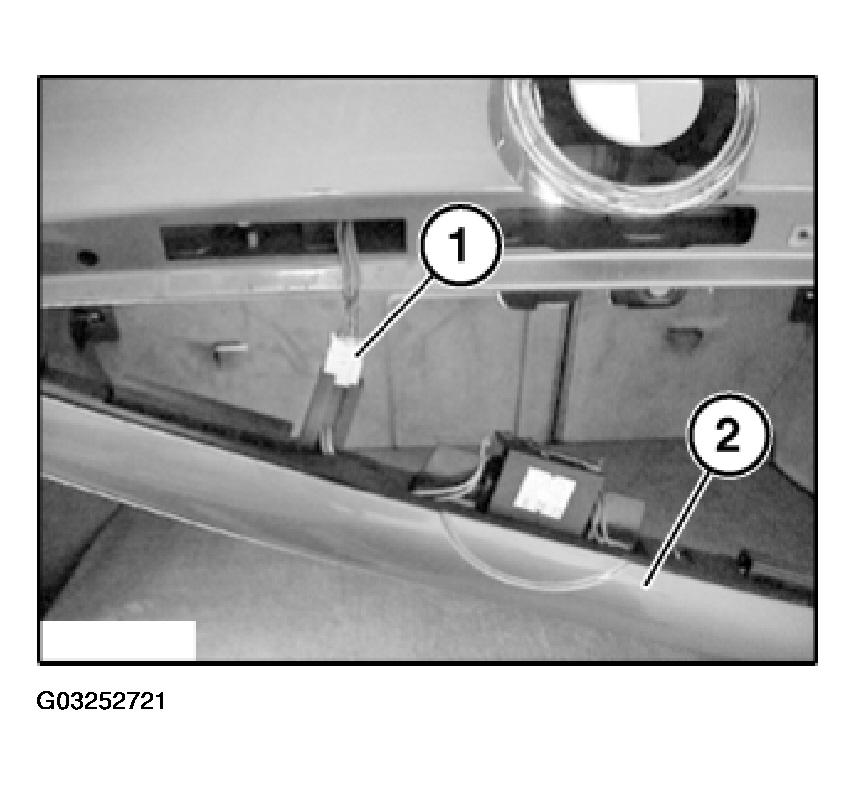

Disconnect plug connection (1) and remove handle strip (2).

Installation:

Seal(s) of handle strip (2) must not be damaged.

Tightening torque, see 51 13 4AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Perform function check with trunk lid open.

Fig 3: Disconnecting Plug Connection And Removing Handle Strip

Courtesy of BMW OF NORTH AMERICA, INC.
