51 13 115 Removing and installing/replacing cowl panel cover: Notes

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove both windshield wiper arms. 61 61 081 REPLACING LEFT OR RIGHT WINDSHIELD WIPER ARMS .

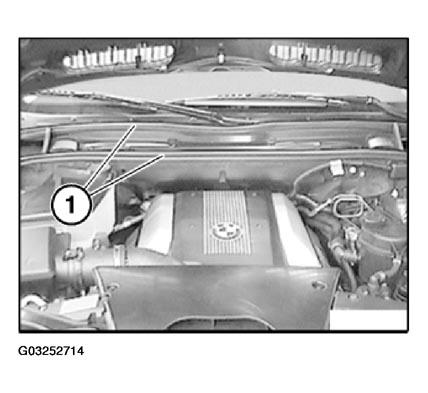

Detach seals (1).

Fig 1: Detaching Seals

Courtesy of BMW OF NORTH AMERICA, INC.

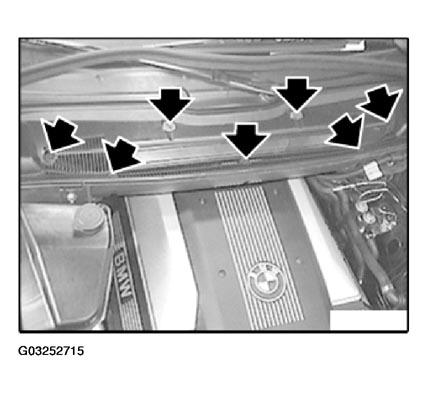

Turn tommy bar through 90° and lift off cover.

Fig 2: Turning Tommy Bar Through 90° And Lift Off Cover

Courtesy of BMW OF NORTH AMERICA, INC.

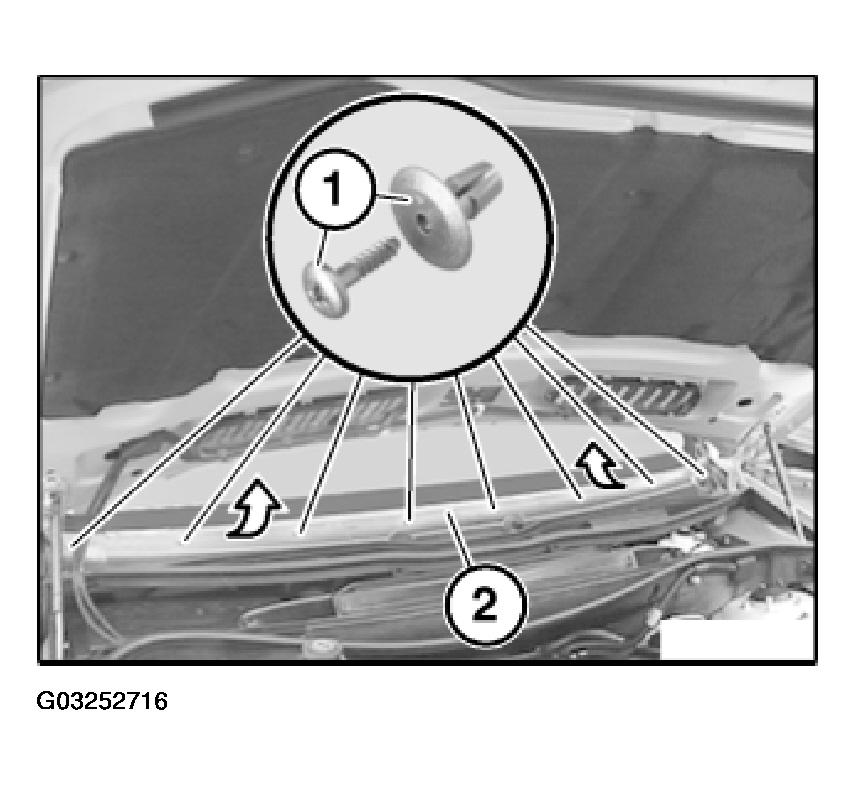

Release expansion rivets (1).

Remove cover (2) for cowl panel.

Fig 3: Releasing Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.
