51 13 065 Removing and installing or replacing finisher on left or right headlight housing: Installation:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Mount (2) and hooks (3) and (4) of trim (1) must not be damaged.

Seal (5) must be correctly seated.

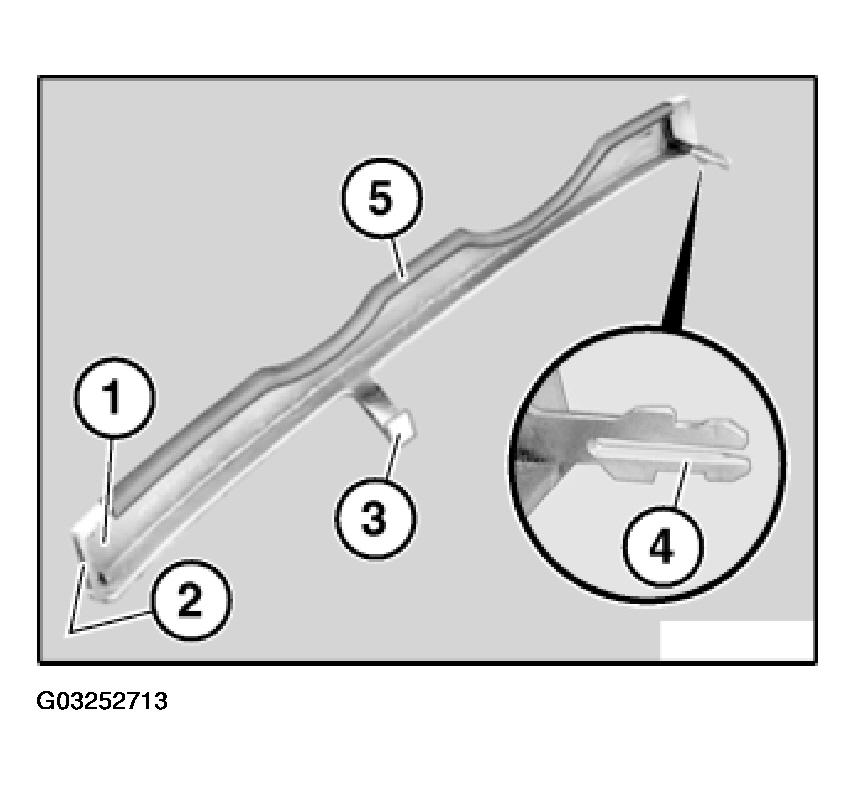

Fig 1: Checking Mount And Hooks

Courtesy of BMW OF NORTH AMERICA, INC.
