Removal & Installation

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for tail panel at top. See 51 47 101 Removing and installing/replacing luggage compartment floor trim panel .

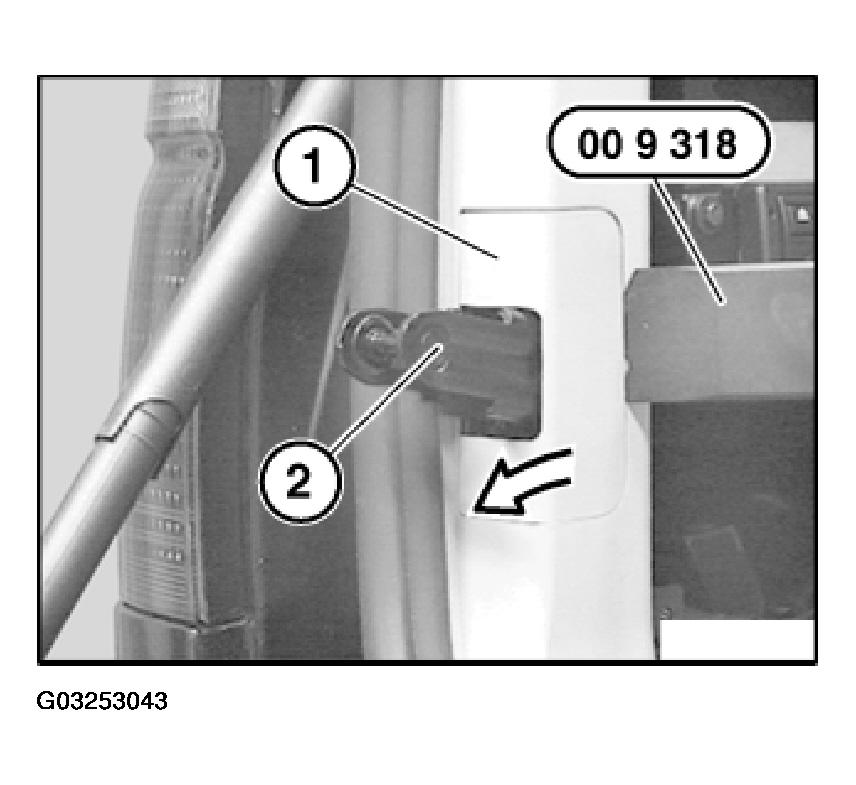

Lever out cover (1) on rear lid lock (2) with (universal wedge) special tool 00 9 318.

Detach rear lid rubber.

Fig 1: Detaching Rear Lid Rubber

Courtesy of BMW OF NORTH AMERICA, INC.

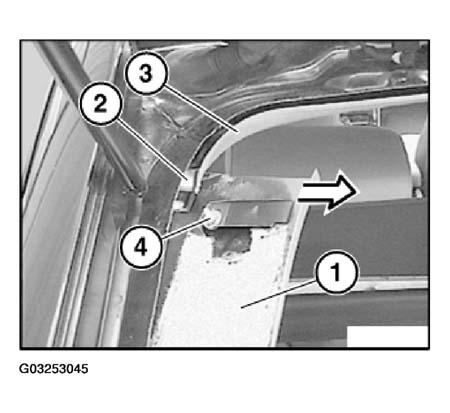

Release screw (1).

Detach panel (2) at top approx. 30 mm from roof pillar.

Fig 2: Releasing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Pull panel (1) to one side.

Detach lug (2) from headliner (3).

Installation:

If necessary, replace faulty lug (2) or clip (4).

Fig 3: Detaching Lug From Headliner

Courtesy of BMW OF NORTH AMERICA, INC.

Lift panel (1) over rear lid lock (2) and remove.

Fig 4: Lifting Panel Over Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

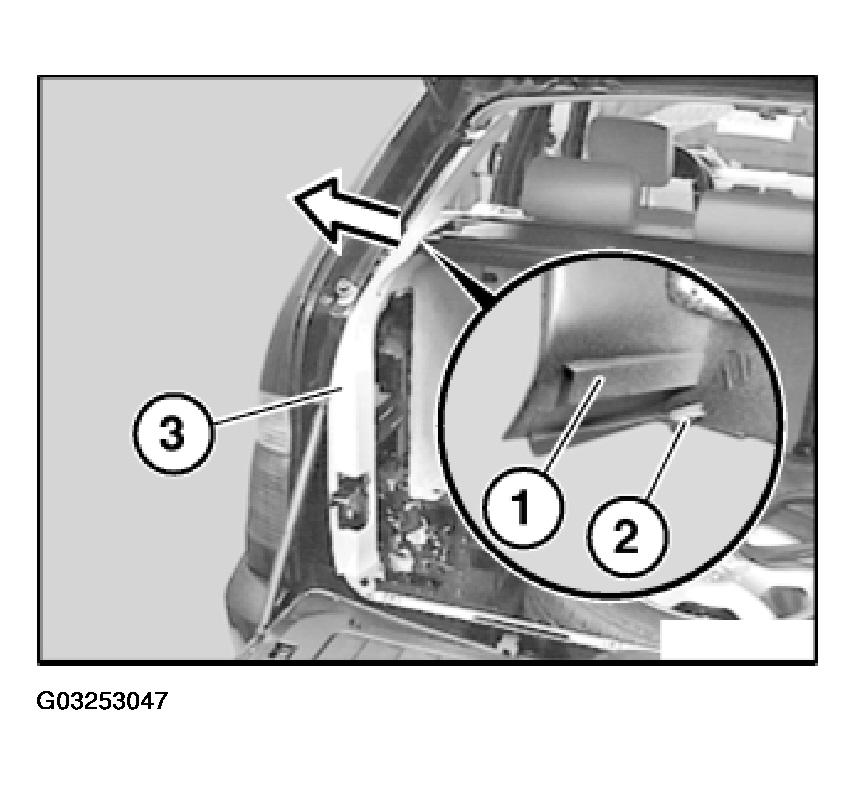

Make sure guide (1) and journal (2) are correctly seated on panel (3).

Fig 5: Inspecting Guide And Journal Are Correctly Seated On Panel

Courtesy of BMW OF NORTH AMERICA, INC.
