51 43 251 Removing and installing/replacing trim panel for left or right rear roof pillar (C pillar)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove rest side section on rear seat backrest. See 52 26 008 REMOVING AND INSTALLING/REPLACING SIDE SECTION ON REAR SEAT BACKREST .

Remove rear seat.

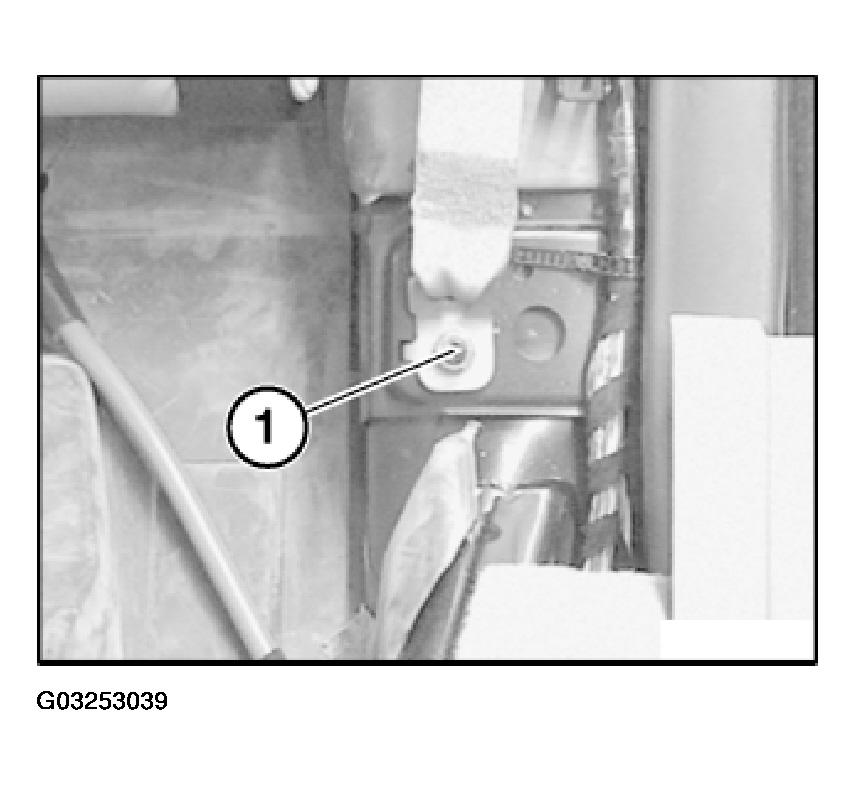

Release belt nut (1).

Fig 1: Releasing Belt Nut

Courtesy of BMW OF NORTH AMERICA, INC.

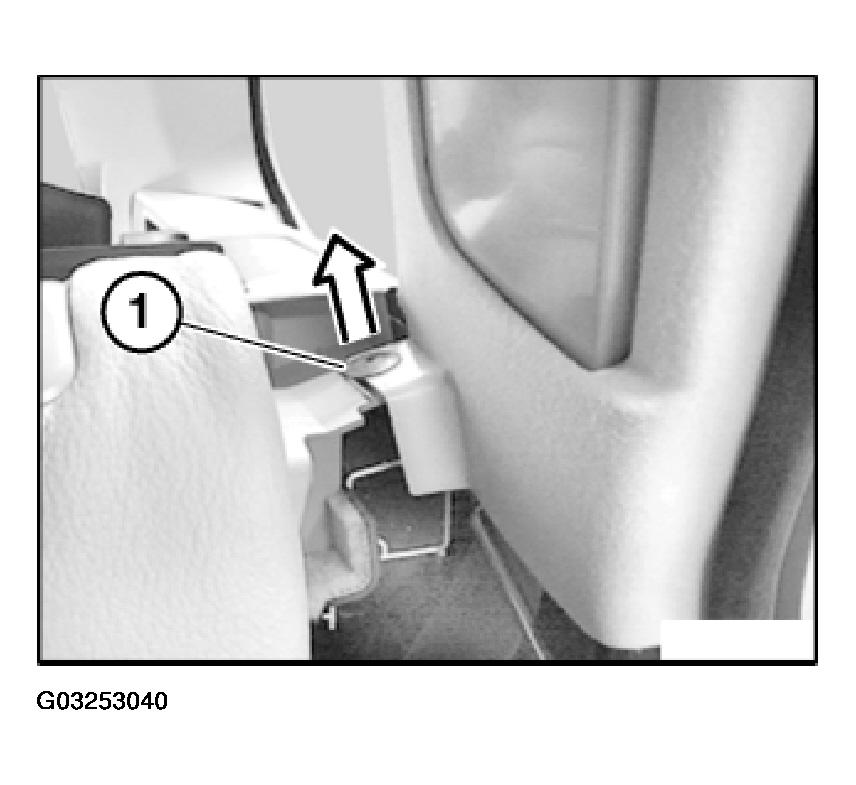

Lift out expanding rivet (1).

Fig 2: Lifting Out Expanding Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

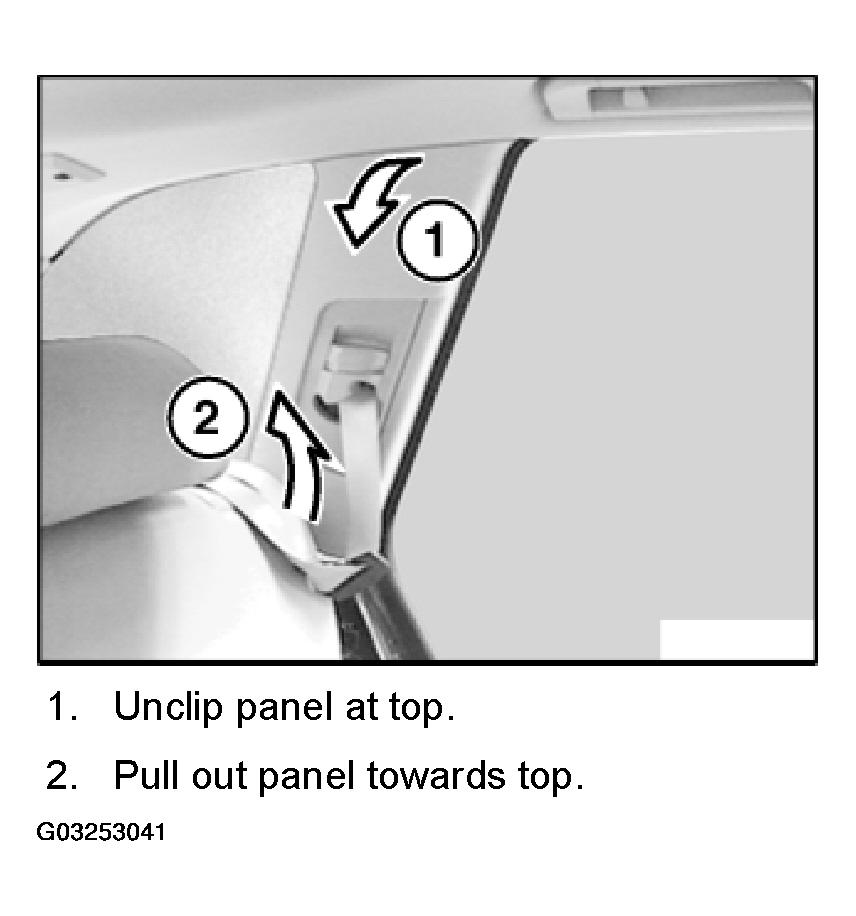

Unclip panel at top.
Pull out panel towards top.

Feed out seat belt.

Fig 3: Uncliping Panel At Top

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

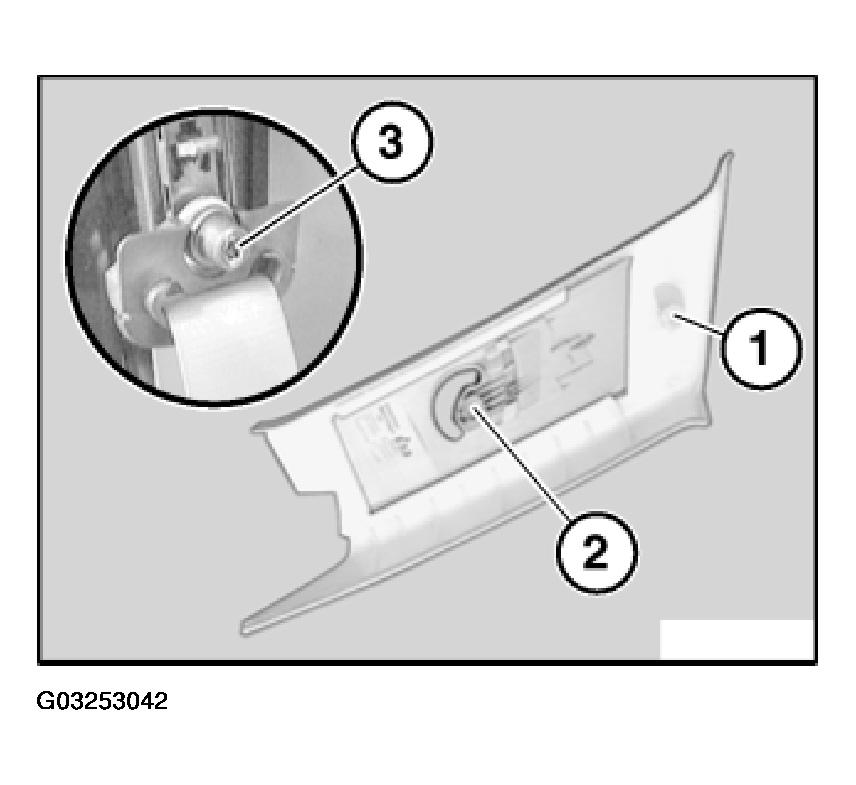

If necessary, replace defective clip (1).

Belt adjustment fixture (2) must enclose head of belt screw (3).

Fig 4: Checking Clip

Courtesy of BMW OF NORTH AMERICA, INC.
