51 43 150 Removing and installing or replacing trim for left or right door pillar (bottom)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove front entrance cover strip. See 51 47 000 Removing And Installing/Replacing The Front (Inside) Left Or Right Rocker Panel Strip .

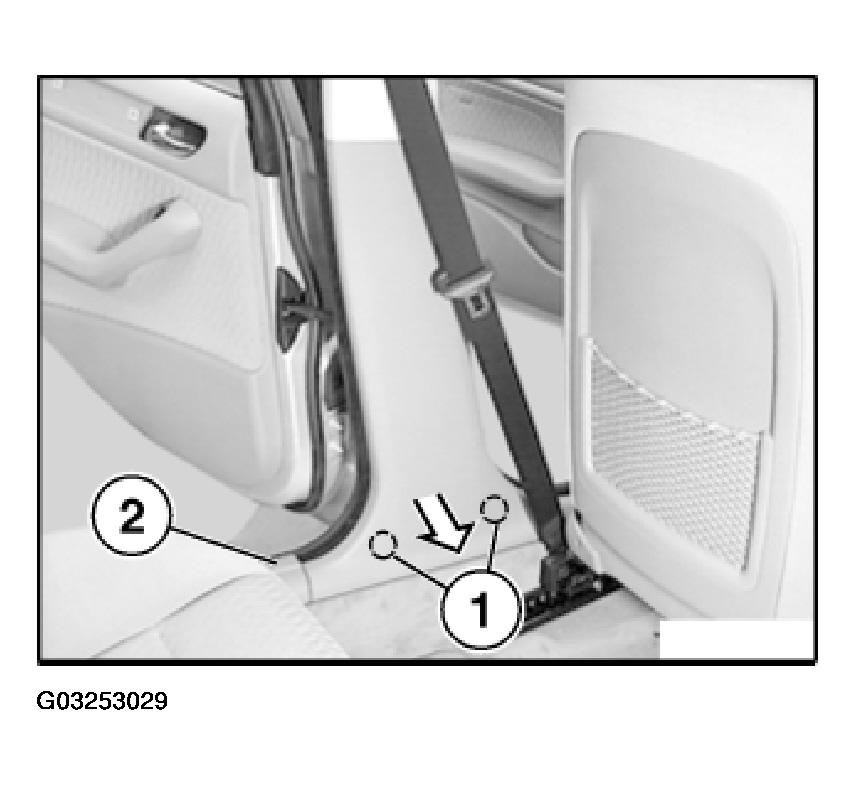

Remove rear entrance cover strip (2).

Partially remove mucket from B-pillar finisher.

Unclip clips (1) in lower panel.

Fig 1: Uncliping Clips In Lower Panel

G03253029

Courtesy of BMW OF NORTH AMERICA, INC.

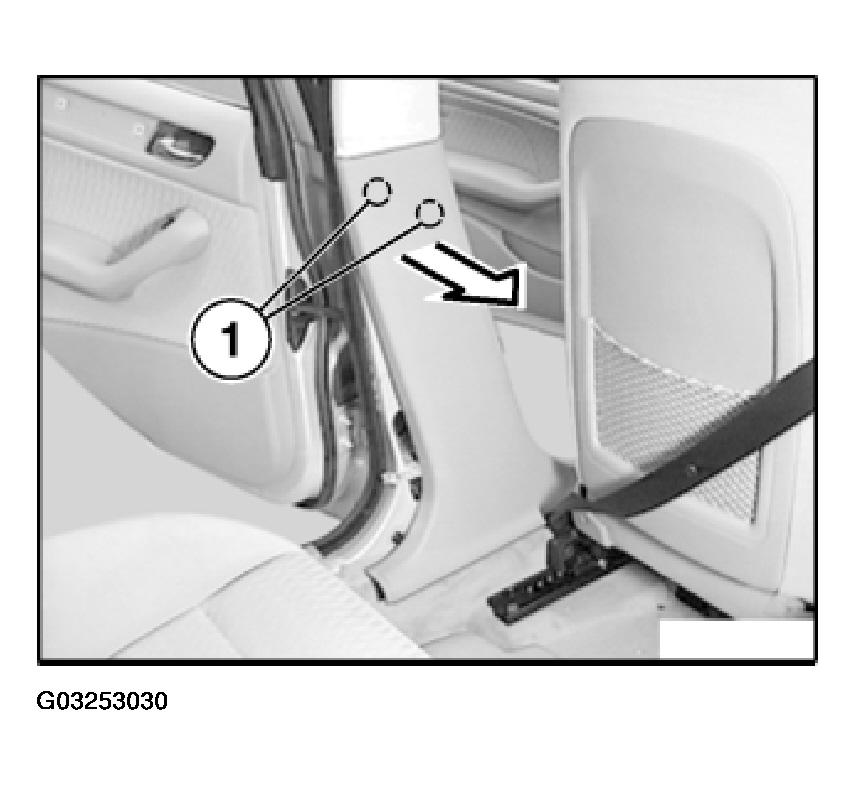

Unclip clips (1) in lower panel.

Fig 2: Uncliping Clips In Lower Panel

G03253030

Courtesy of BMW OF NORTH AMERICA, INC.

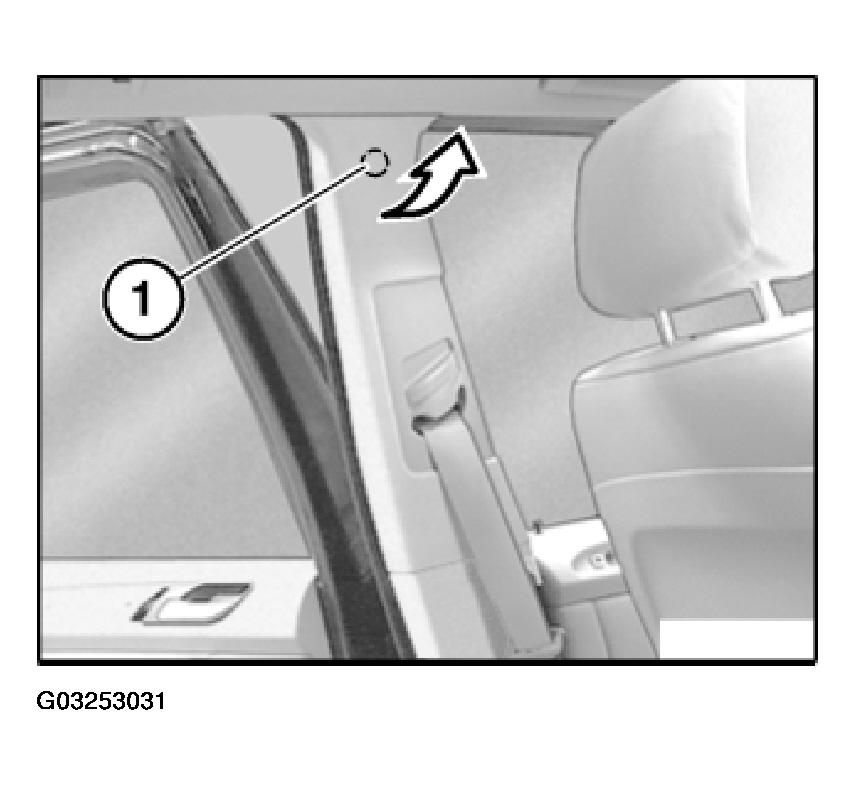

Unclip clip (1) in upper panel.

Tilt upper panel upwards as far as possible.

Fig 3: Uncliping Clip In Upper Panel

G03253031

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

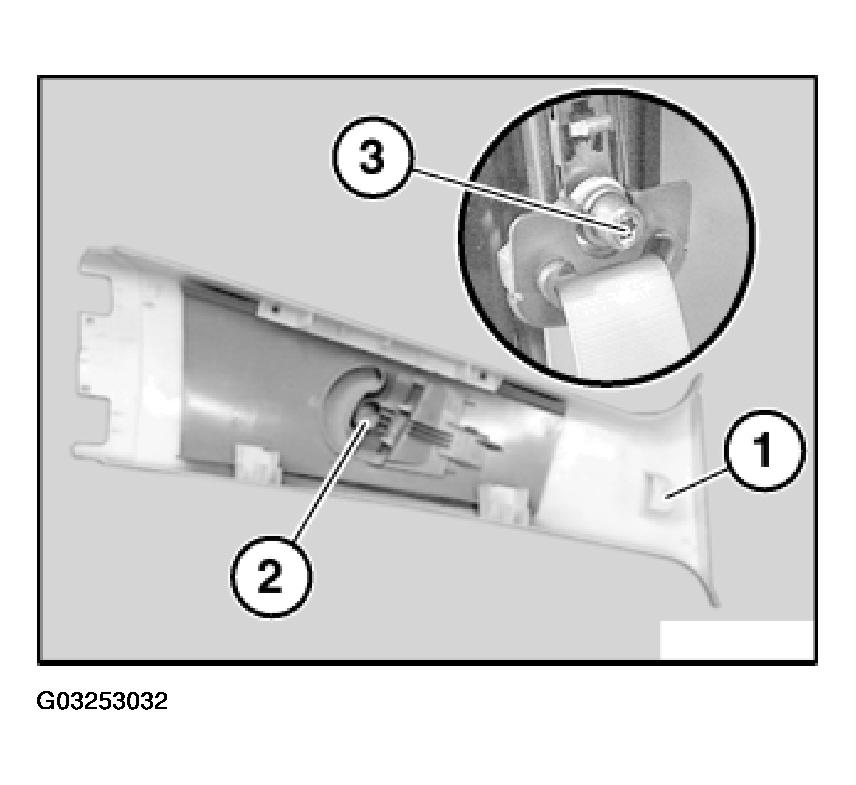

If necessary, replace defective clip (1).

Belt adjustment fixture (2) must enclose head of belt screw (3).

Fig 4: Checking Clip

G03253032

Courtesy of BMW OF NORTH AMERICA, INC.

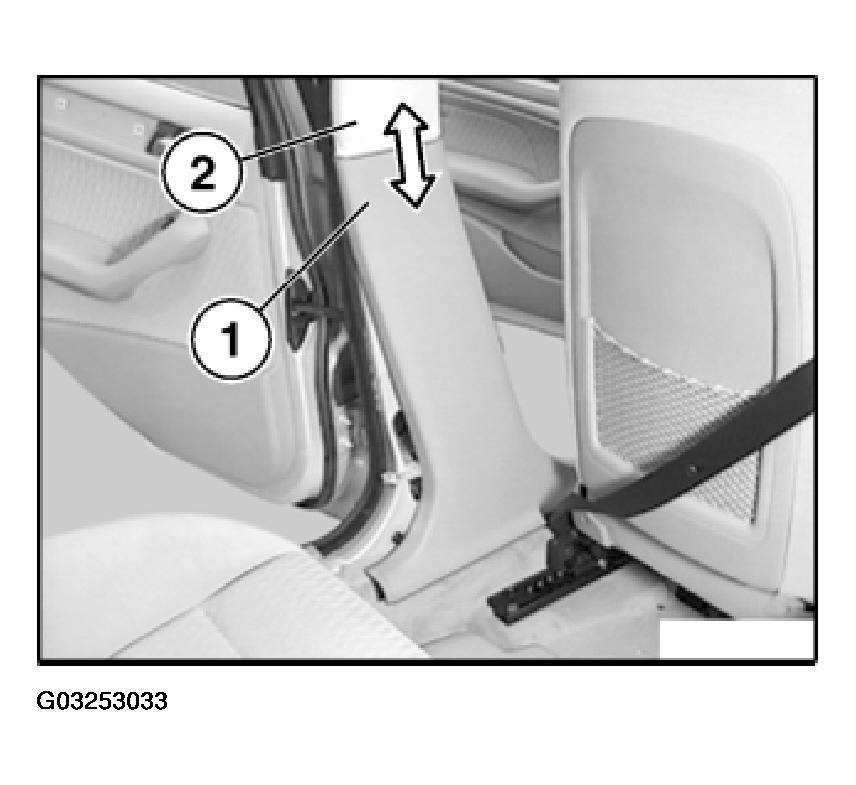

Detach lower panel (1) carefully from upper panel (2).

Fig 5: Detaching Lower Panel

G03253033

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

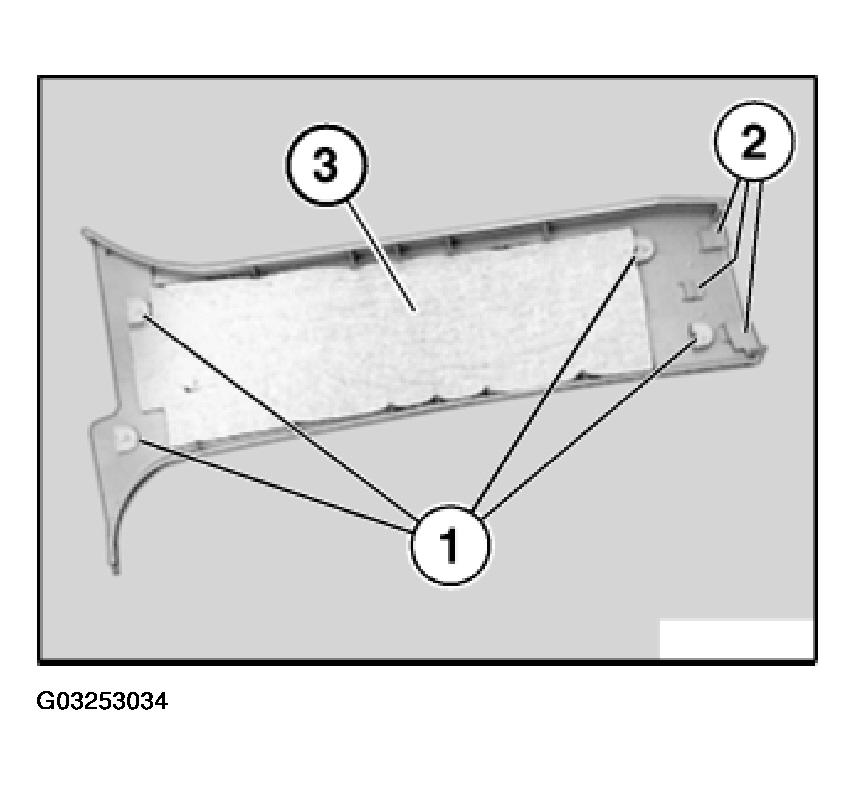

If necessary, replace defective clips (1).

Guides (2) on trim (3) must not be damaged.

Fig 6: Checking Clips

G03253034

Courtesy of BMW OF NORTH AMERICA, INC.
