51 43 148 Removing and installing or replacing trim on left or right door pillar (top)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Move front seat upwards.

Release seatbelt screw (1) on front seat and feed out seatbelt strap (2).

Installation:

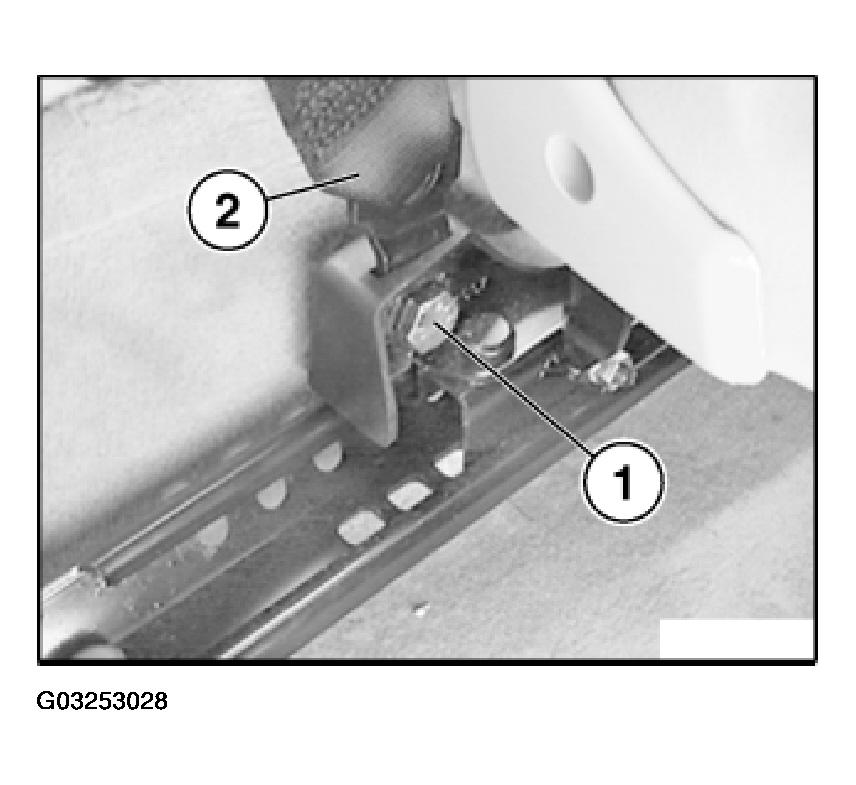

Fig 1: Releasing Seatbelt Screw On Front Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Subsequent work is described in:

Removing panel for door pillar (bottom).
