51 43 075 Removing and installing/replacing side trim panel, footwell, on A-pillar, right: Installation:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, replace faulty clips (1) in side trim panel (2).

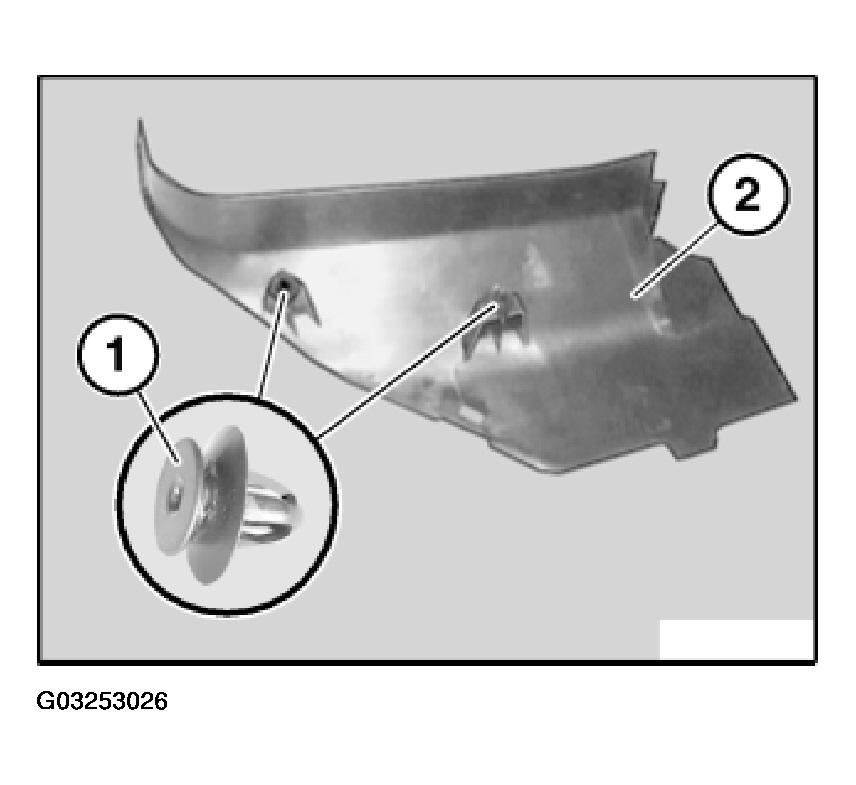

Fig 1: Checking Clips In Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert guide (1) of side trim panel (2) into slot in carpet.

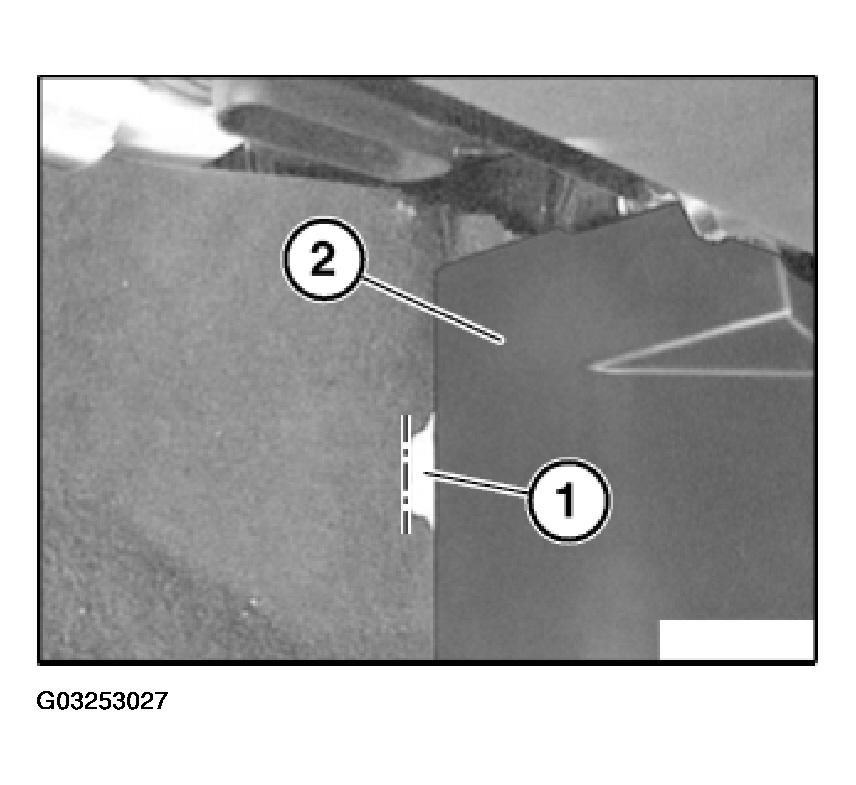

Fig 2: Inserting Guide Of Side Trim Panel Into Slot In Carpet

Courtesy of BMW OF NORTH AMERICA, INC.
