51 44 020 Removing and installing/replacing bracket on roof lining at front: Notes

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove lighting.

Open glasses compartment (1).

Unfasten screws (2).

Lower bracket, disconnect plug connections and remove bracket.

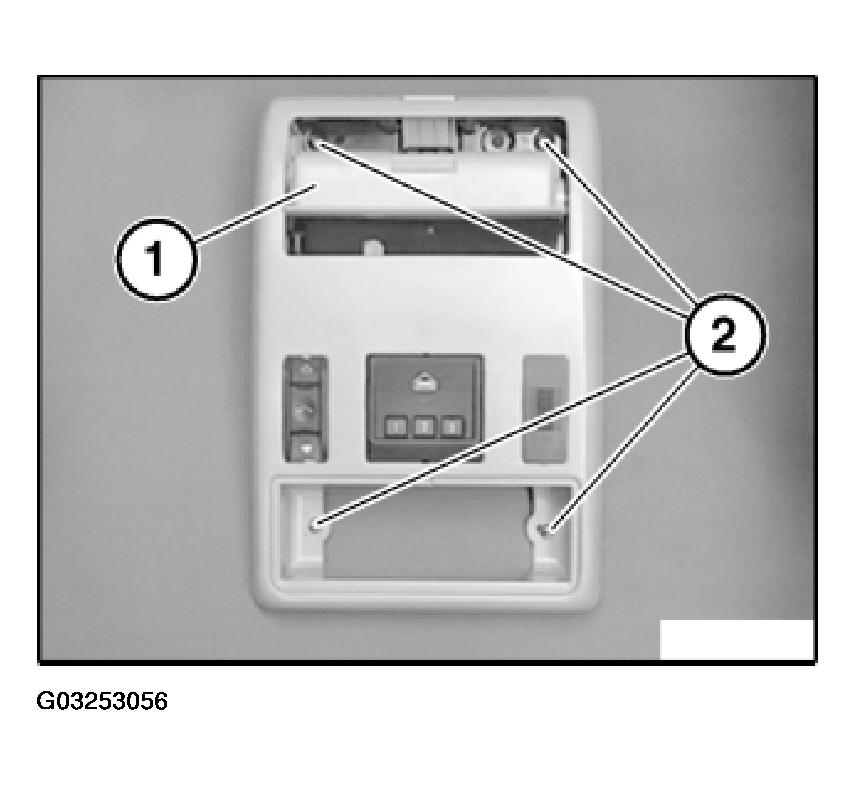

Fig 1: Unfastening Screws

Courtesy of BMW OF NORTH AMERICA, INC.
