51 44 013 Removing and installing roofliner (on version with panorama sunroof)
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Operation is identical up to work steps for panorama sunroof to:
Removing and installing/replacing roofliner (with slide/tilt sunroof)
IMPORTANT:
The following tasks must be carried out with a second person assisting:

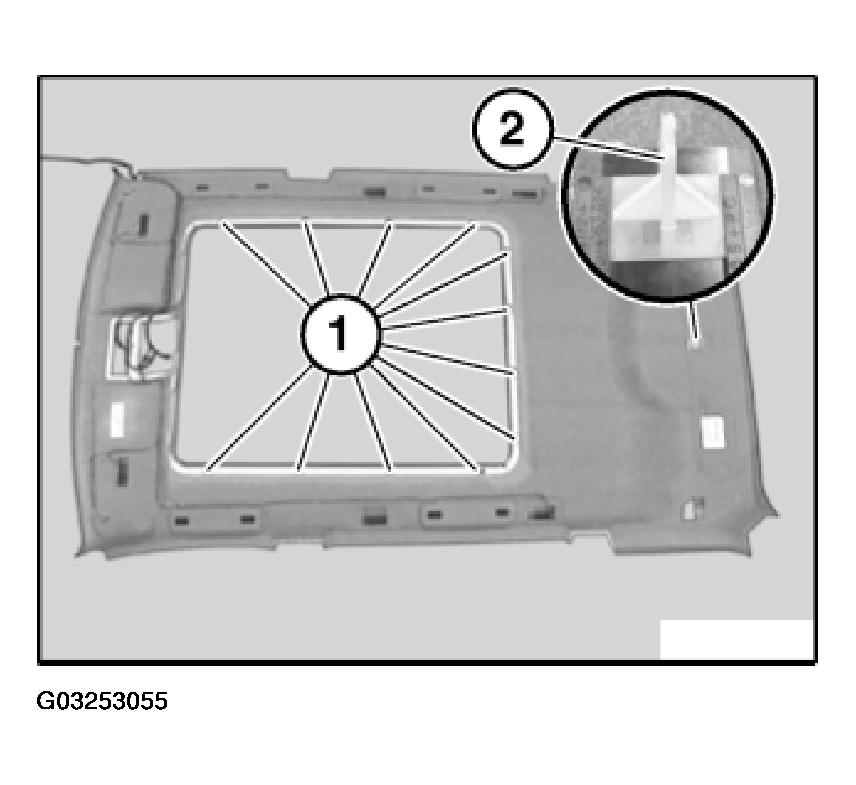

Unclip clips (1) in sunroof frame area towards bottom.

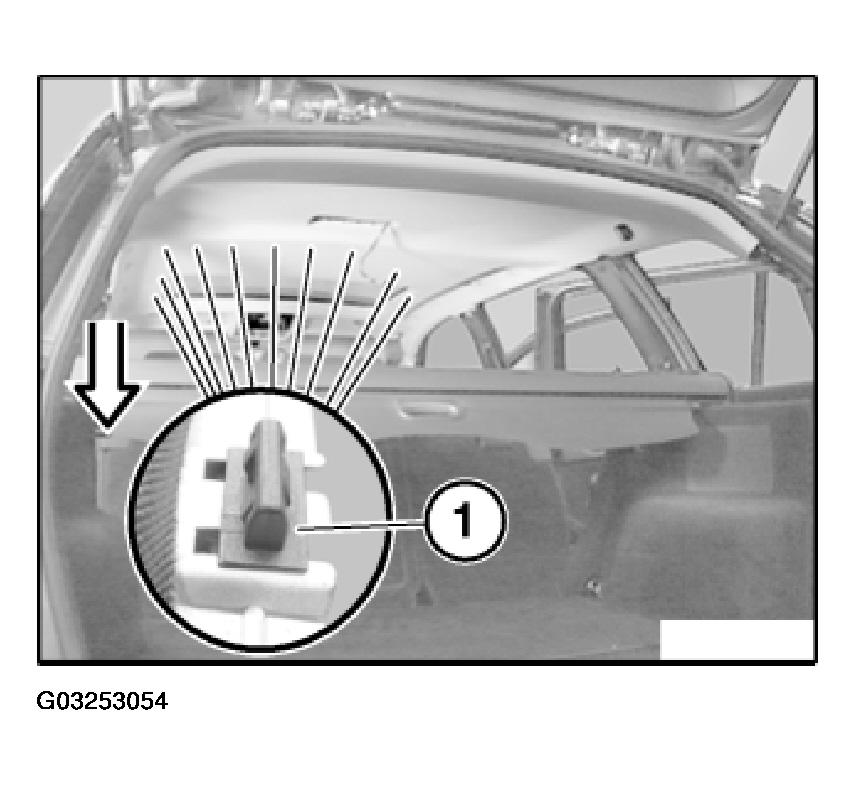

Extend rear roofliner towards bottom out of guide.
Turn headliner and remove towards rear.
Installation:
Clips (1) and guide (2) must not be damaged.
If necessary, replace clips (1) and guide (2).
