51 34 425 Removing and installing/replacing trim on window frame of rear door, rear left or right

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove window cavity covering strip on outside. See 51 22 300 Removing And Installing/Replacing Window Cavity Cover Strip On Rear Door On Left Or Right .

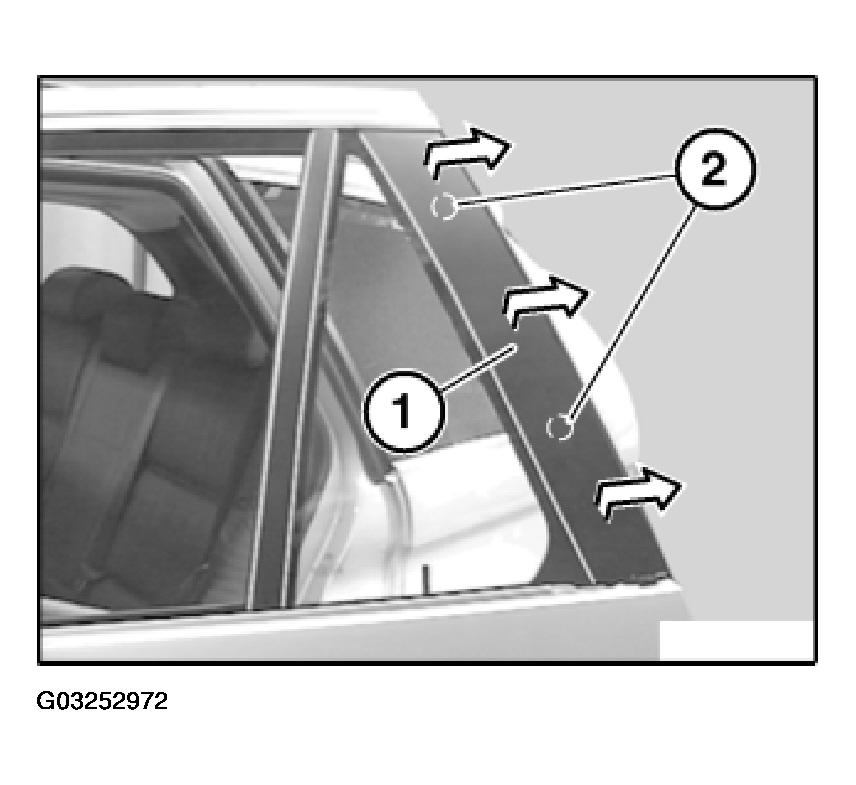

Unclip trim (1) from clips (2) and detach towards rear.

Fig 1: Uncliping Trim From Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

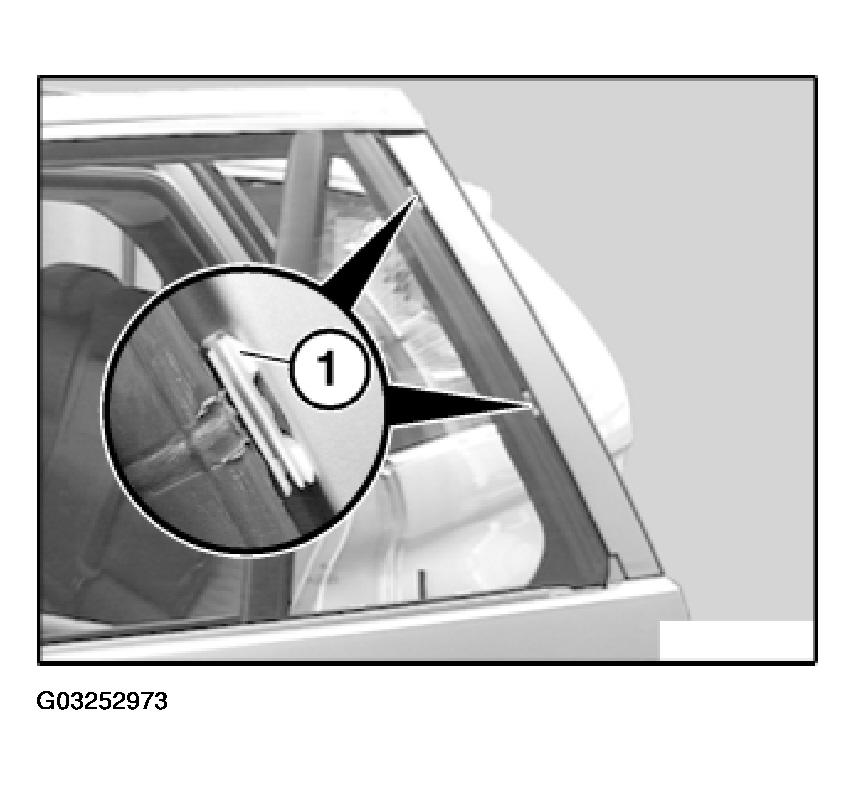

Retainers (1) must not be damaged.

Fig 2: Inspecting Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

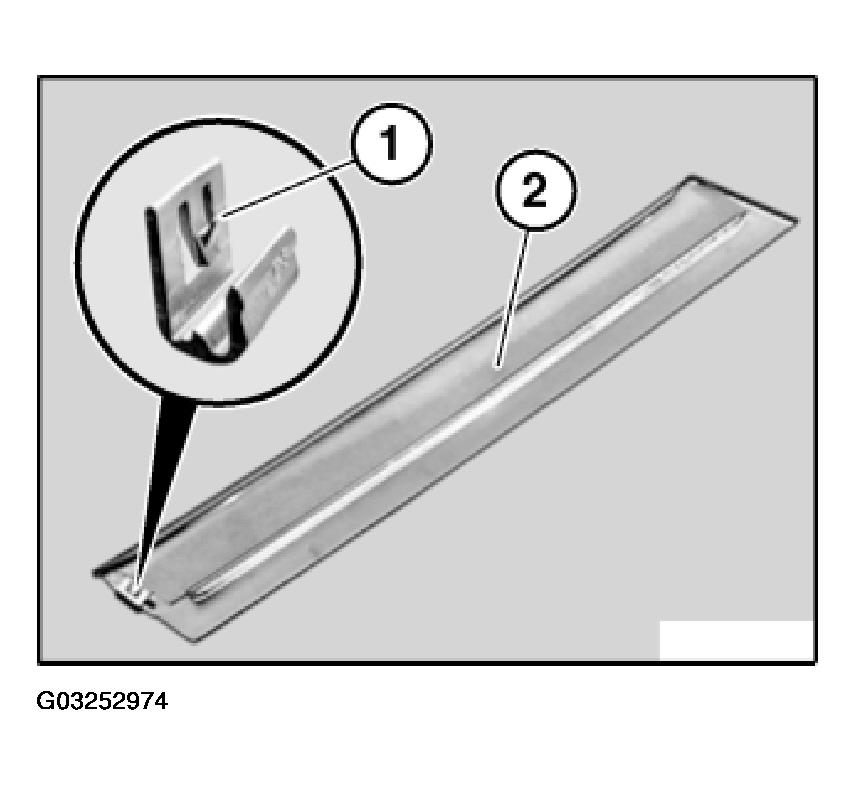

If necessary, replace faulty clips (1) on trim (2).

Fig 3: Inspecting Clips On Trim

Courtesy of BMW OF NORTH AMERICA, INC.
