51 34 160 Removing and installing/replacing cover (anti-trapping protection) on door window frame (rear door), inside left or right

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear door trim panel. See 51 42 000 Removing And Installing Rear Left Or Right Door Trim Panel .

Carefully lever out clip (1) and lever out trim (2) in rear area.

Disconnect plug connection (3).

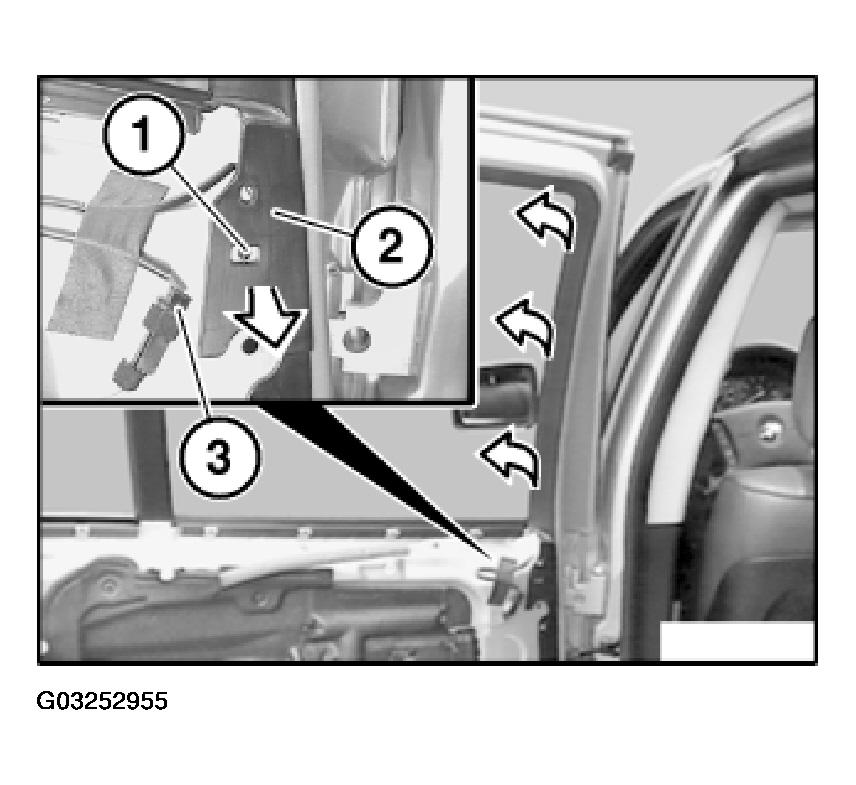

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully lever out clip (1).

Lift out cover (1) from fixed door window.

NOTE: Do not tear off cover (1) in area (2).

Lift out and remove cover (2).

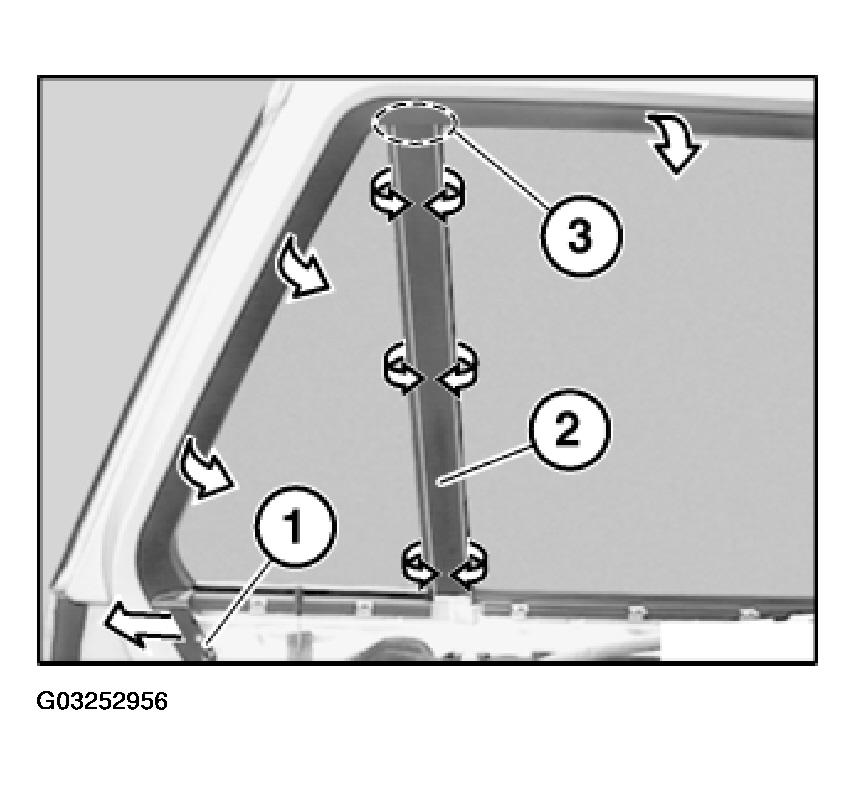

Fig 2: Lifting Out Cover From Fixed Door Window

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If applicable, replace defective clips (1).

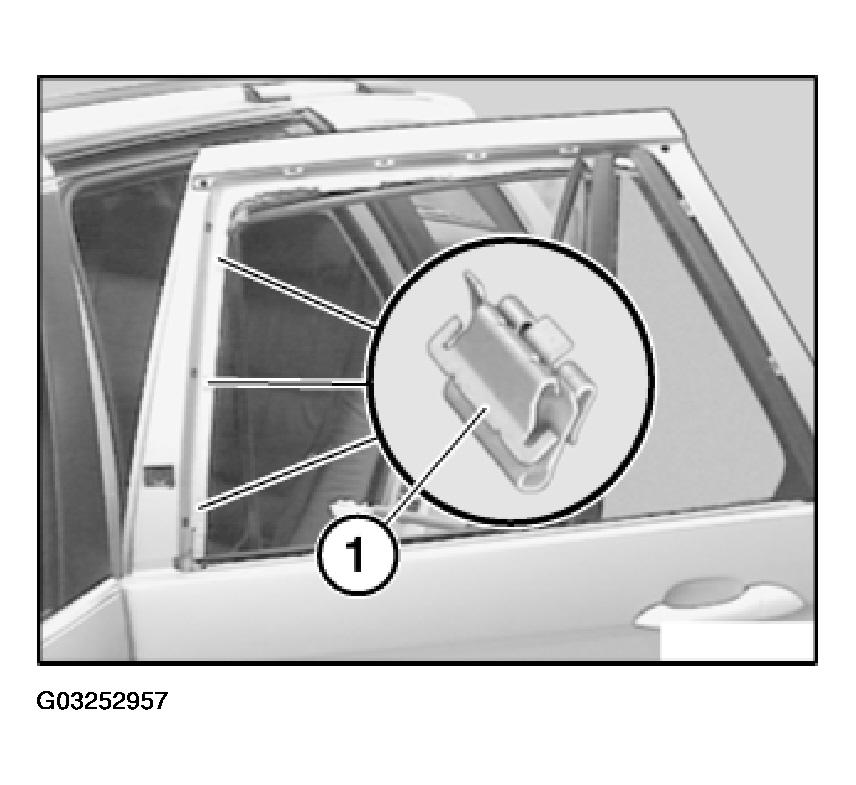

Fig 3: Inspecting Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connection (1) of cover (2) must not be damaged.

If necessary, replace faulty clip (3).

Clips (4) must not be damaged.

Carry out function check.

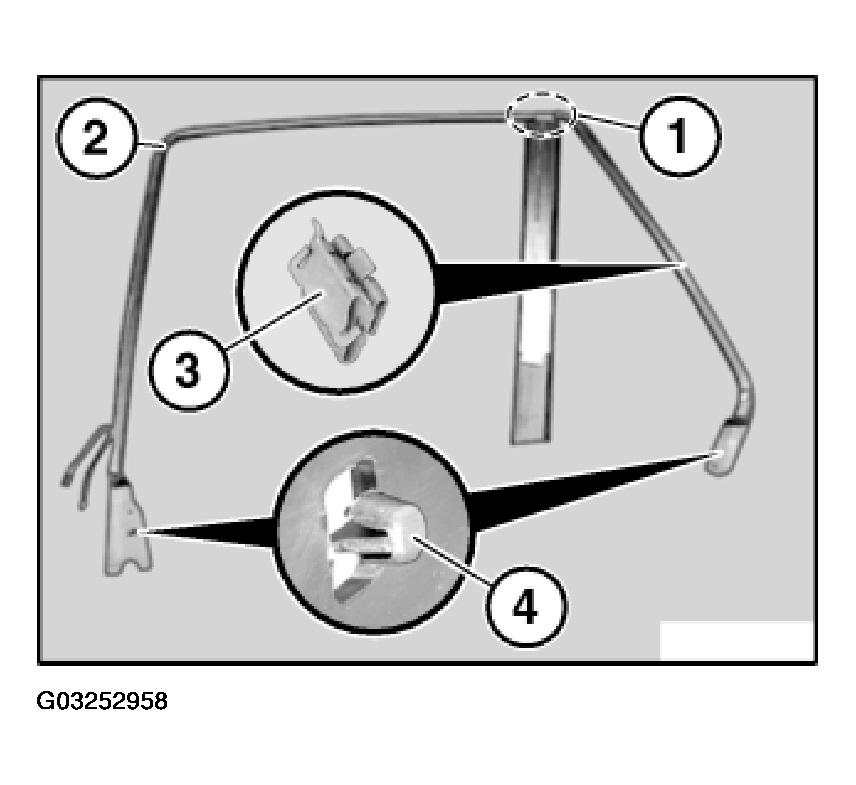

Fig 4: Inspecting Connection Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.
