Removal & Installation

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove side trim for rear lid upper section. See 51 49 053 Removing And Installing/Replacing Side Trim For Rear Lid Upper Section .

With special tool 00 9 317, unclip clips (1) in upper trim (4).

Feed trim (4) with swallow-tail guides (2) out of side trim (3).

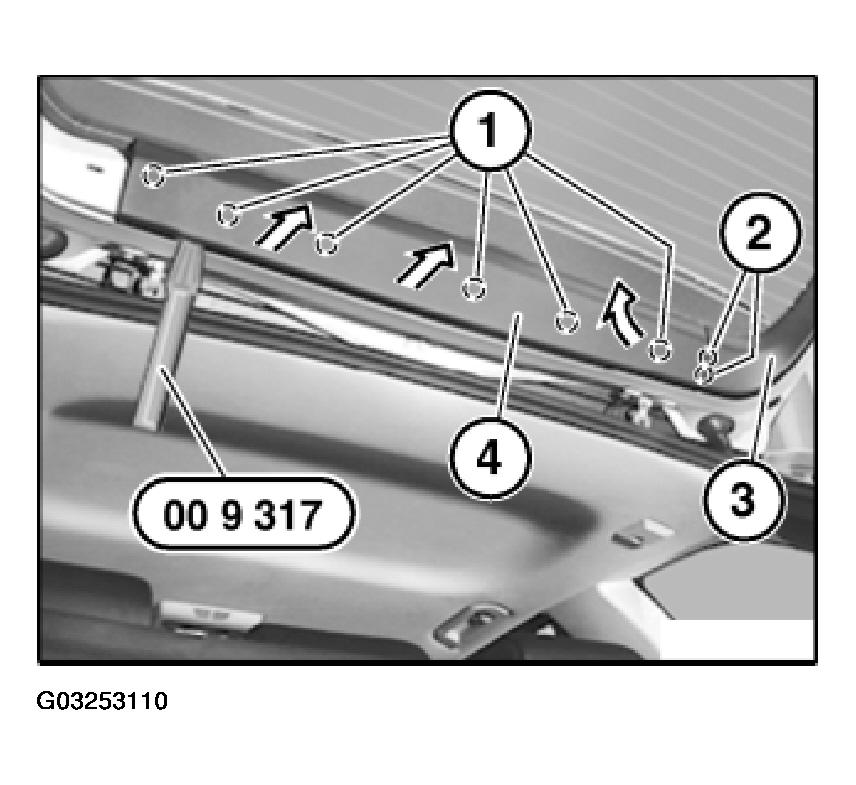

Fig 1: Uncliping Clips In Upper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, detach clips (1) from trim (3) and insert in rear lid.

Swallow-tail guides (2) must not be damaged.

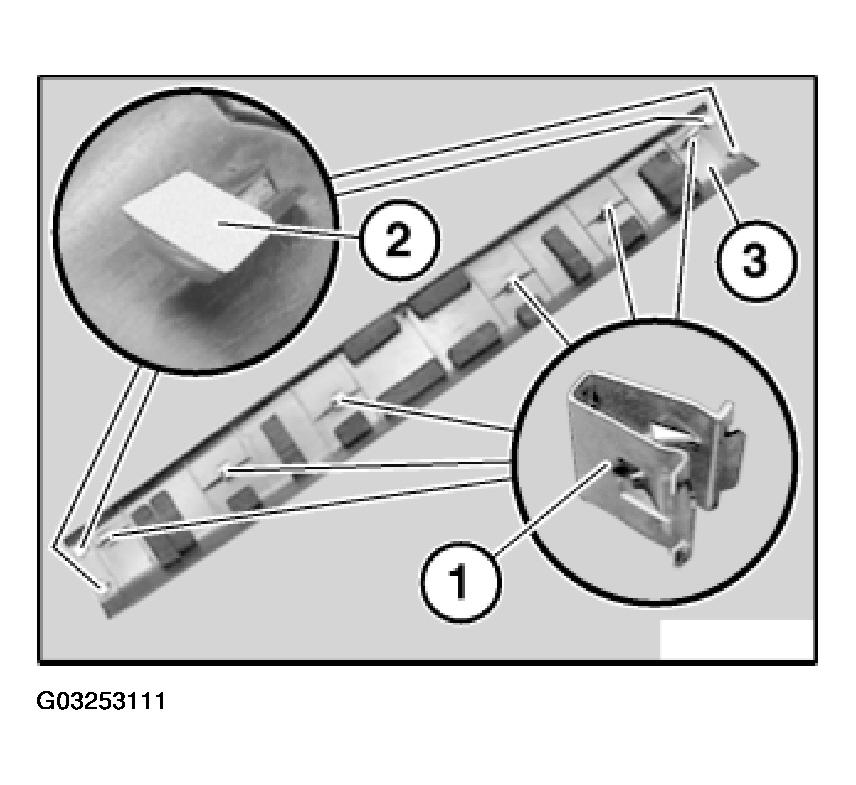

Fig 2: Detaching Clips From Trim

Courtesy of BMW OF NORTH AMERICA, INC.
