Removal & Installation

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Open rear lid at top.

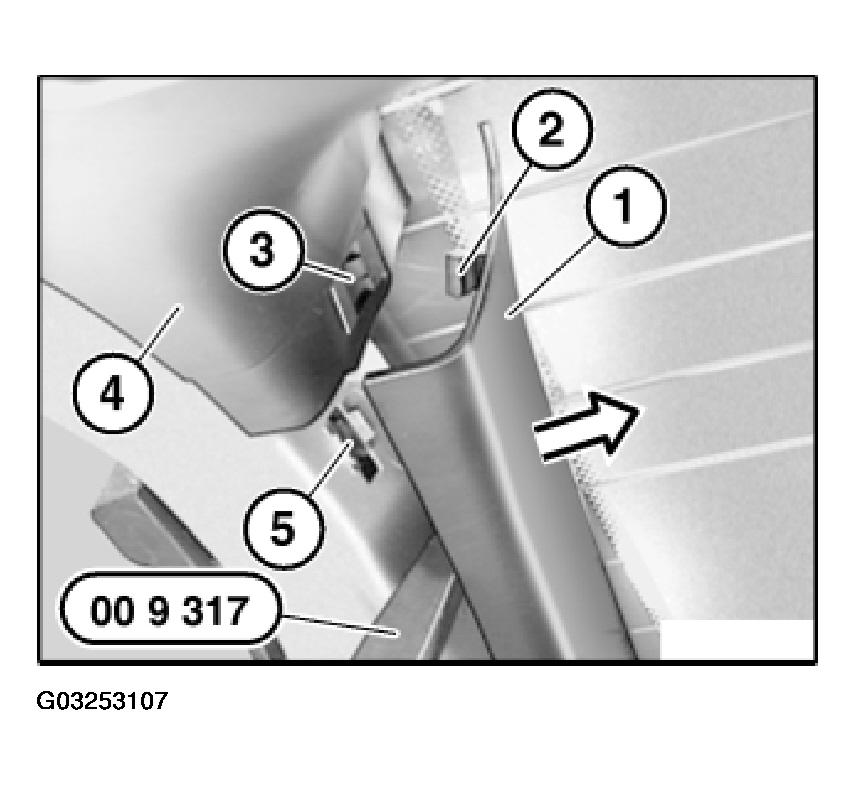

Using special tool 00 9 317, lever out side trim (1) on left/right with clip (2) from retainer (3) in lower trim (4).

Installation:

If necessary, replace faulty retainer (5).

Fig 1: Checking Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

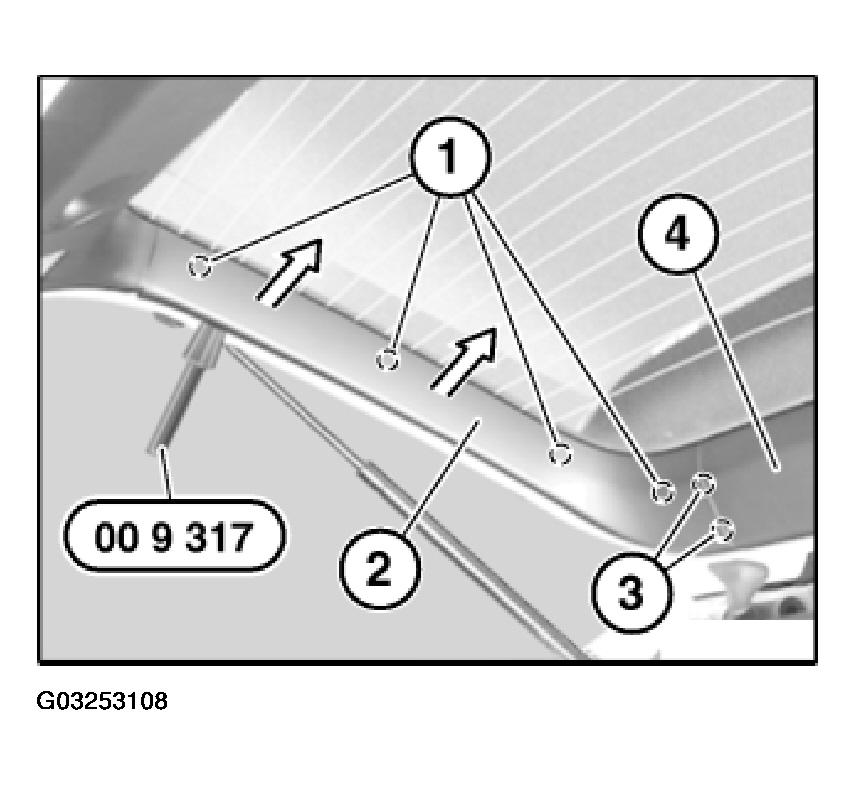

With special tool 00 9 317, unclip clips (1) in side trim (2).

Feed trim (2) out of swallow-tail guides (3) in upper trim (4) and remove.

Fig 2: Feeding Trim Out Of Swallow-Tail Guides In Upper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

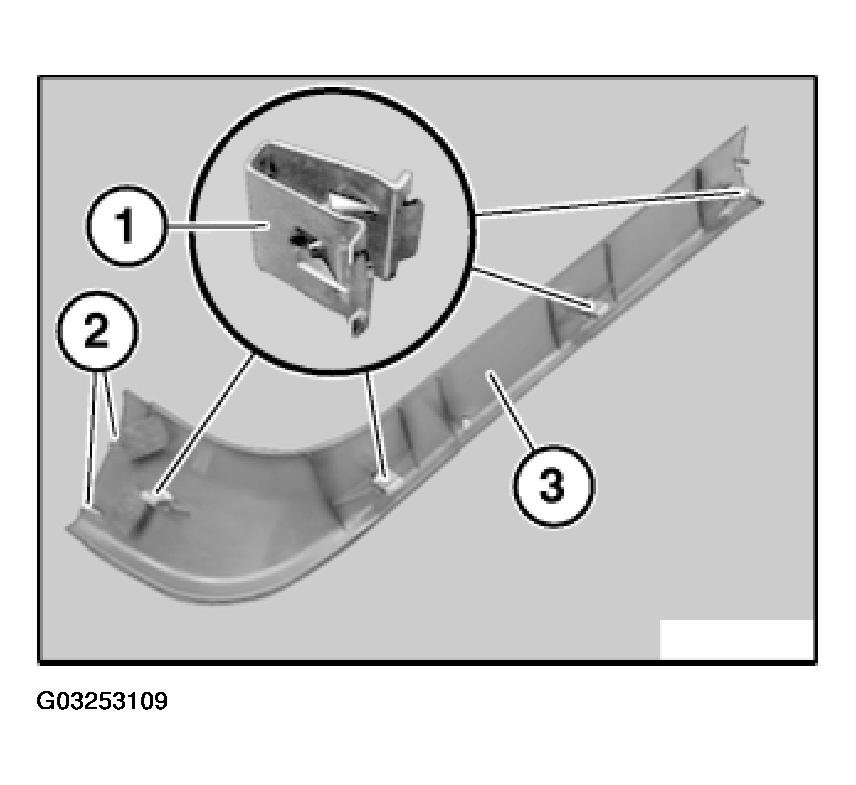

If necessary, detach clips (1) from trim (3) and insert in rear lid.

Mounts (2) must not be damaged.

Fig 3: Inserting In Rear Lid

Courtesy of BMW OF NORTH AMERICA, INC.
