51 42 001 Replacing left or right rear door trim

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear door trim panel. See 51 42 000 Removing And Installing Rear Left Or Right Door Trim Panel .

Version with Hifi system:

If necessary, remove mid-range speaker.

Version with illuminated inside door handle:

If necessary, remove inside door handle. See 51 21 225 Removing And Installing/Replacing Inside Door Handle In Left Or Right Front Door .

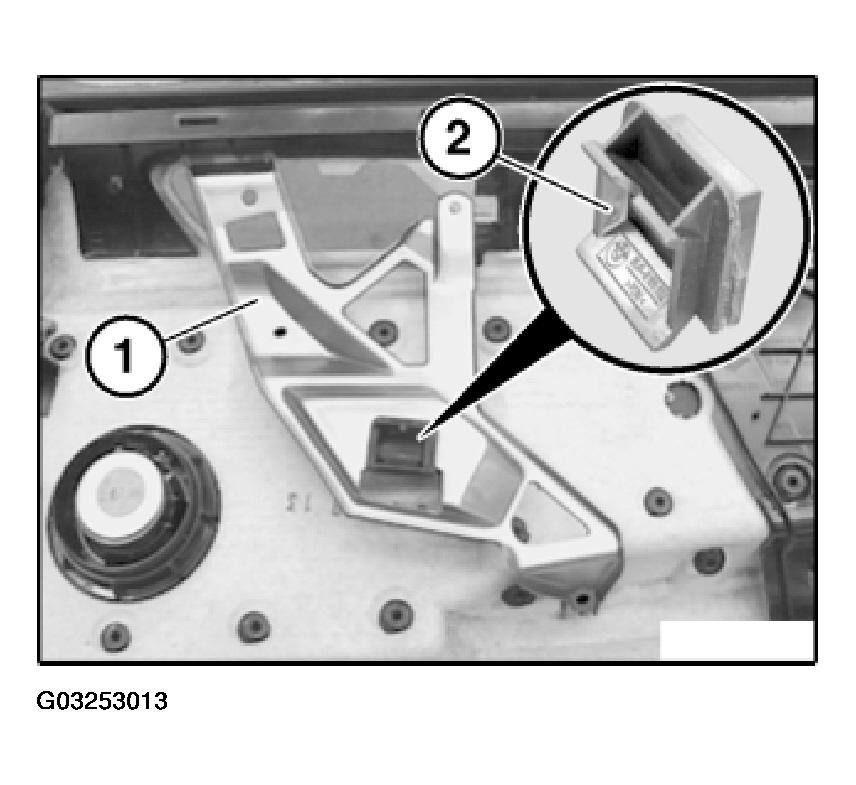

Attach central clip (2) to frame (1).

Fig 1: Attaching Central Clip To Frame

Courtesy of BMW OF NORTH AMERICA, INC.
