51 22 351 Replacing window cavity seal on inner left or right rear door

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Pull window cavity seal (1) off rear door.

Installation:

If necessary, replace faulty retainer (2).

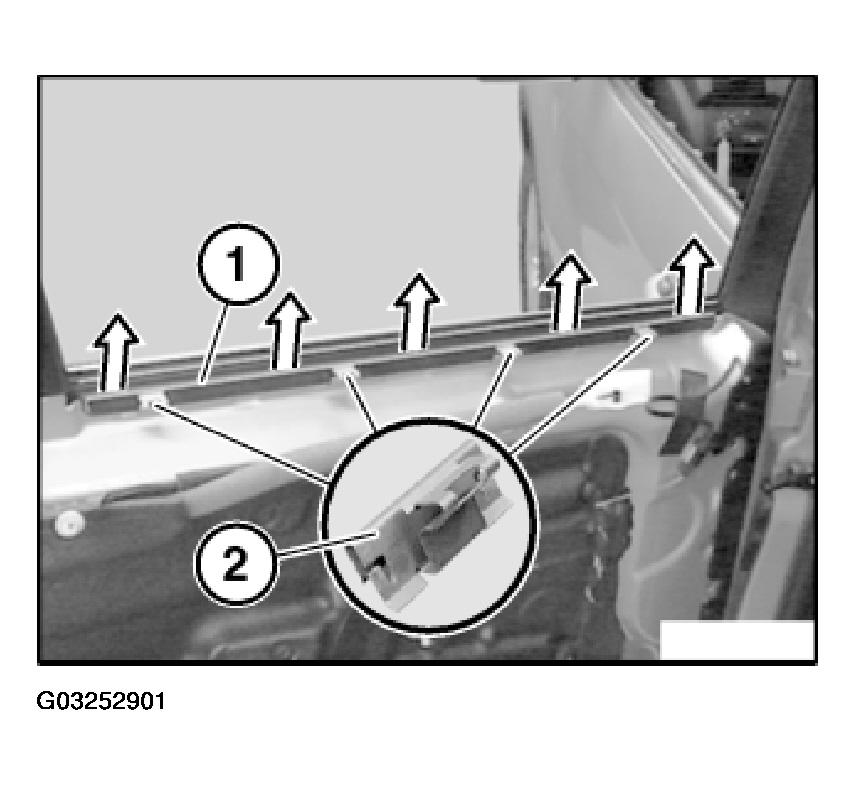

Fig 1: Pulling Window Cavity Seal Off Rear Door
G03252901Courtesy of BMW OF NORTH AMERICA, INC.
