51 22 200 Removing and installing/replacing outside handle and lock control on left or right rear door

Remove sound insulation on rear door. See 51 48 ... Removing And Installing/Replacing Sound Insulation In Rear Door, Left Or Right .

Remove outside handle on rear door. See 51 22 170 Removing And Installing/Replacing Outside Handle On Left Or Right Back Door .

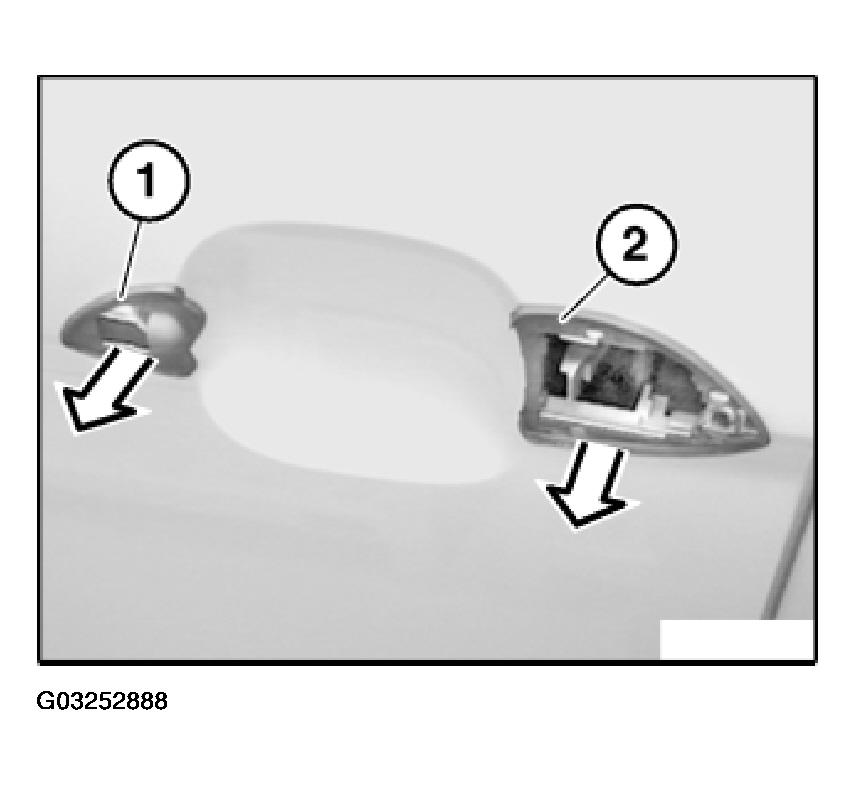

Remove seals (1) and (2) for outside handle.

Fig 1: Removing Seals (1) And (2) For Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

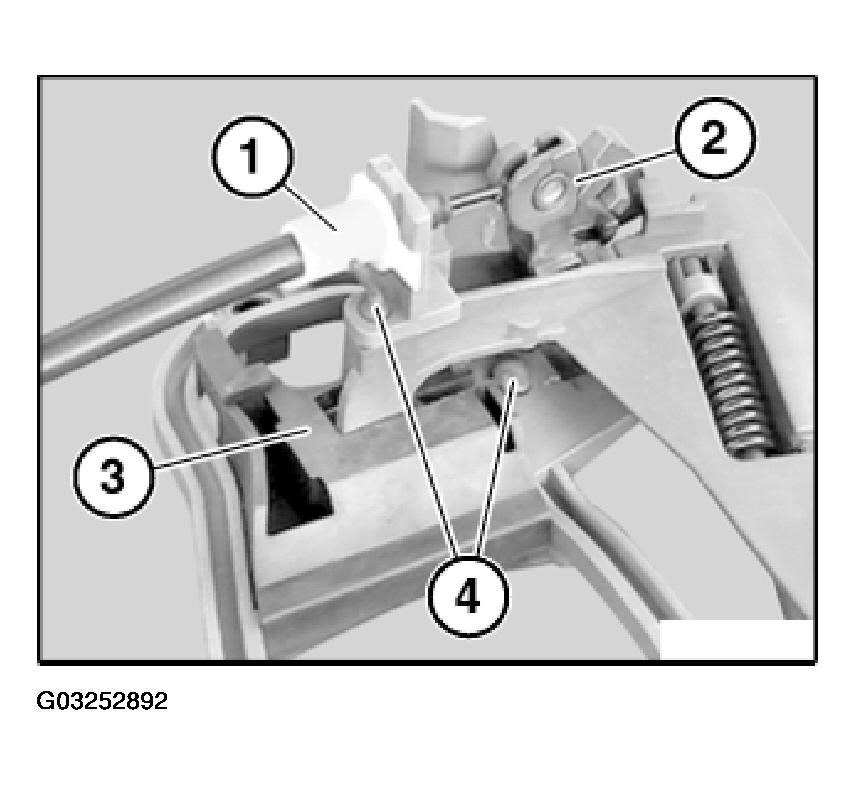

Unclip ball head (1).

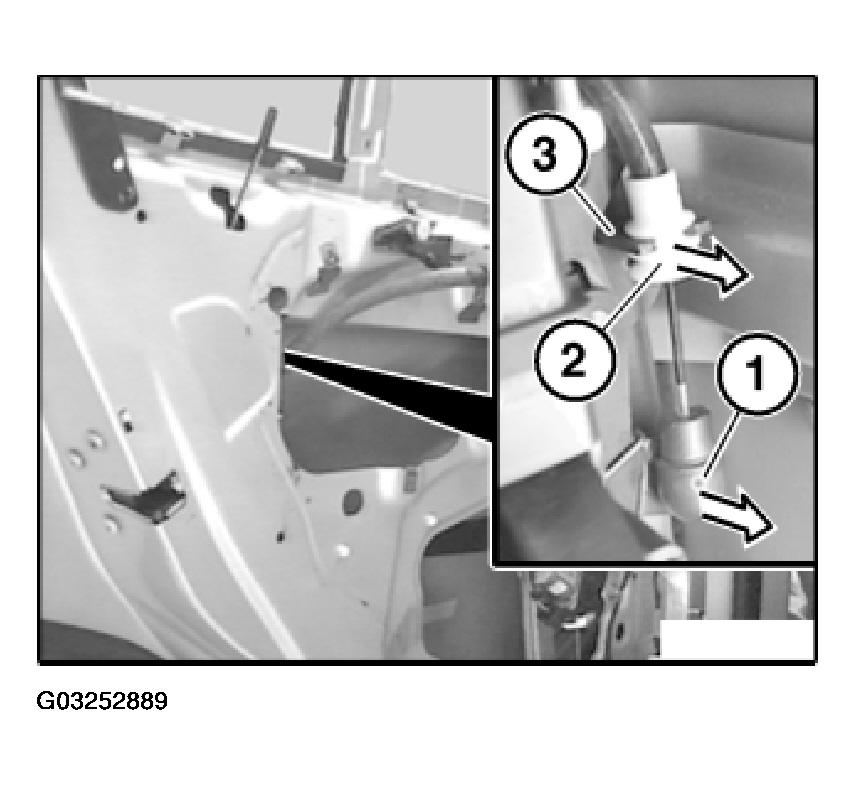

Detach Bowden cable (2) from support (3) on door lock.

Fig 2: Detaching Bowden Cable (2) From Support

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken screw (1) (do not release fully).

Lift out lock actuator (2) towards front and remove to inner door panel.

Installation:

Guide (3) must be located outside metal edge (4).

Lock actuator (5) must be flush with guide (6).

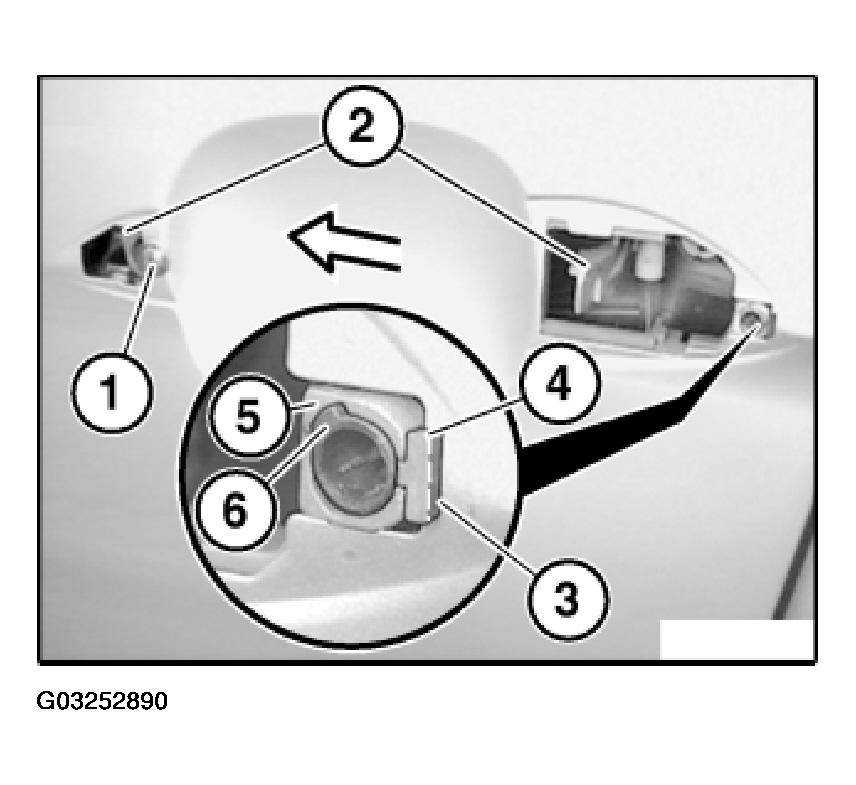

Fig 3: Ensuring Lock Actuator (5) Is Flush With Guide (6)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Removing Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bowden cable (1) must be fitted correctly with lock actuator (2).

Seal (3) must be fitted - wind noises.

Buffers (4) must be fitted.

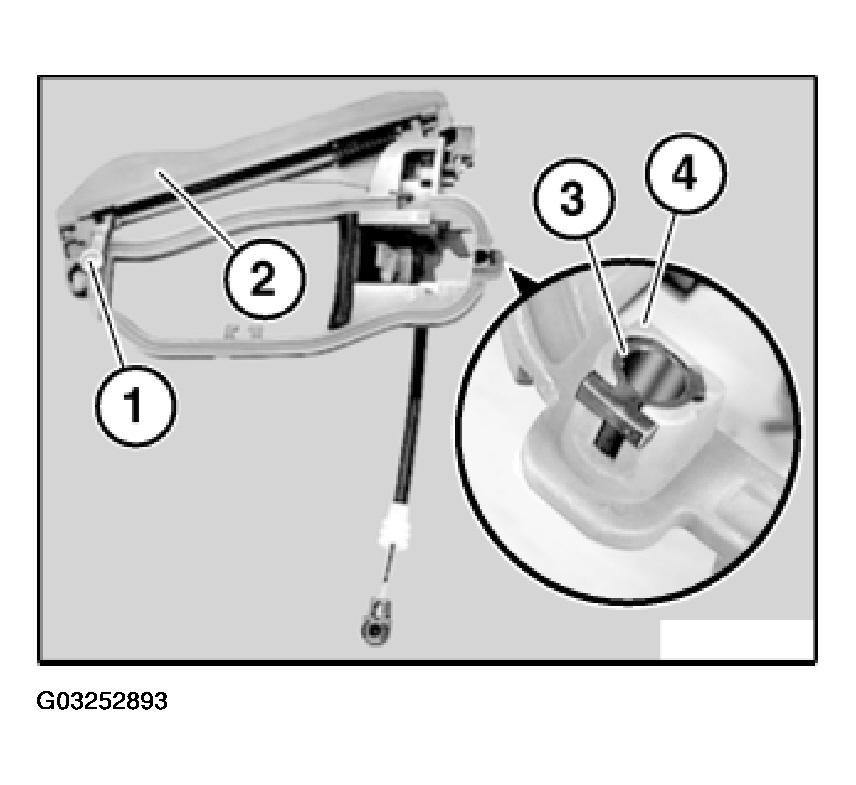

Fig 5: Installing Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, replace screw (1) on lock actuator (2).

Guide (3) must be flush with support (4).

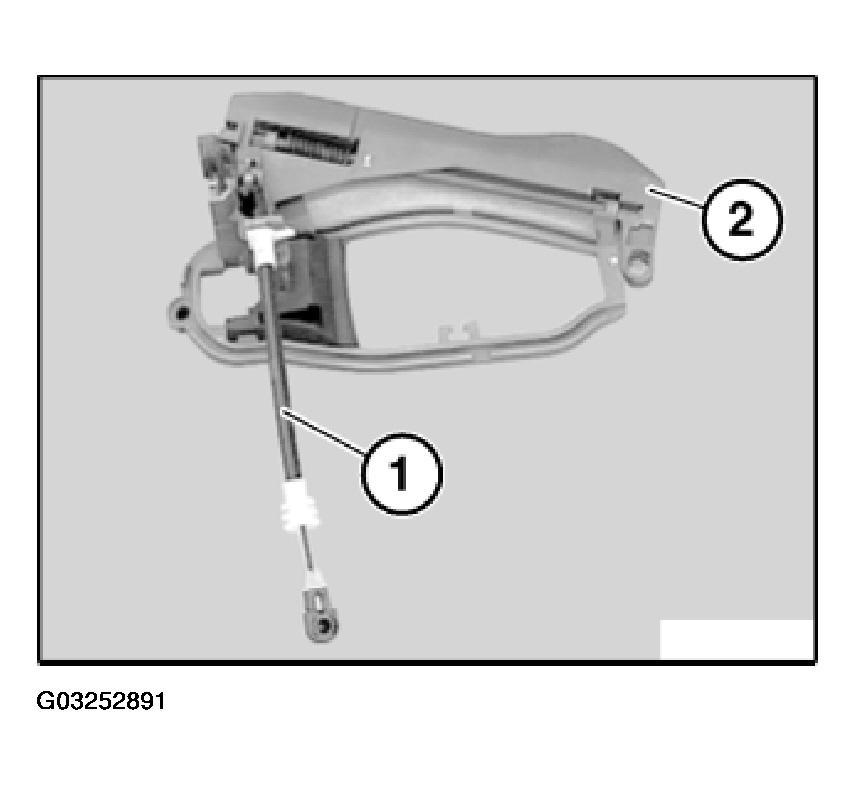

Fig 6: Inspecting Screw On Lock Actuator

Courtesy of BMW OF NORTH AMERICA, INC.
