51 22 180 Removing and installing/replacing cover on outside handle, left or right: Installation:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

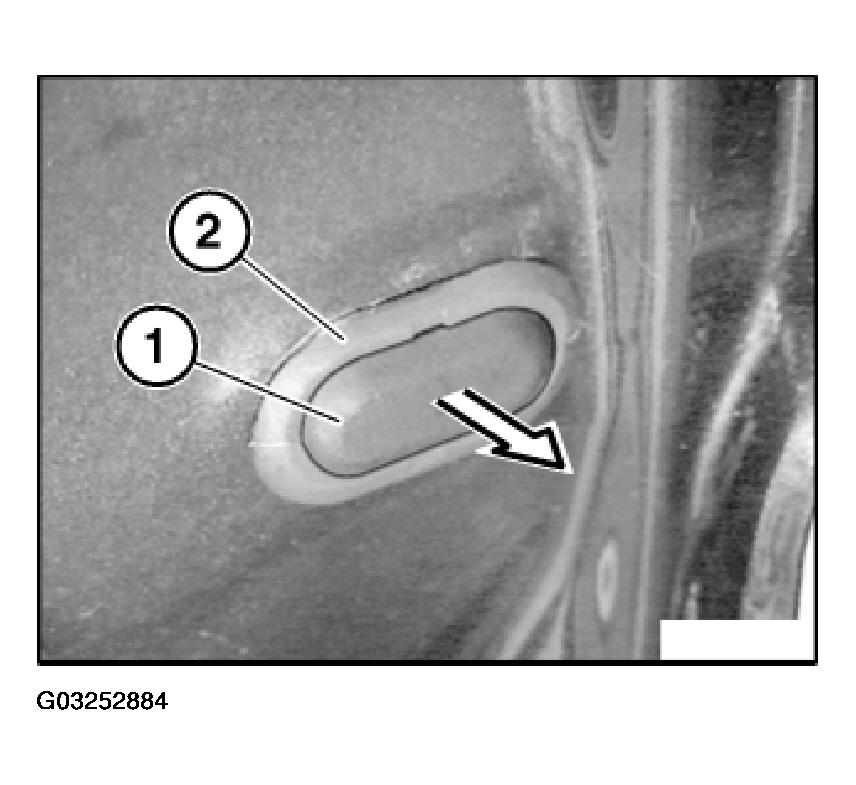

Install new trim (1) and frame (2).

Fig 1: Installing Trim And Frame

Courtesy of BMW OF NORTH AMERICA, INC.

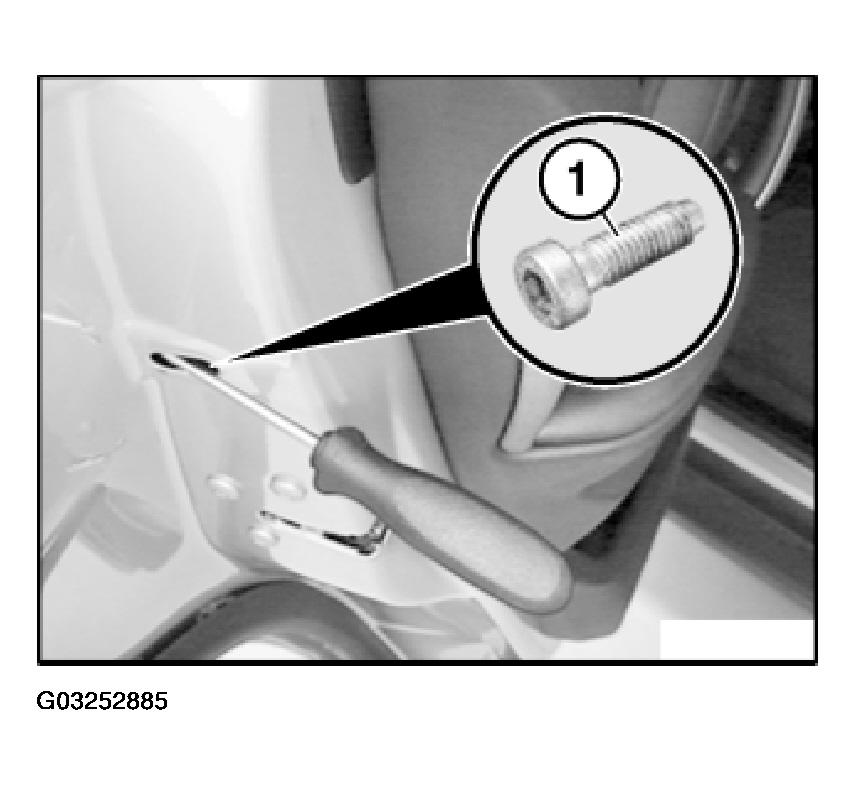

Release screw (1).

Fig 2: Releasing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

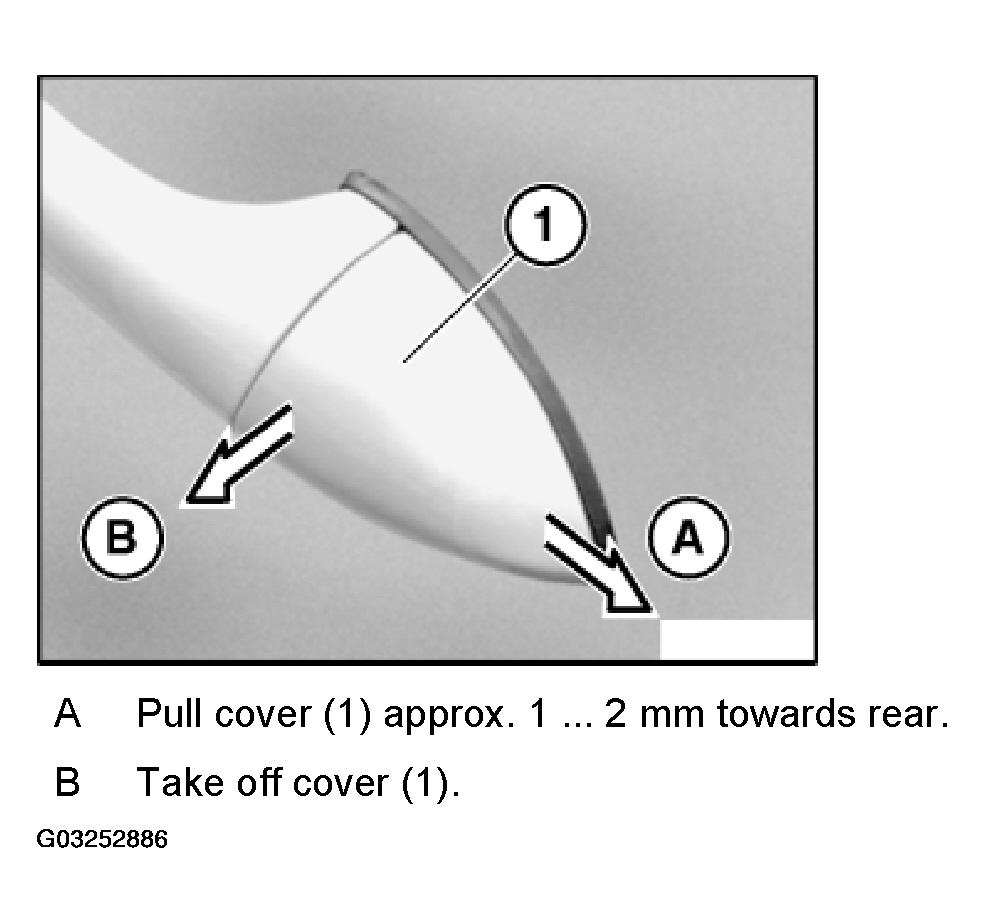

Remove cover (1) on outside handle:

Pull cover (1) approx. 1 ... 2 mm towards rear.
Take off cover (1).

Fig 3: Removing Cover On Outside Handle
Courtesy of BMW OF NORTH AMERICA, INC.

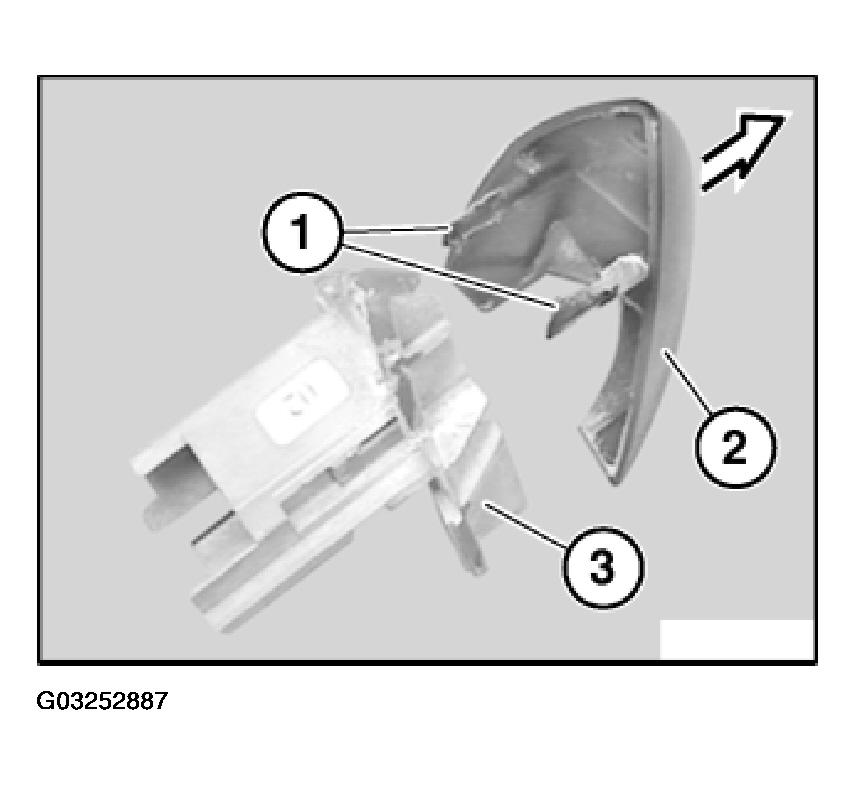

Lever out catches (1) and detach cover (2) from filler element (3).

Catches (1) on cover (2) must not be damaged.

Fig 1: Checking Catches On Cover

Courtesy of BMW OF NORTH AMERICA, INC.
