51 22 170 Removing and installing/replacing outside handle on left or right back door: Removal:

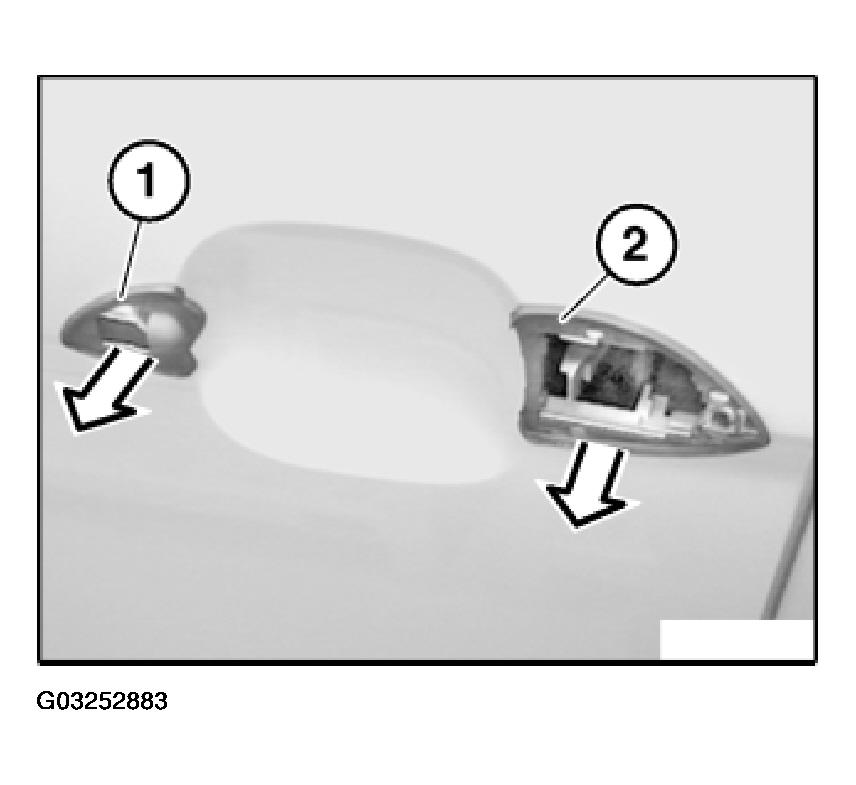

Remove cover on outside handle.

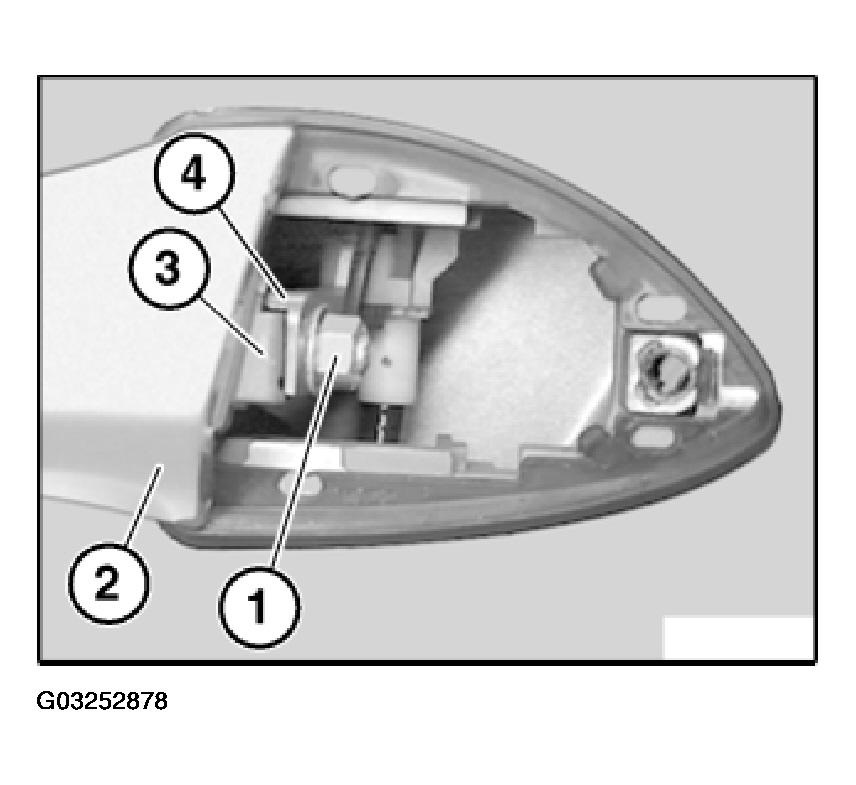

Slacken nut (1) on outside handle (2) (do not release fully).

Installation:

Contact surface (3) of outside handle (2) must rest without play against lock actuator (4).

Tightening torque, see 51 22 5AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 1: Removing Cover On Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

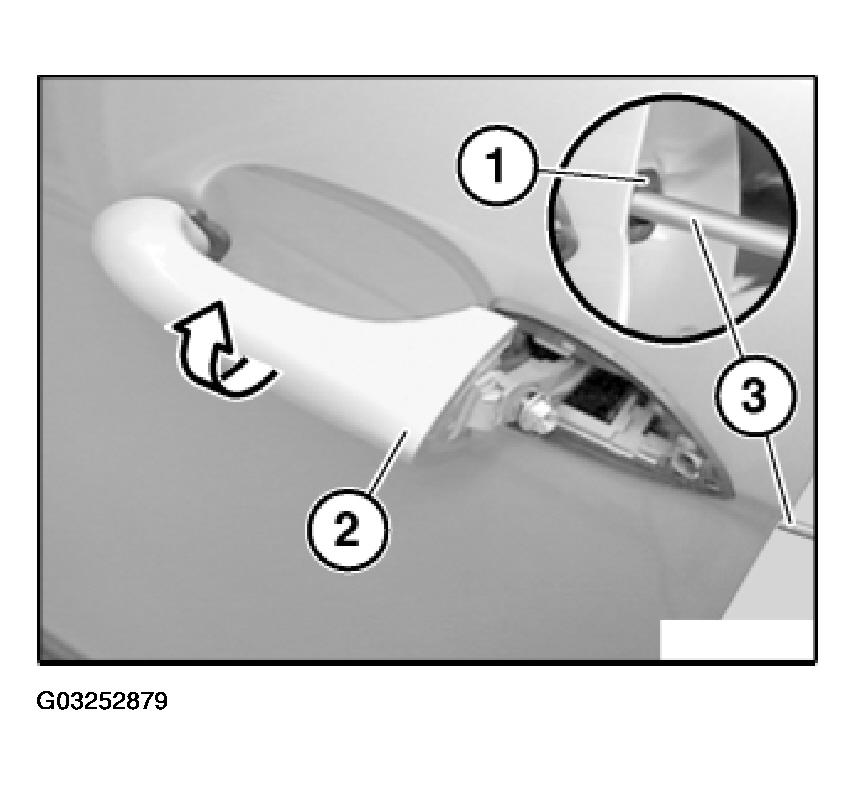

Pull outside handle (2) as far outwards/upwards as possible and secure in this position with a screwdriver (3).

Fig 2: Fitting Older Outer Frame Of Screw Cover

Courtesy of BMW OF NORTH AMERICA, INC.

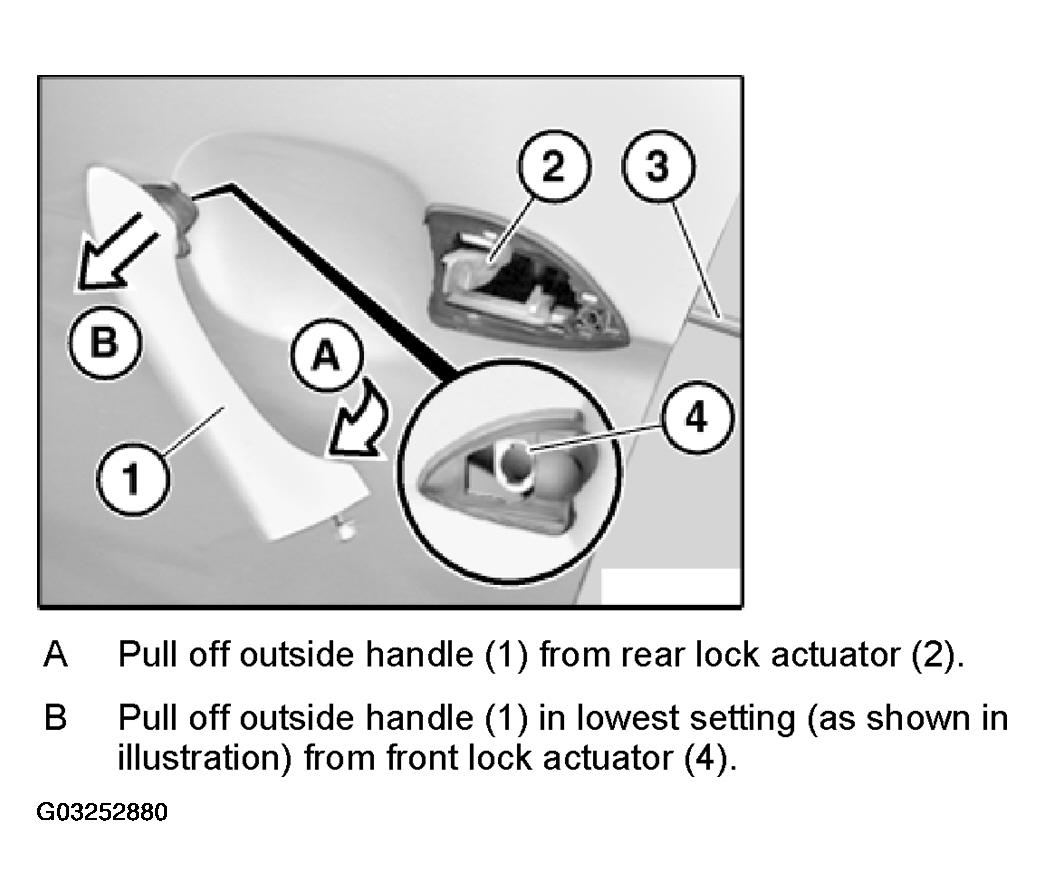

1. A Pull off outside handle (1) from rear lock actuator (2).
2. B Pull off outside handle (1) in lowest setting from front lock actuator (4). See Fig 3.
   Fig 3: Pulling Off Outside Handle In Lowest Setting

   Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Old outer frame (1) of screw cover must be fitted (damage to paint).

Press lock actuator (1) with a screwdriver (2) fully into "Open" setting.

Mount outside handle in this position.

Fig 4: Pressing Lock Actuator

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

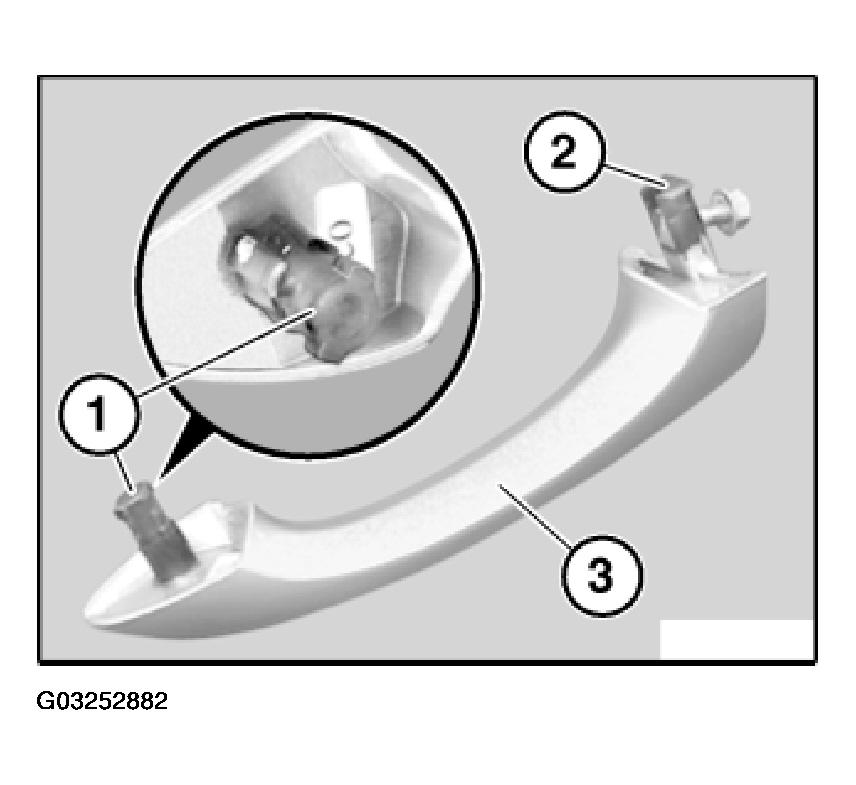

Supports (1) and (2) on outside handle (3) must not be damaged.

Fig 5: Supports (1) And (2) On Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty seals (1) and (2) for outside handle.

Fig 6: Checking Seals For Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Carry out function check only with door open.
