51 22 090 Removing and installing/replacing door lock on left or right rear door: Notes

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Raise the door window.

Remove sound insulation on rear door. See 51 48 ... Removing And Installing/Replacing Sound Insulation In Rear Door, Left Or Right .

Disconnect plug connection (1) on door lock (2).

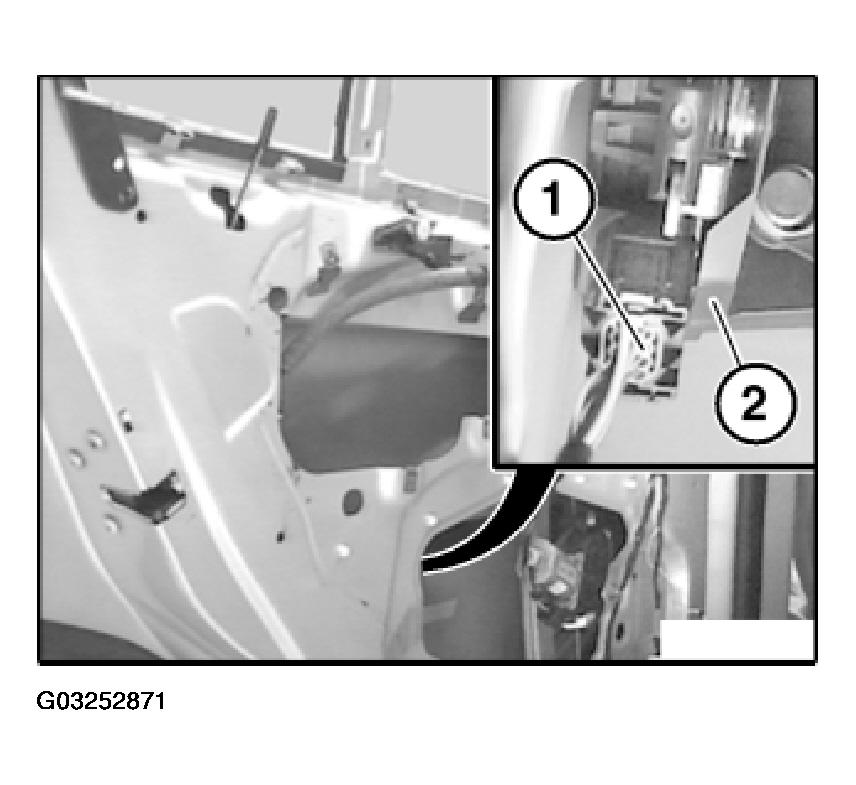

Fig 1: Disconnecting Plug Connection On Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip ball head (1).

Detach Bowden cable (2) from support (2) on door lock.

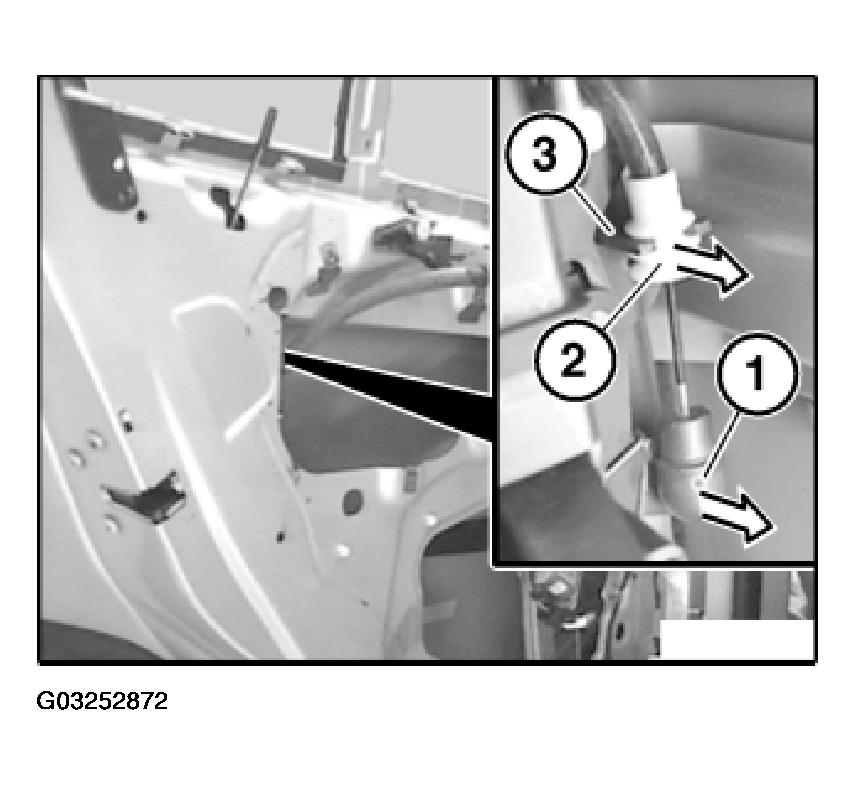

Fig 2: Uncliping Ball Head

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove door lock (2) with linkage (3).
