51 12 801 Replacing bracket for rear bumper at left or right

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

(bumper removed)

If necessary, remove rear bumper completely. See 51 12 001 Replacing Rear Bumper .

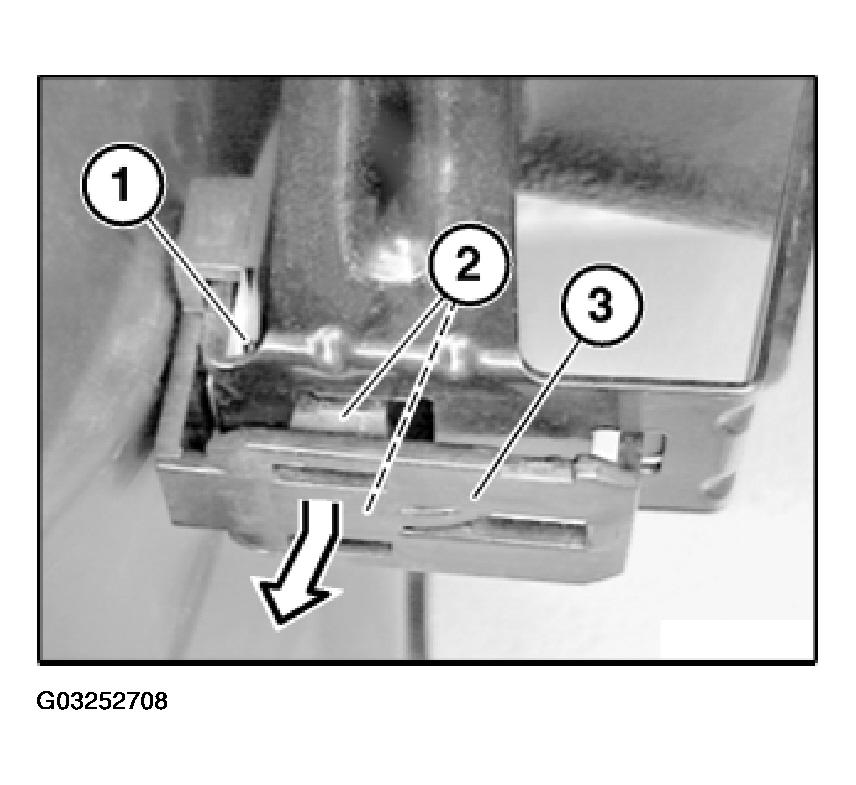

Release screw (1) on wheel arch.

Press together catches (2) and remove holder (3) outwards/forwards.

Fig 1: Removing Holder Outwards/Forwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

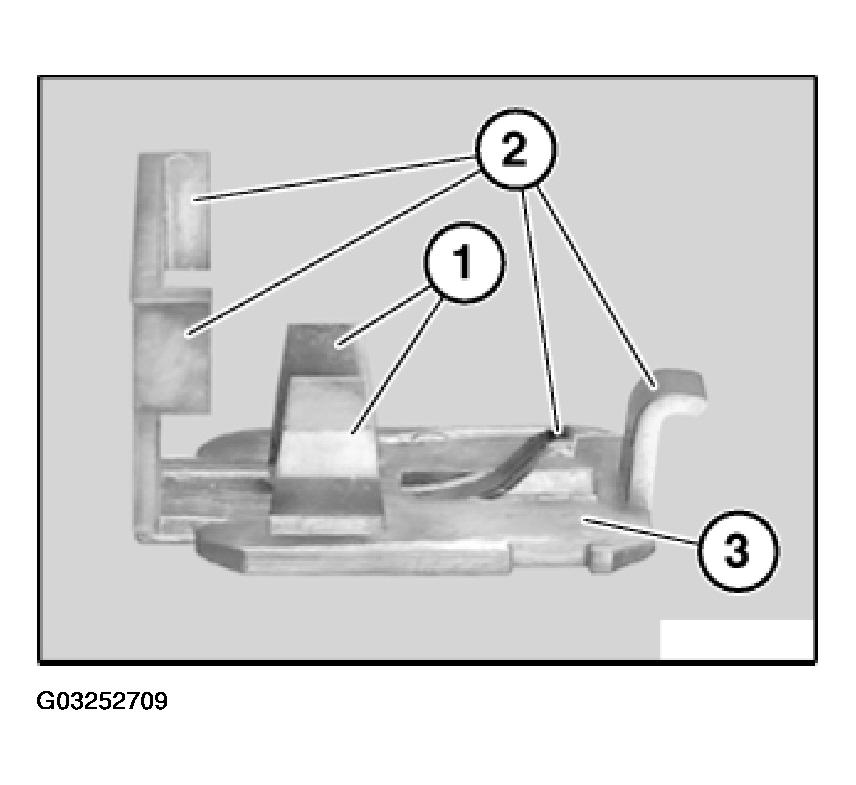

Catches (1) and guides (2) must not be damaged.

Fig 2: Checking Catches And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

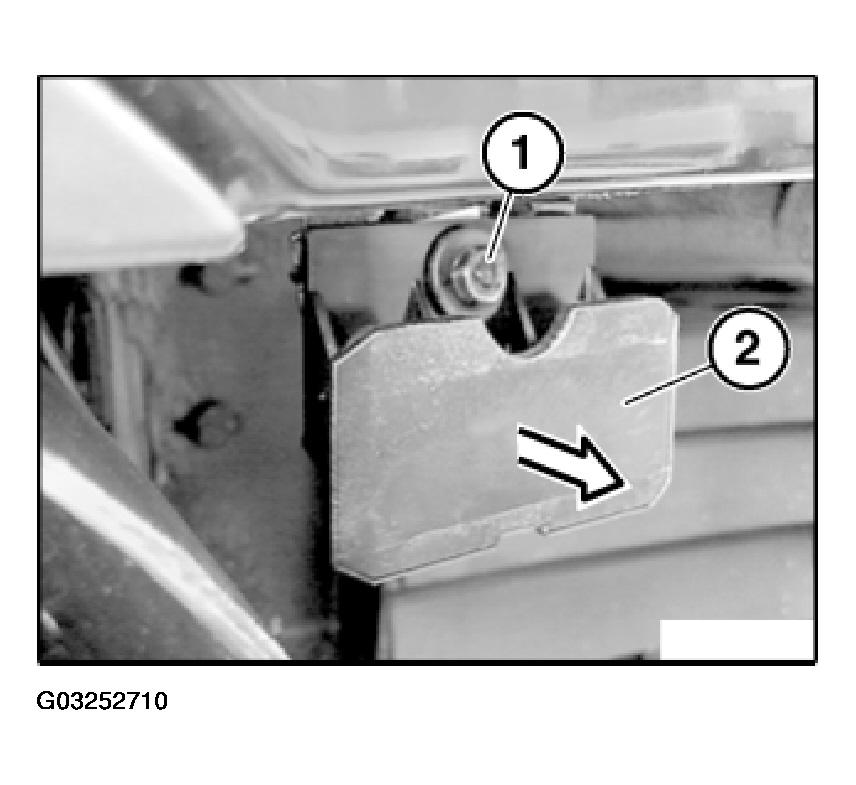

Release screw (1) and remove holder (2).

Fig 3: Releasing Screw And Remove Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

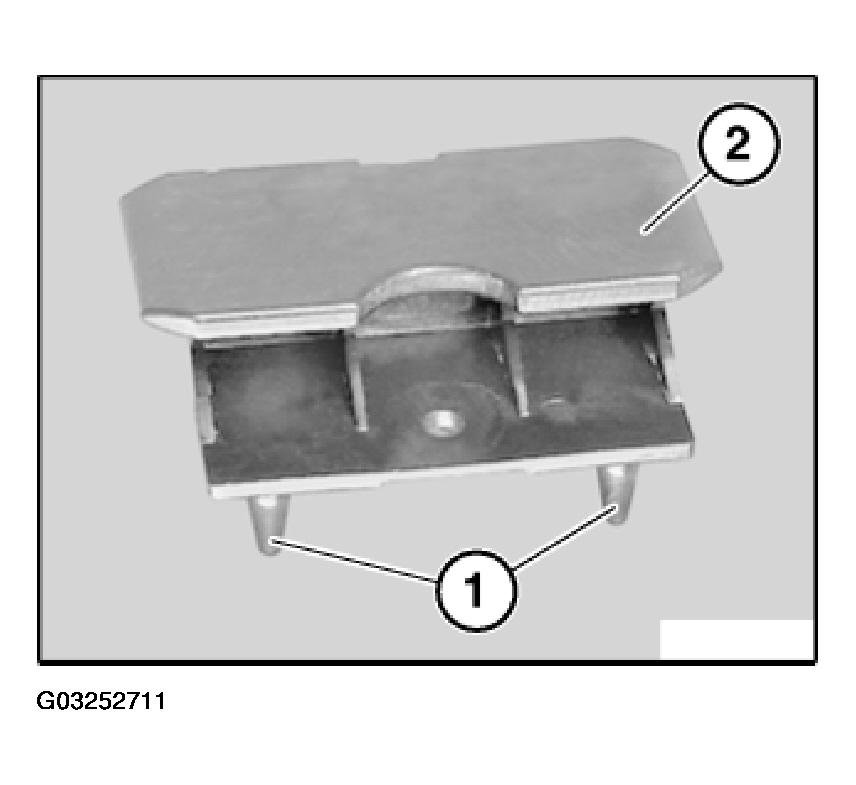

Guides (1) on holder (2) must not be damaged.

Fig 4: Checking Guides On Holder

Courtesy of BMW OF NORTH AMERICA, INC.
