51 12 157 Replacing rear bumper trim (HP)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

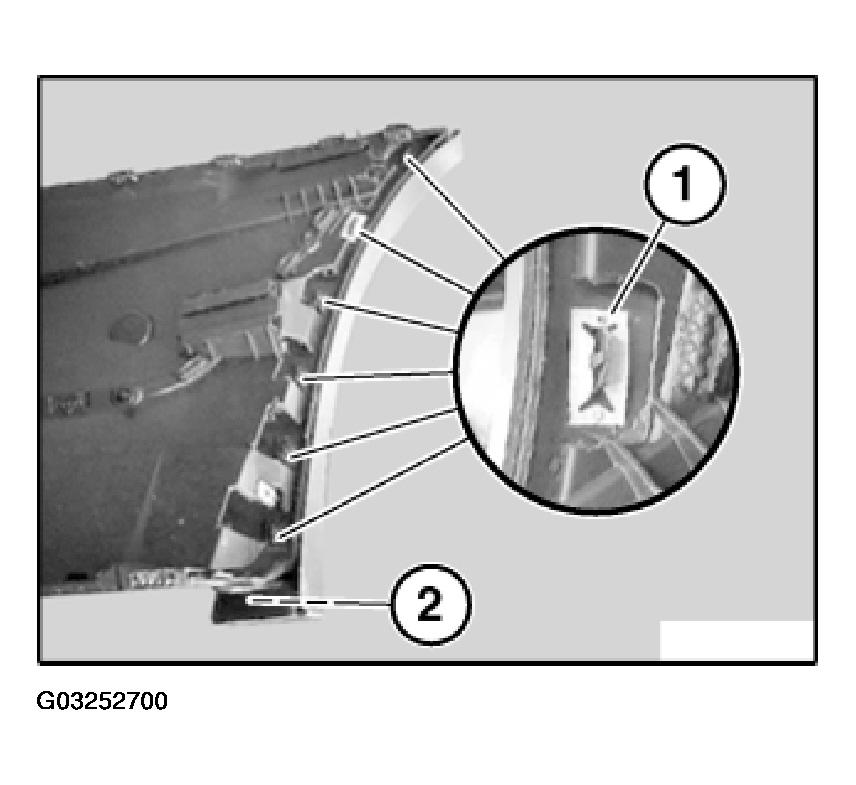

Release spring clips (1) on left and right.

Release retaining element (2) on left and right and remove covers.

Fig 1: Releasing Retaining Element On Left And Right And Removing Covers

G03252700

Courtesy of BMW OF NORTH AMERICA, INC.

Release expansion rivets (1) on left and right and remove cover (2) on left and right.

Version with PDC option:

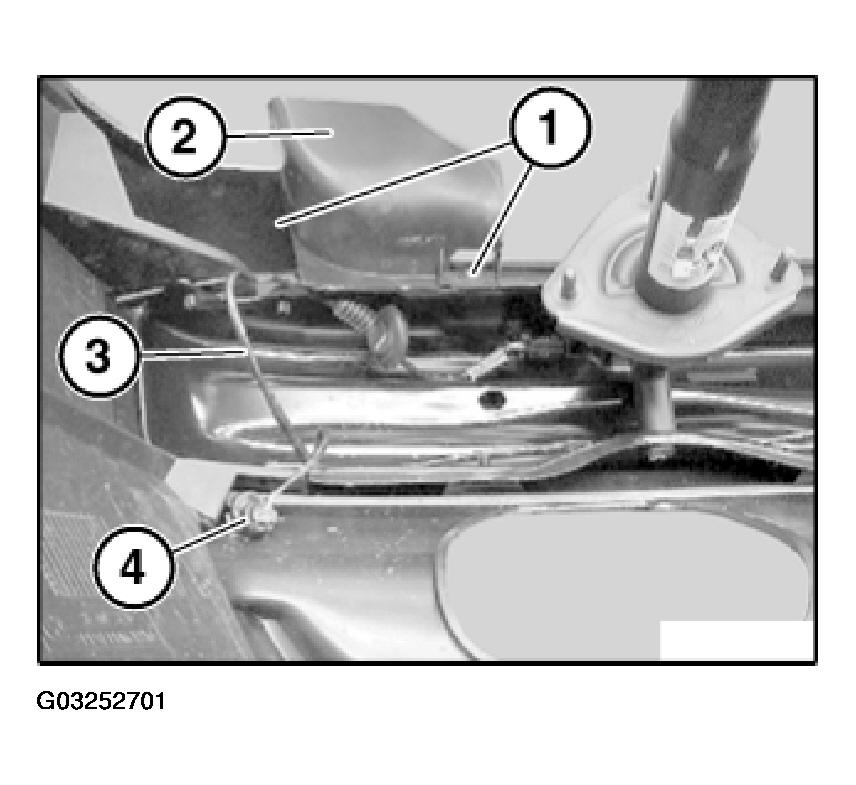

Remove wiring harness (3) and all PDC sensors (4).

Fig 2: Removing Wiring Harness And All PDC Sensors

G03252701

Courtesy of BMW OF NORTH AMERICA, INC.

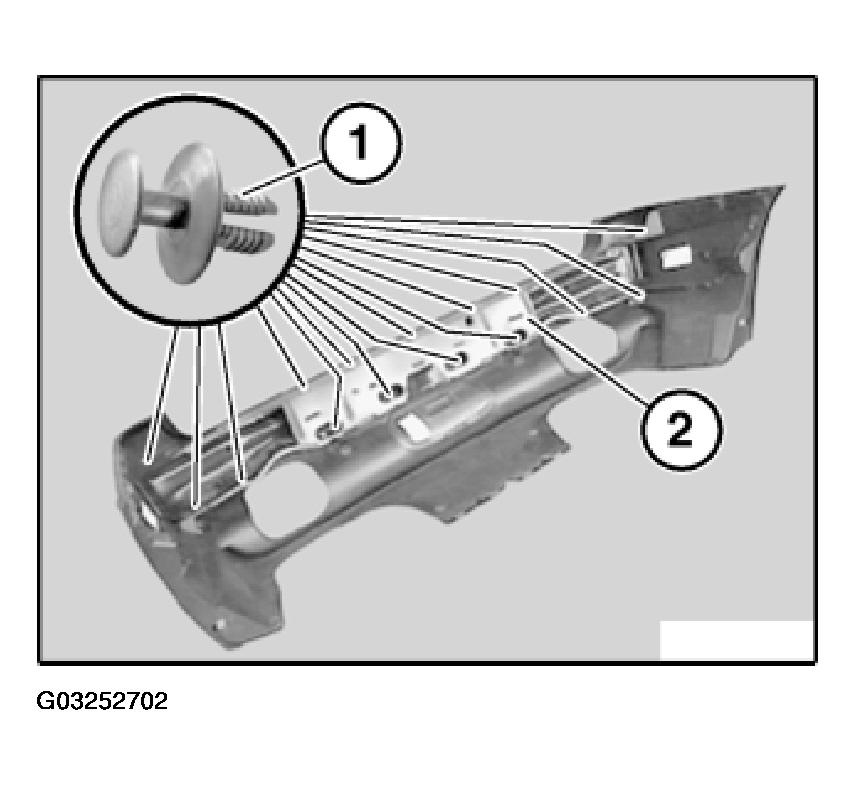

Release expansion rivets (1) and remove center section of bumper (2).

Fig 3: Removing Center Section Of Bumper

G03252702

Courtesy of BMW OF NORTH AMERICA, INC.

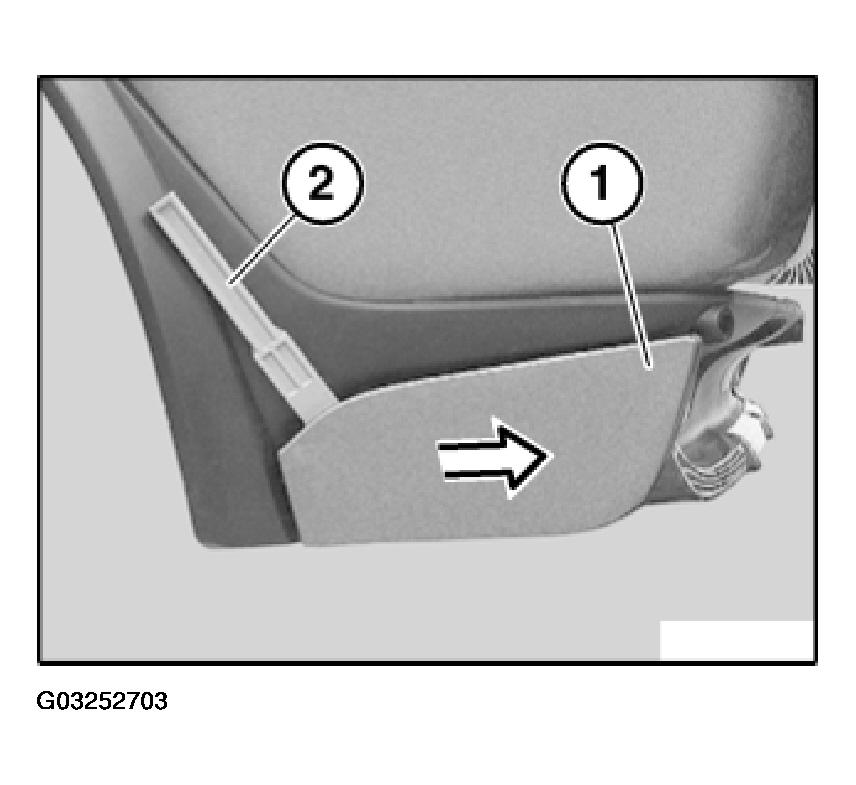

Unclip cover (1) on left and right with assembly wedge (2) and remove in direction of arrow.

Fig 4: Unclipping Cover On Left And Right With Assembly Wedge

G03252703

Courtesy of BMW OF NORTH AMERICA, INC.

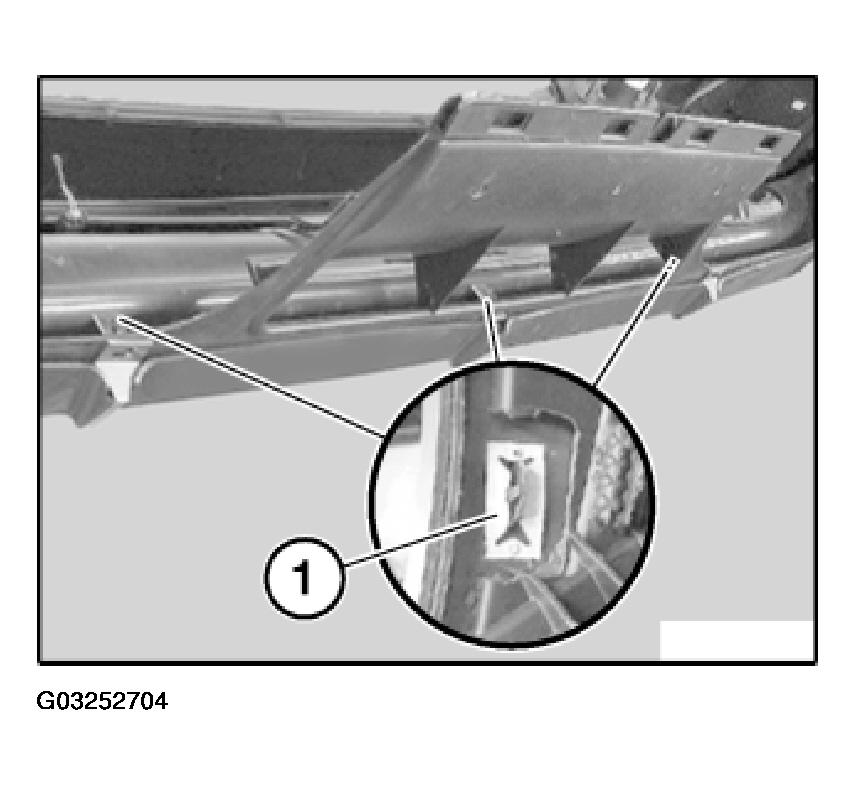

Release spring clips (1).

Fig 5: Releasing Spring Clips

G03252704

Courtesy of BMW OF NORTH AMERICA, INC.

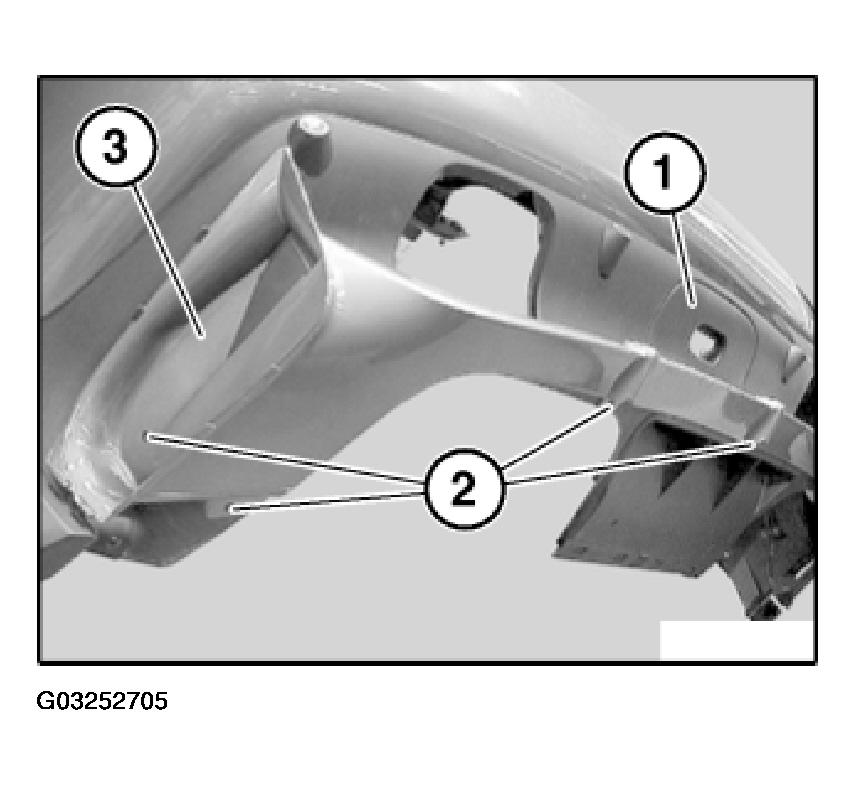

Remove cover (1).

Release retaining elements (2) on left and right and remove bumper trim lower section (3).

Fig 6: Removing Bumper Trim Lower Section

G03252705

Courtesy of BMW OF NORTH AMERICA, INC.
