51 12 000 Removing and installing complete rear bumper (HP)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

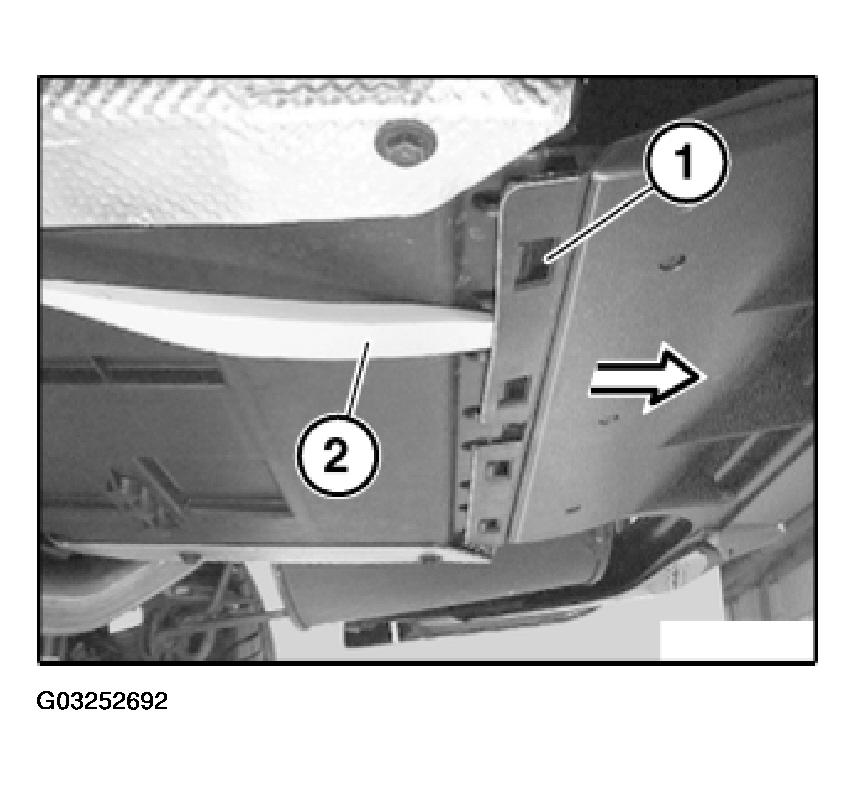

Unclip cover (1) with assembly wedge (2) and unhook in direction of arrow.

Fig 1: Unclipping Cover With Assembly Wedge And Unhook

Courtesy of BMW OF NORTH AMERICA, INC.

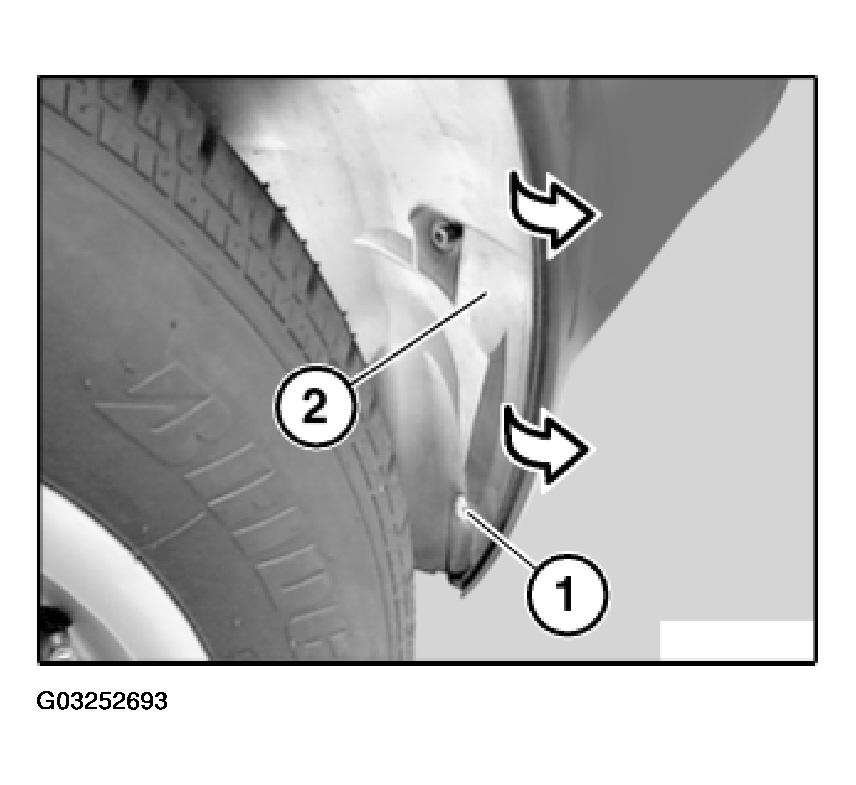

Release screws (1) on left and right.

Lift out wheel arch trim (2) on left and right.

Fig 2: Lifting Out Wheel Arch Trim On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

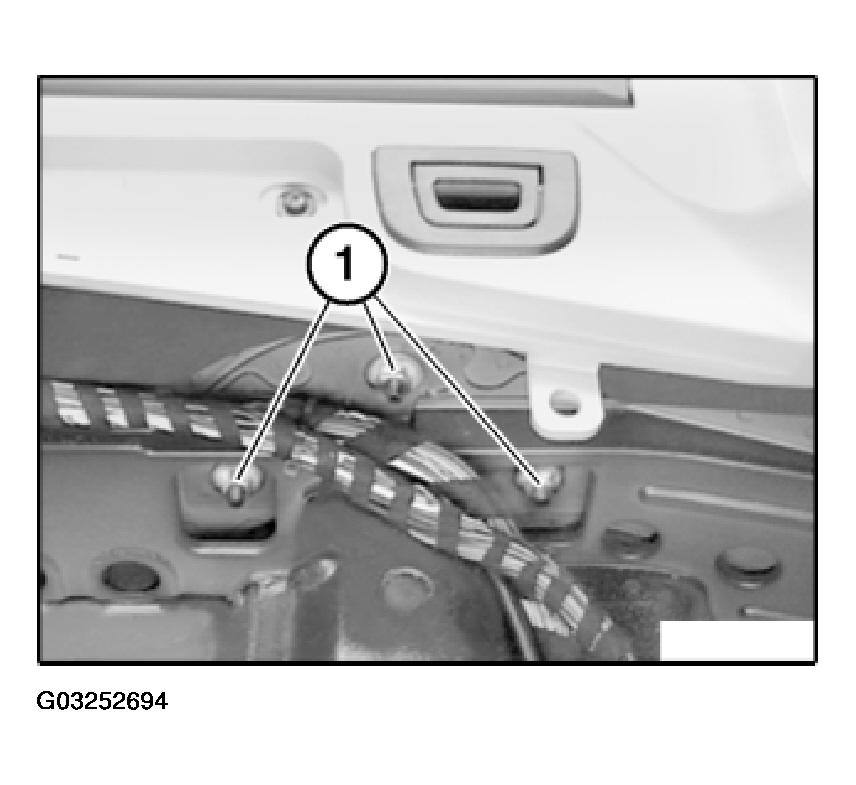

Release nuts (1) on left and right.

Installation:

Observe tightening torque, see 51 12 3AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 3: Releasing Nuts On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

Open rear lids.

Version with PDC option:

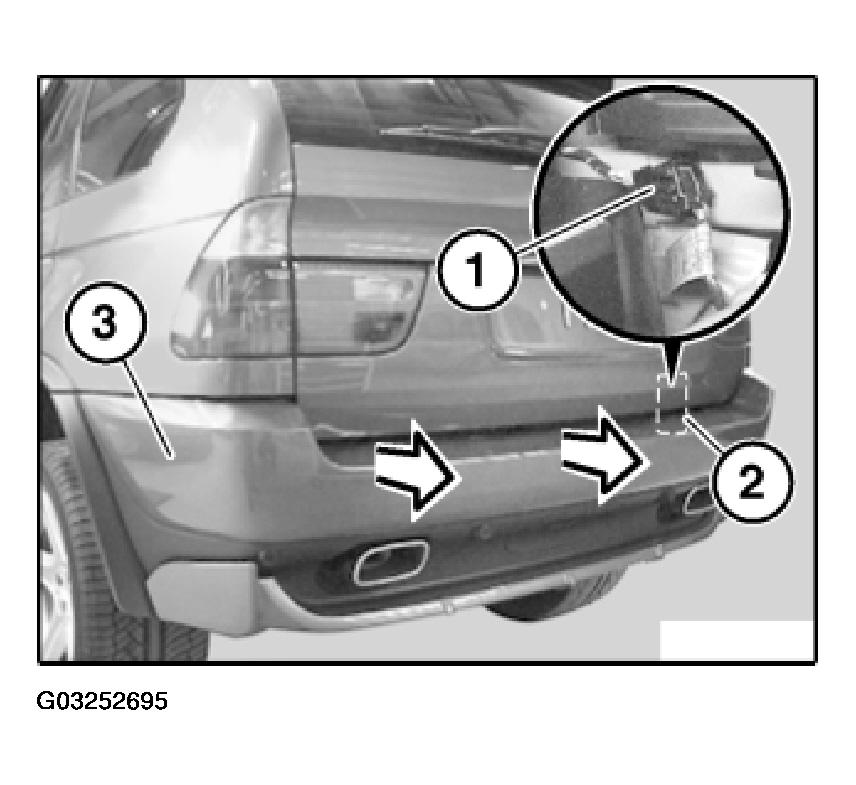

Disconnect plug connection (1) in area (2).

Pull off bumper (3) slightly towards rear, feed out PDC wiring harness in area (2).

Remove bumper (3) in direction of arrow.

Fig 4: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
