51 46 050 Removing and installing/replacing finisher for top of rear apron
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Remove luggage compartment floor trim panel. See 51 47 101 Removing And Installing/Replacing Luggage Compartment Floor Trim Panel .
Remove flaps in luggage compartment trim panel on left and right. See 51 47 172 Removing And Installing/Replacing Flap In Luggage Compartment Trim, Left Or Right .

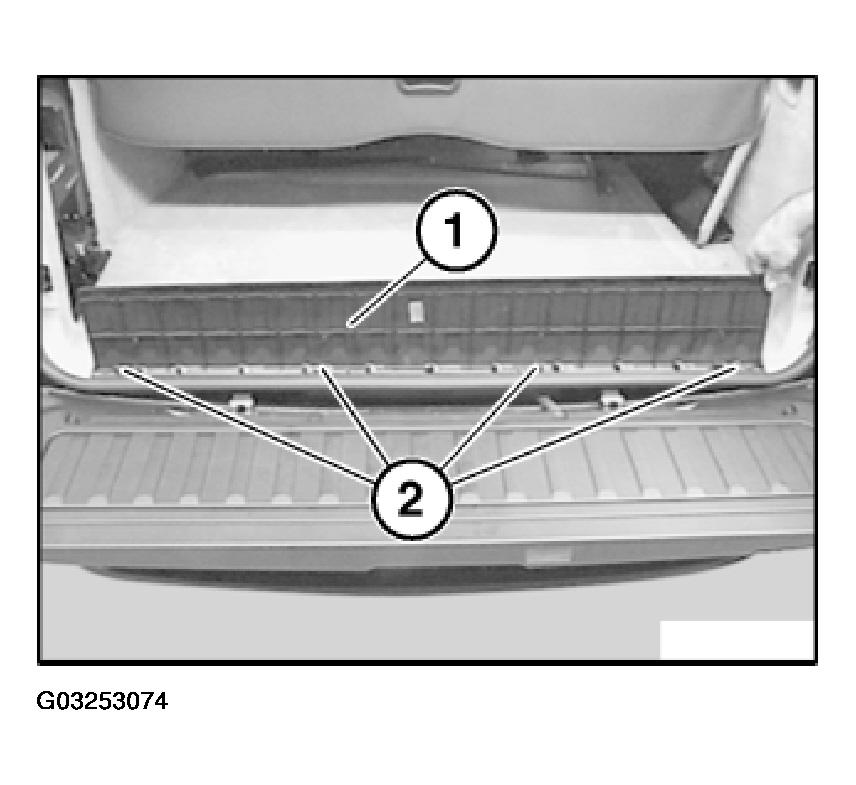

Raise trim (1) and release screws (2).

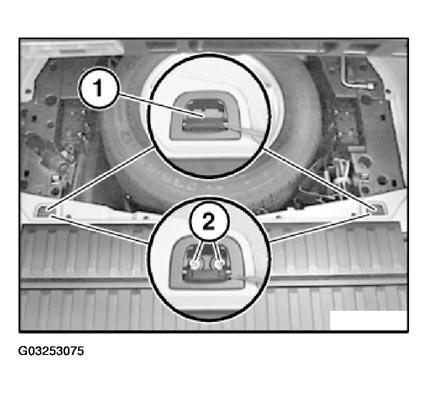

Lever out trim (1) in lashing eyes on opening.
Release screws (2) and lever out lashing eyes.

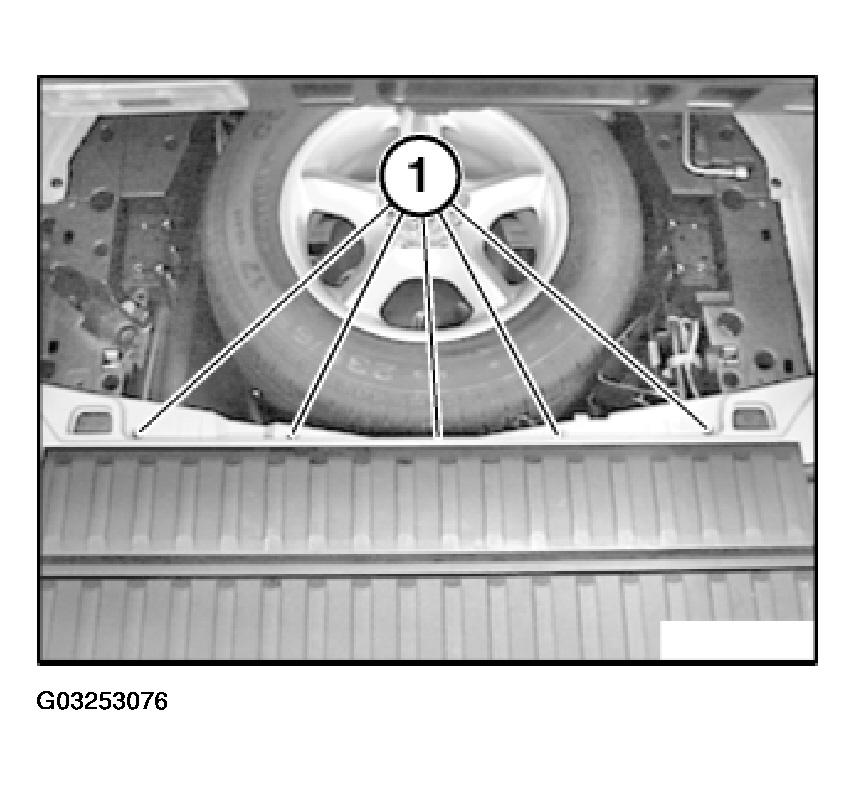

Release screws (1).

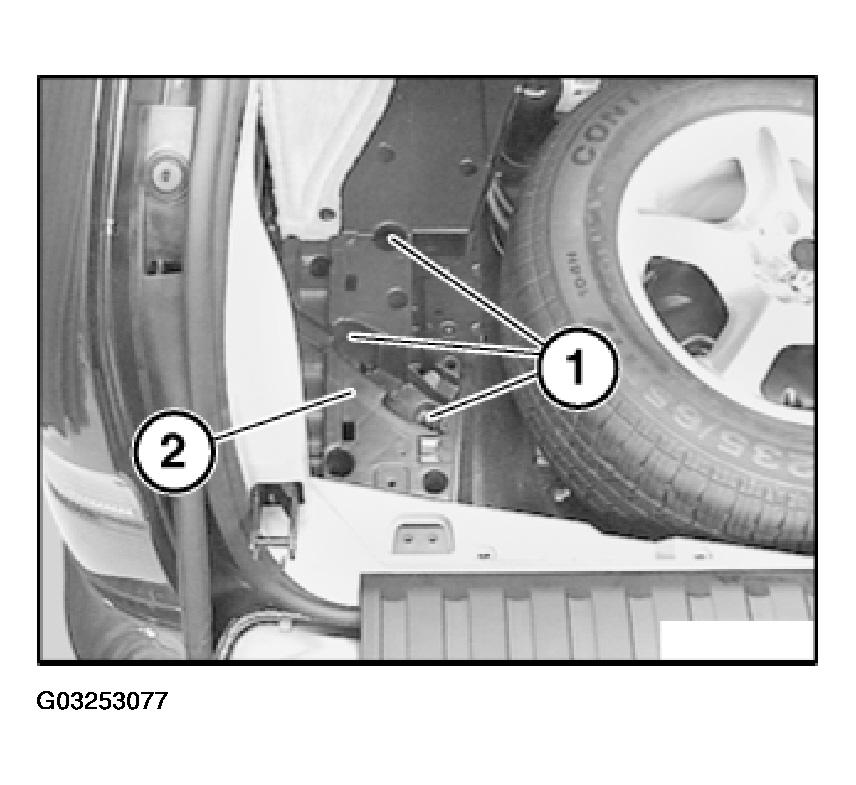

Release screws (1) on cover (2).
Lift off cover (2).

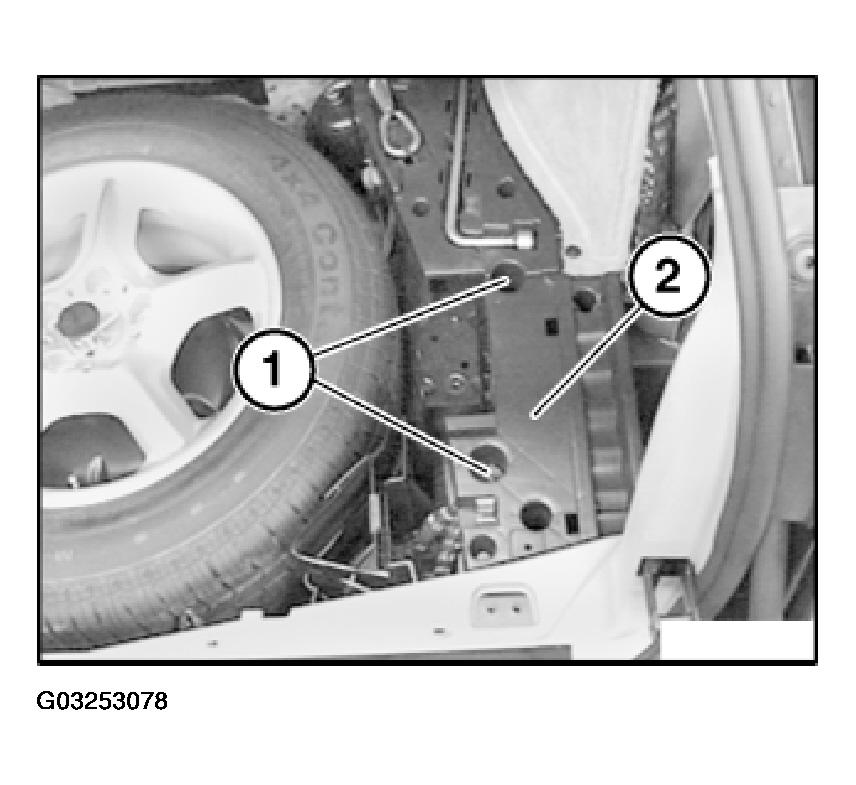

Release screws (1) on cover (2).
Lift off cover (2).
Remove trim on tail panel.
