Replacement Of Base Of Center Console Only:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Remove trim (2) for switch from base (3) for center console.

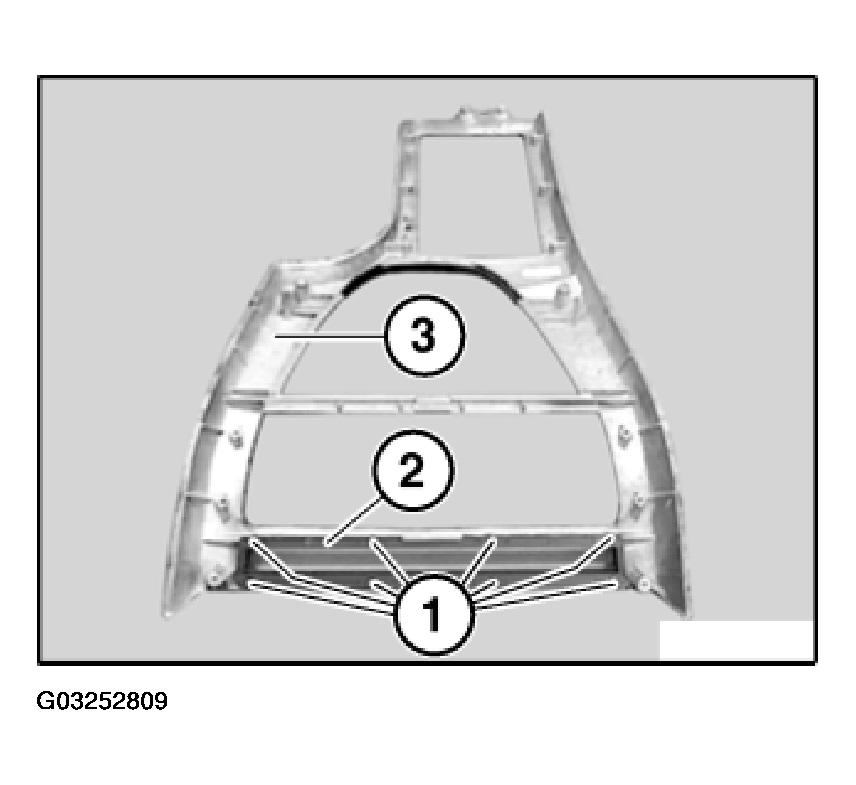

Fig 1: Removing Trim For Switch From Base
G03252809Courtesy of BMW OF NORTH AMERICA, INC.
