Removing Front Cup Holder:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Remove cup holder (2) from base (3) for center console.

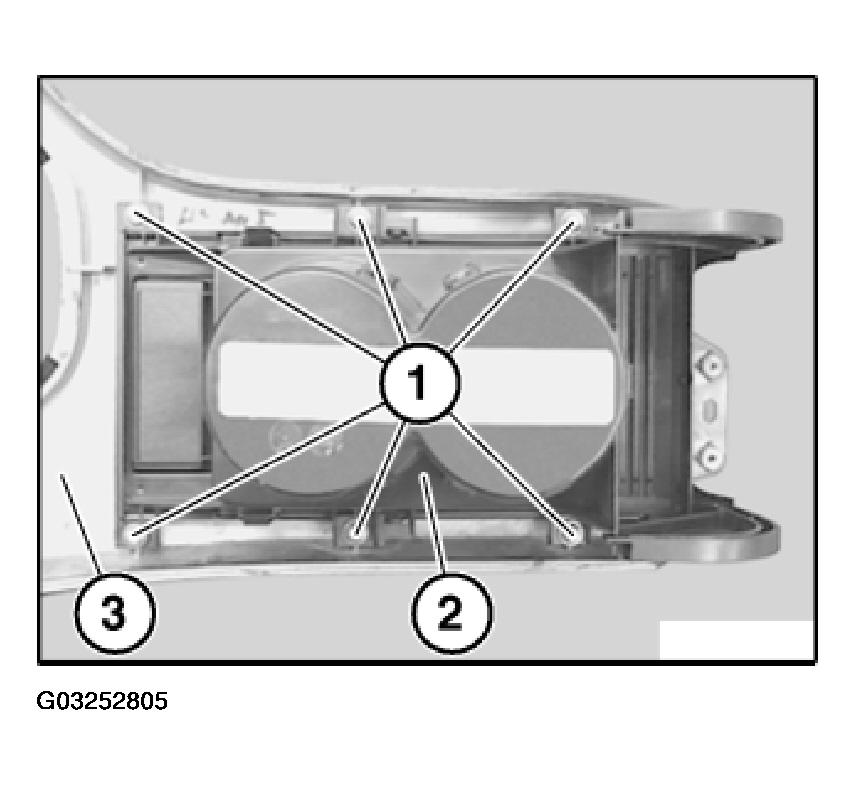

Fig 1: Removing Cup Holder From Base For Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Left/right catches (1) must be correctly secured.

All springs (2) on cup holder (3) must not be damaged.

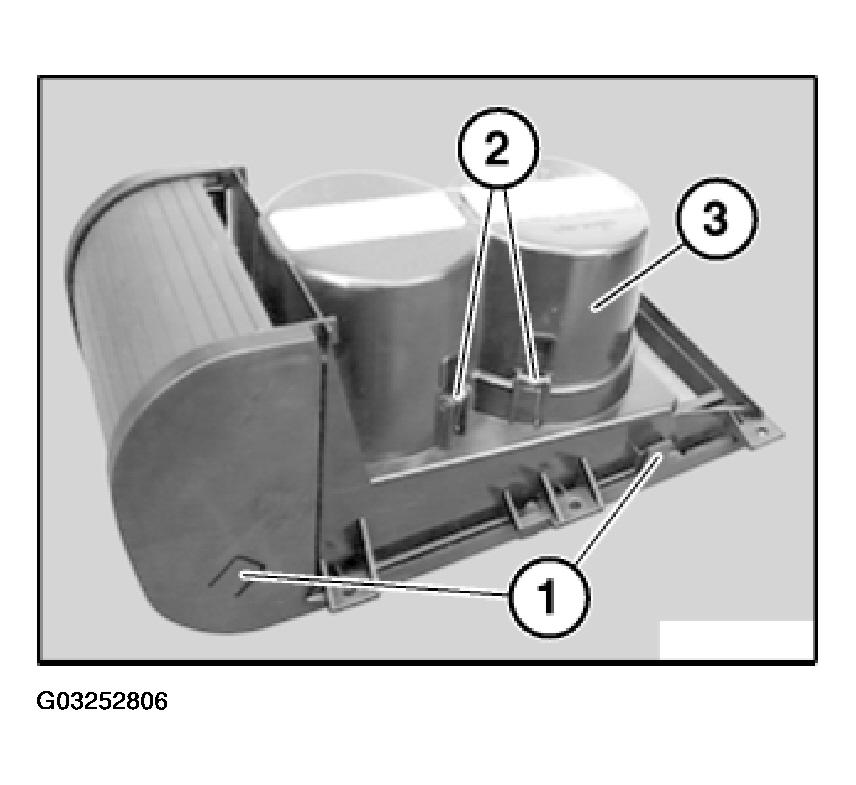

Fig 2: Checking Springs On Cup Holder

Courtesy of BMW OF NORTH AMERICA, INC.
