51 16 220 Replacing trims for center console: Notes
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

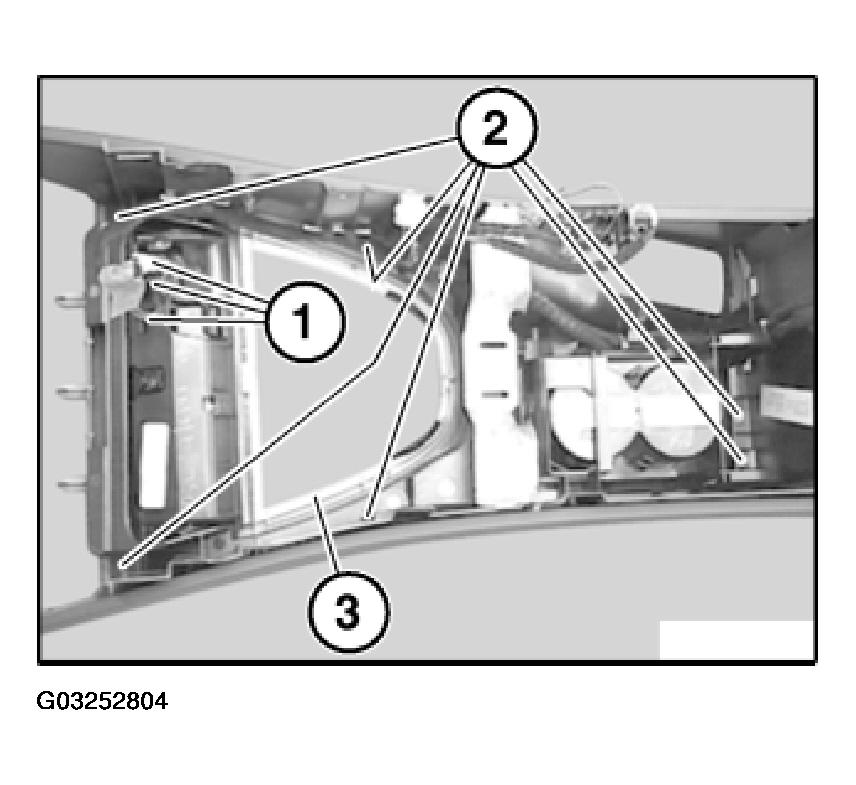

Remove oddments tray.
Disconnect plug connection (1).
Release screws (2).
Remove base (3) for center console and place on a clean surface.
Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
The operation "Removing base for center console" ends here.
