51 16 210 Removing and installing/replacing trim for preselector knob

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Apply handbrake and move preselector knob (1) max. to rear (risk of damage to interior mirror).

Do not twist preselector knob (1) when removing; otherwise turning lock in knob (1) will be sheared off.

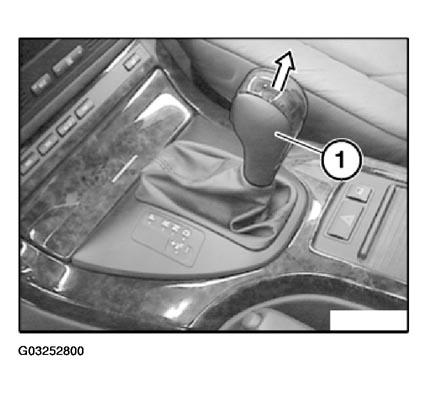

Pull off preselector knob (1) with a forceful jerk.

Installation:

Fit preselector knob (1) onto selector lever, align and press down until it can be felt to snap into place.

Fig 1: Fitting Preselector Knob Onto Selector Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

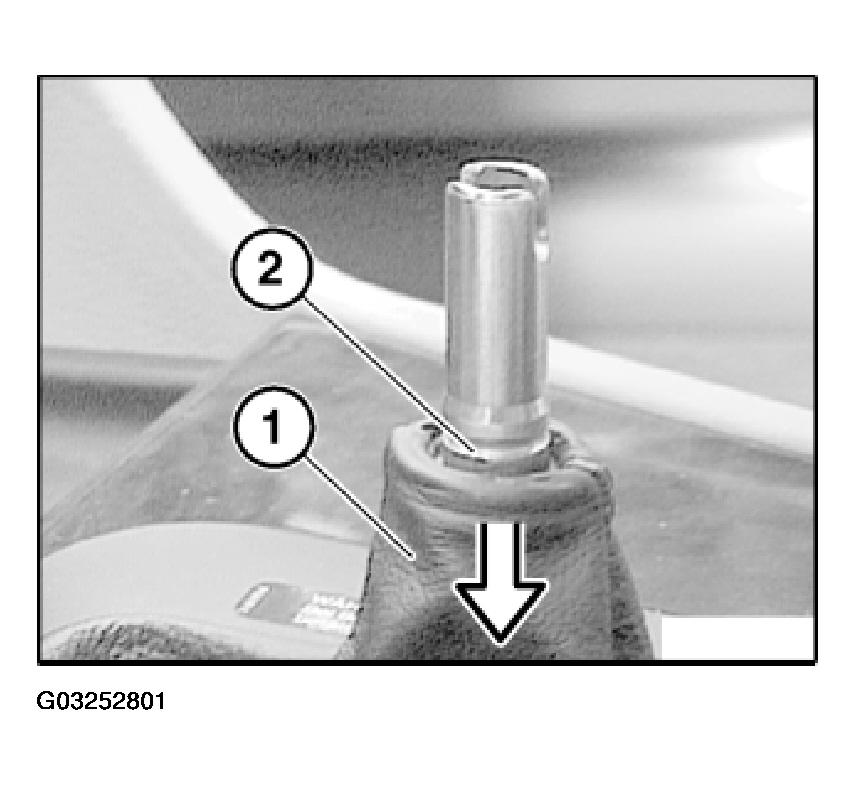

Push rubber gaiter (1) down until groove (2) is fully exposed.

Fig 2: Pushing Rubber Gaiter Down

Courtesy of BMW OF NORTH AMERICA, INC.

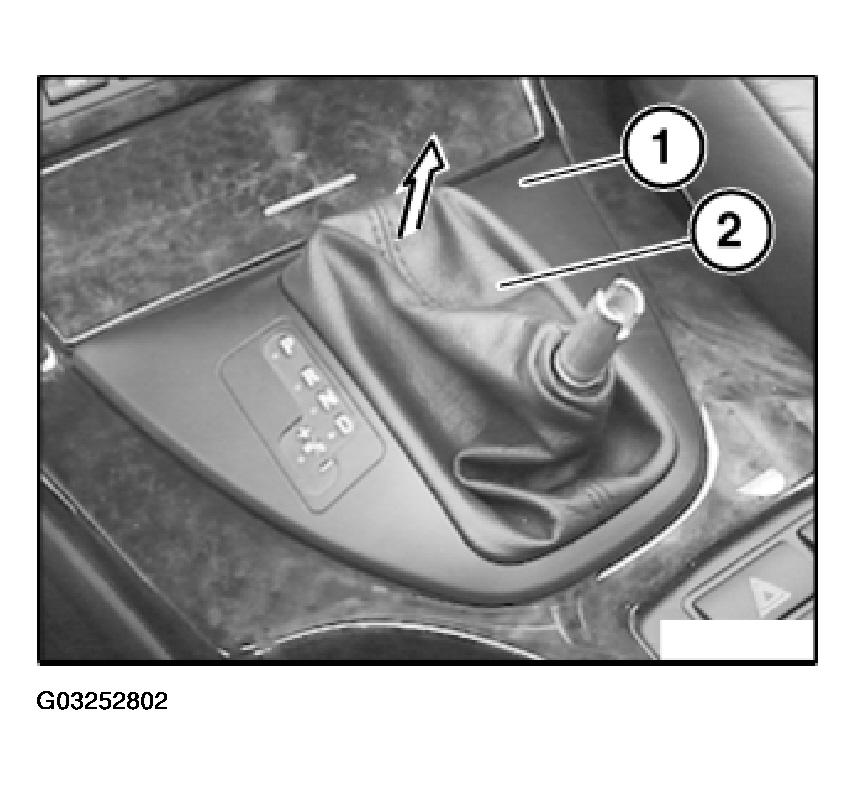

Remove trim (1) with rubber gaiter (2) from center console.

Fig 3: Removing Trim With Rubber Gaiter From Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

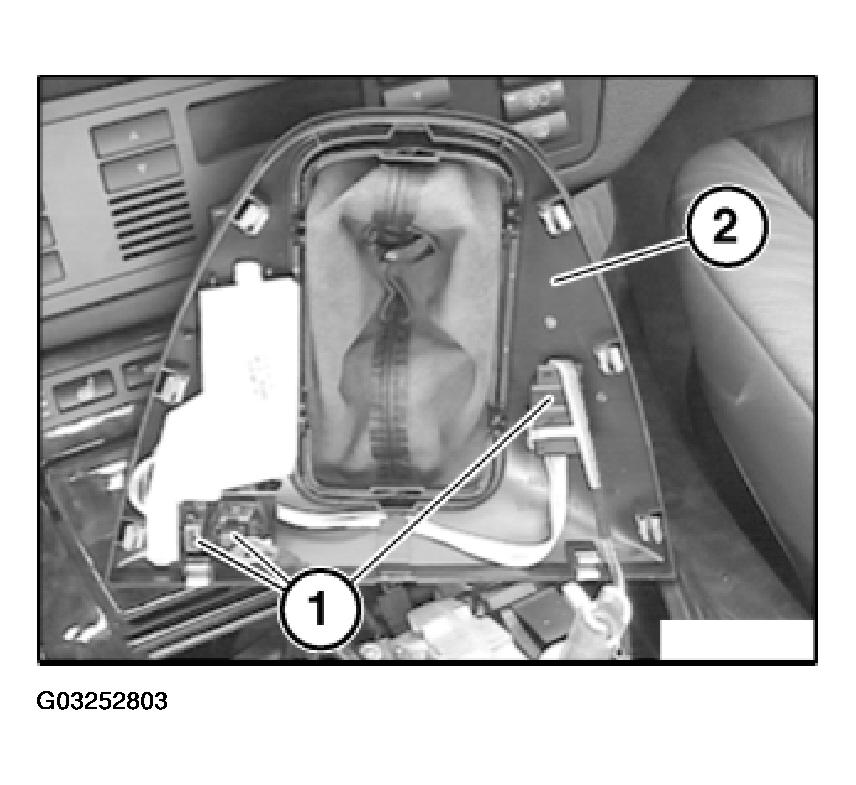

Disconnect plug connections (1) and remove trim (2).

Fig 4: Disconnecting Plug Connections And Remove Trim

Courtesy of BMW OF NORTH AMERICA, INC.
