Removal Of Versions (C) And (D):

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

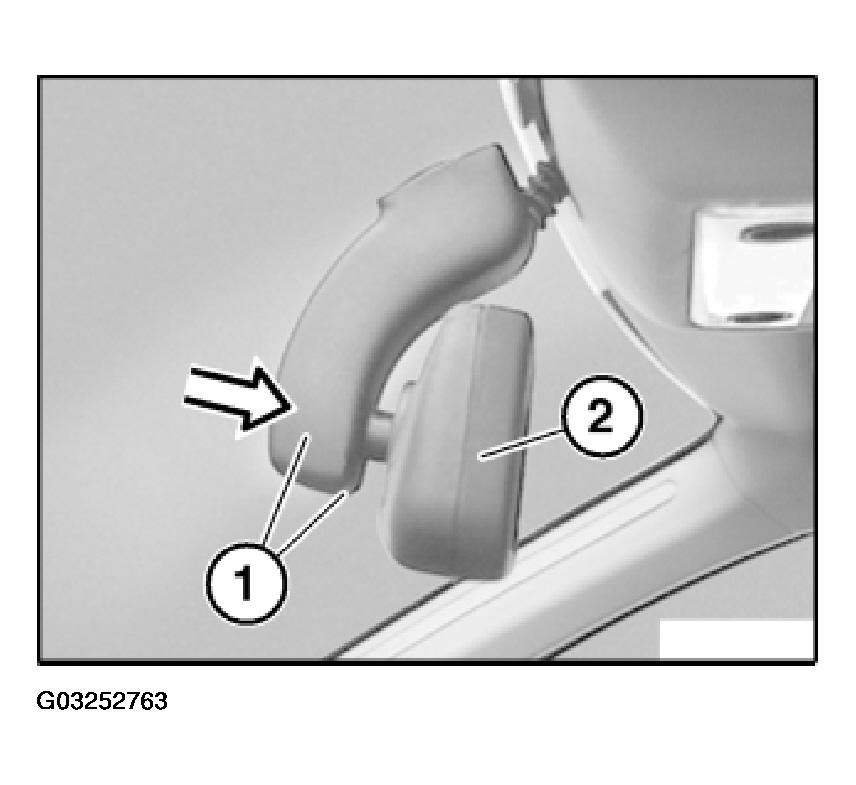

Press end caps (1) towards mirror housing (2); this releases clip connection of both caps (1).

Fig 1: Pressing End Caps Towards Mirror Housing

G03252763

Courtesy of BMW OF NORTH AMERICA, INC.

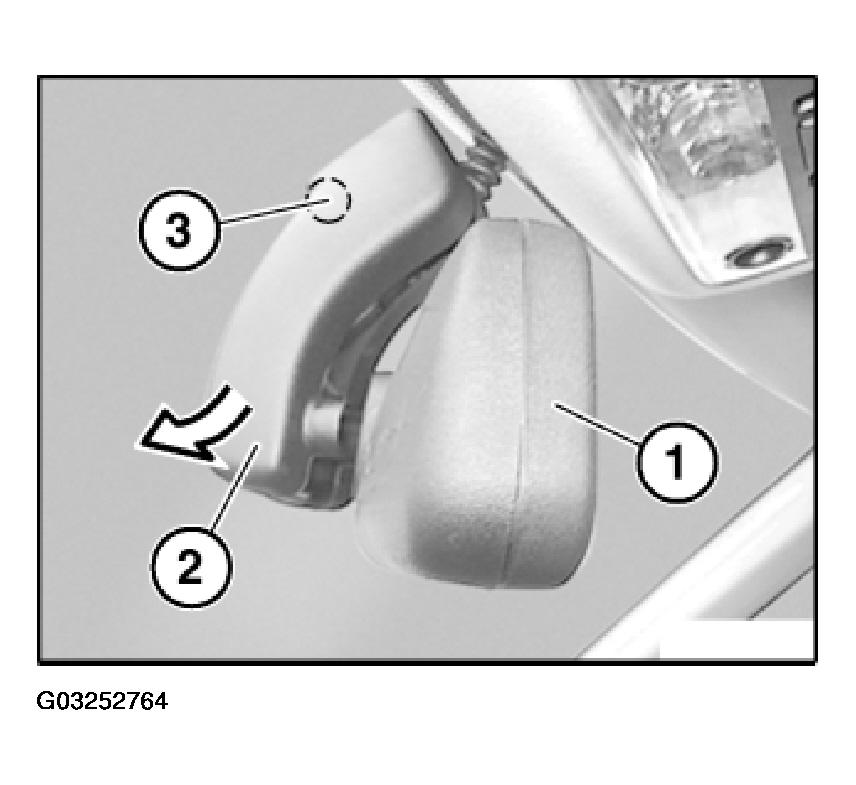

Twist mirror (1) at an angle towards front and right/top.

Swivel left end cap (2) off ball neck in direction of arrow; this detaches the engagement clip (3) from the metal foot.

Fig 2: Twisting Mirror At An Angle Towards Front And Right/Top

G03252764

Courtesy of BMW OF NORTH AMERICA, INC.

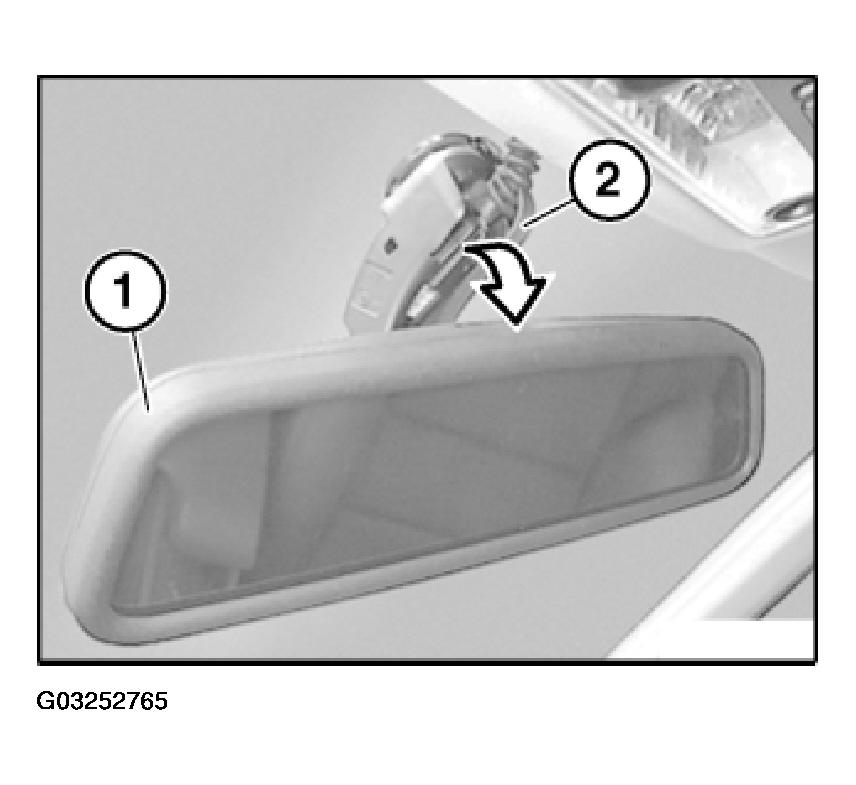

Twist mirror (1) at an angle towards front and left/top.

Swivel right end cap (2) off ball neck in direction of arrow; this detaches the engagement clip from the metal foot.

Fig 3: Detaching Engagement Clip From Metal Foot

G03252765

Courtesy of BMW OF NORTH AMERICA, INC.

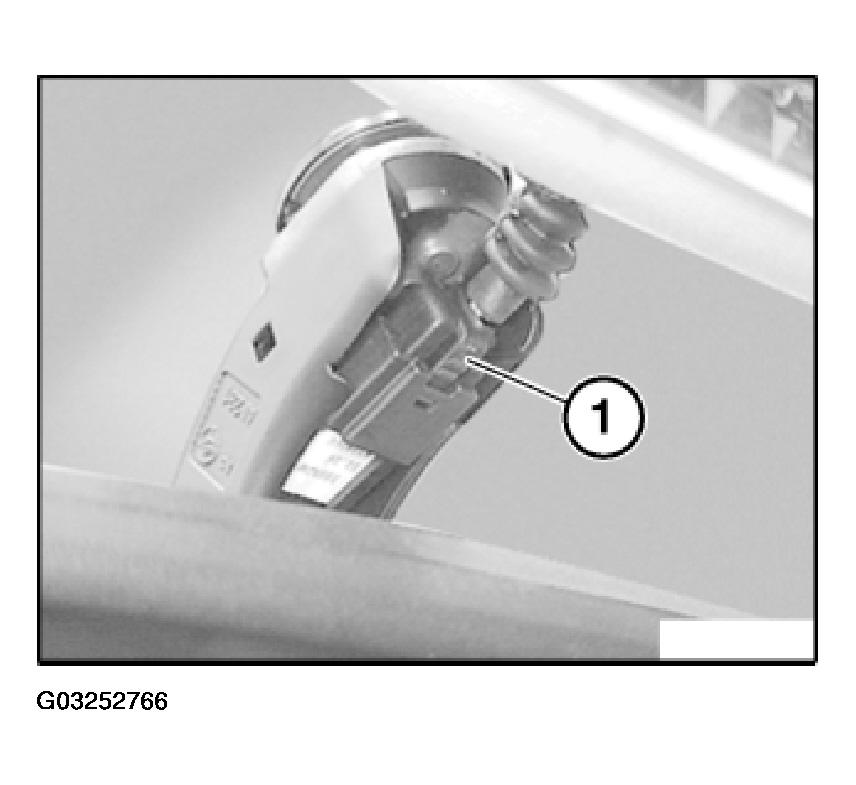

Disconnect plug connection (1).

Fig 4: Disconnecting Plug Connection

G03252766

Courtesy of BMW OF NORTH AMERICA, INC.

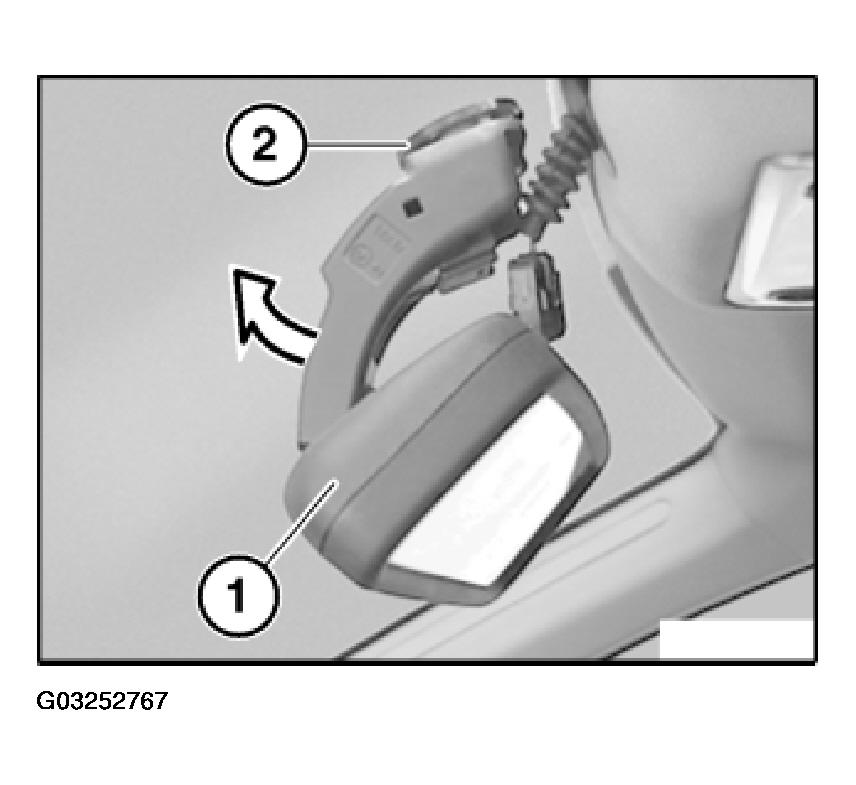

IMPORTANT: Do not remove interior mirror (1) towards rear or by twisting (risk of damage).

Snap out interior mirror (1) from mirror mount (2) towards front by striking with ball of thumb and remove.

Fig 5: Snaping Out Interior Mirror From Mirror Mount Towards Front

G03252767

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

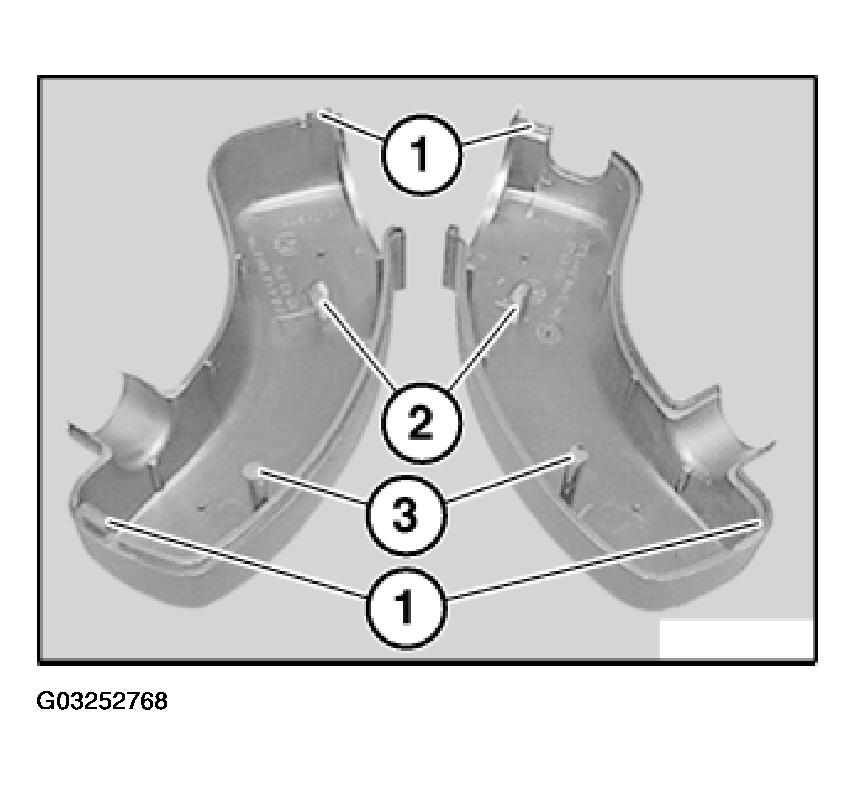

Clips (1) and retaining hooks (2) of end caps (3) must not be damaged, replace if necessary.

Fig 6: Checking Clips And Retaining Hooks Of End Caps

G03252768

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

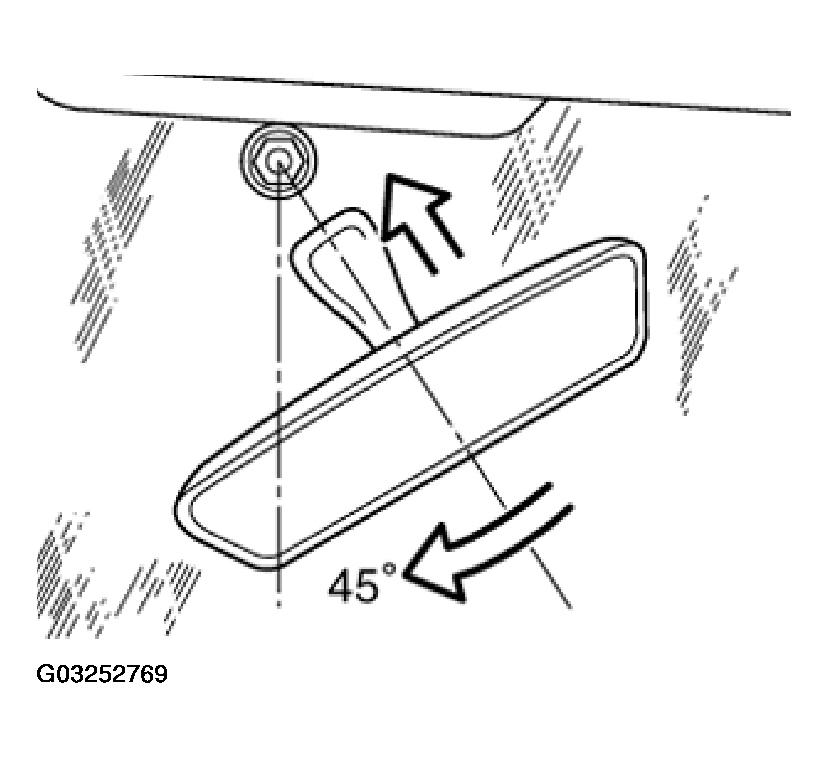

Twist mirror foot by approx. 45° and fit to mirror mount.
Turn mirror foot until it engages on mirror base.

Fig 7: Turning Mirror Foot Until It Engages On Mirror Base
Courtesy of BMW OF NORTH AMERICA, INC.
